TRANSTIG 170Pi
Manual 0-5242 8-5
ASSEMBLY PROCEDURE
8.05 Installing Cover Panel
1. Install Cover Panel.
2. Install the twelve screws securing Cover Panel., 8 on Cover Panel, 2 on Front Panel and 2 on Rear
Panel.
2
2
2
Art # A-11836
1

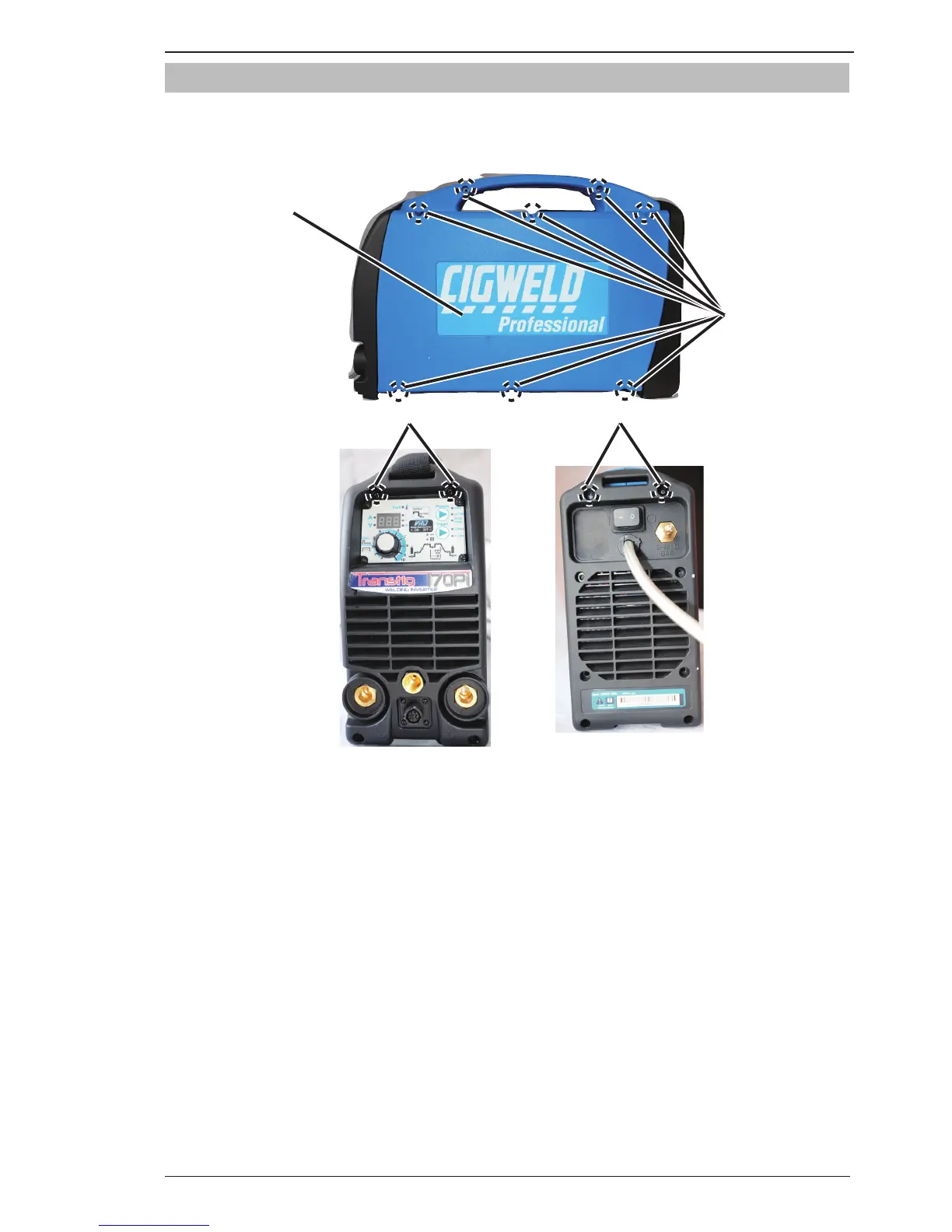

Figure 8-5: Installing Cover Panel
