TRANSTIG 170Pi
Manual 0-5242 6-17
TROUBLESHOOTING
6.12 DIP Switch Settings, Control PCB
1. DIP Switch SW1, control PCB
Art # A-11821

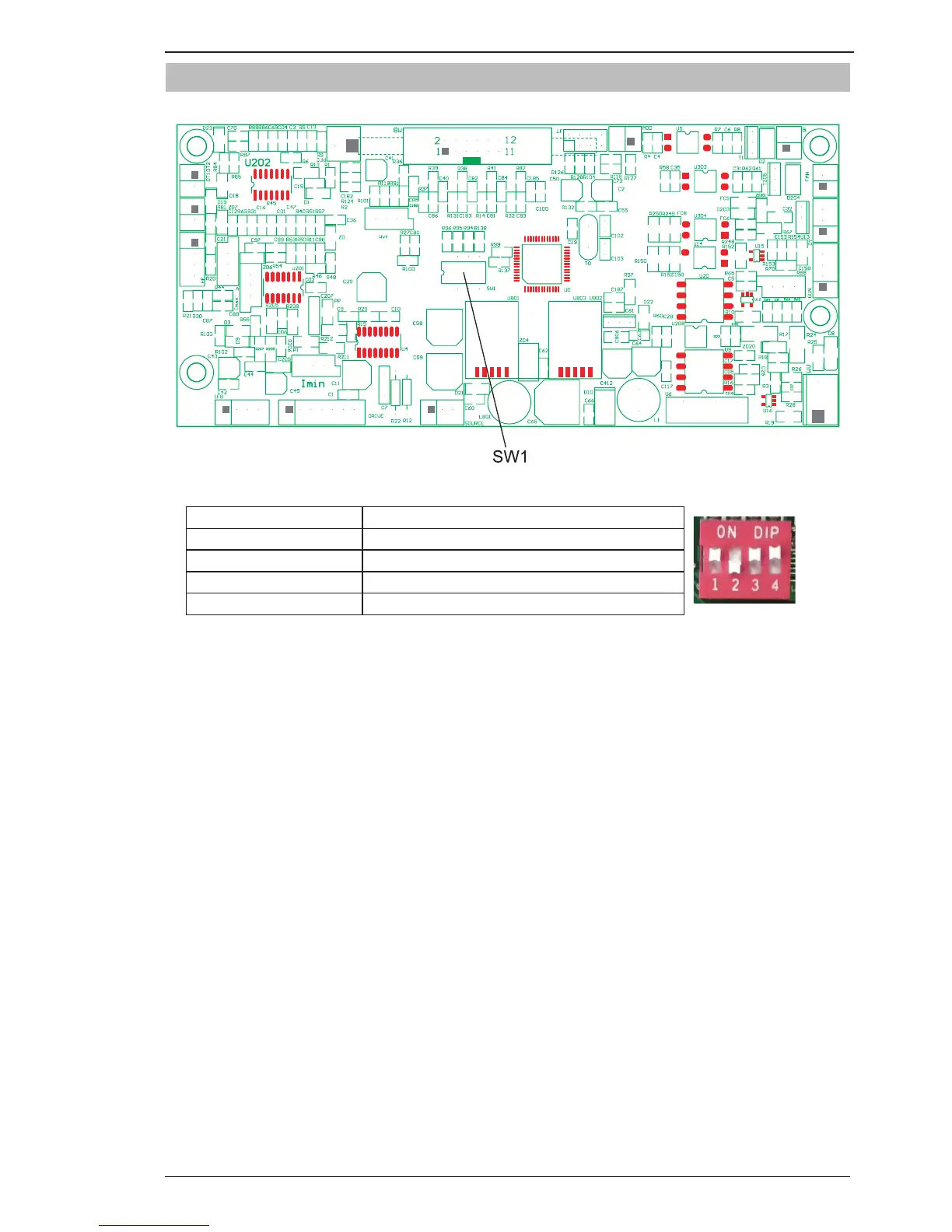

Figure 6-11: DIP Switch SW1, control PCB
Table 6-36: SW1 Dip Switch functions
SW1 position Function
1 Set to ON for Transtig 170Pi
2 Set to OFF for Transtig 170Pi
3 Set to ON for Transtig 170Pi
4 Set to ON for Transtig 170Pi
