TRANSTIG 170Pi
Manual 0-5242 7-5
DISASSEMBLY PROCEDURE
Art # A-11819

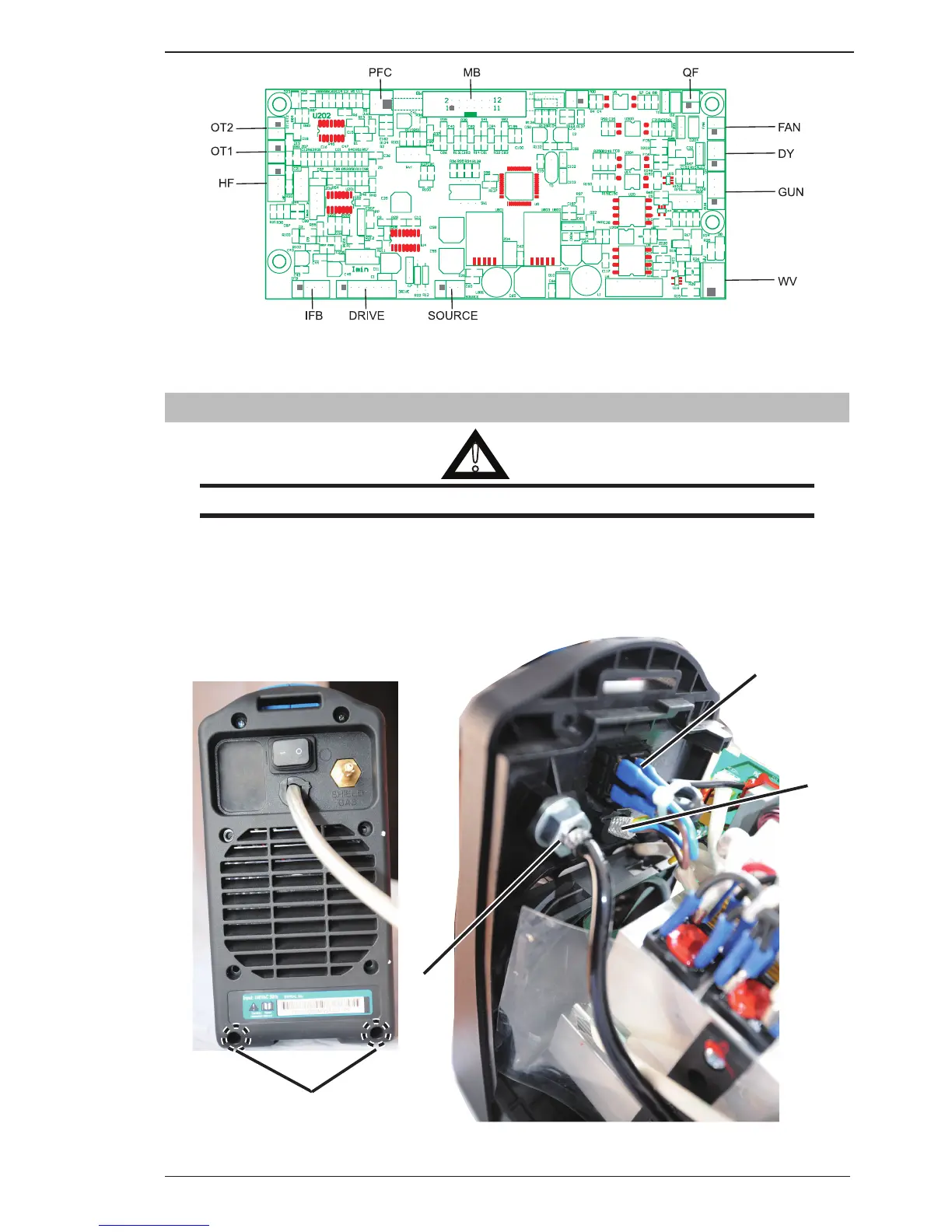

Figure 7-5: Control PCB
7.06 Rear Panel Removal
!
WARNING
Read and follow safety information in Section 6.04 before proceeding.
1. Remove the two screws at the bottom of Rear Panel.
2. Disconnect the ON/OFF switch wires from Inverter PCB.
3. Disconnect the ground harness from Inverter PCB.
4. Disconnect the gas hose from Rear Panel.
1
2
3
4
Art # A-11828
Figure 7-6: Rear Panel Removal
To Next Page
