CIGWELD 170Oi - Installing Rear Panel

TRANSTIG 170Pi
ASSEMBLY PROCEDURE 8-2 Manual 0-5242
8.02 Installing Rear Panel
1. Install ON/ OFF Switch.
2. Install Input Power Cord.
3. Reconnect the four wires to Rear Panel.
4. Reconnect Ground harness to Rear Panel.
5. Reconnect Gas Hose to Rear Panel.
6. Install Fan.
7. Reconnect the ON/OFF switch wires to Inverter PCB.
8. Reconnect Ground harness to Inverter PCB.
9. Tighten the two screws securing Rear Panel.
9
2
4
5
Art # A-11833
1
3
6

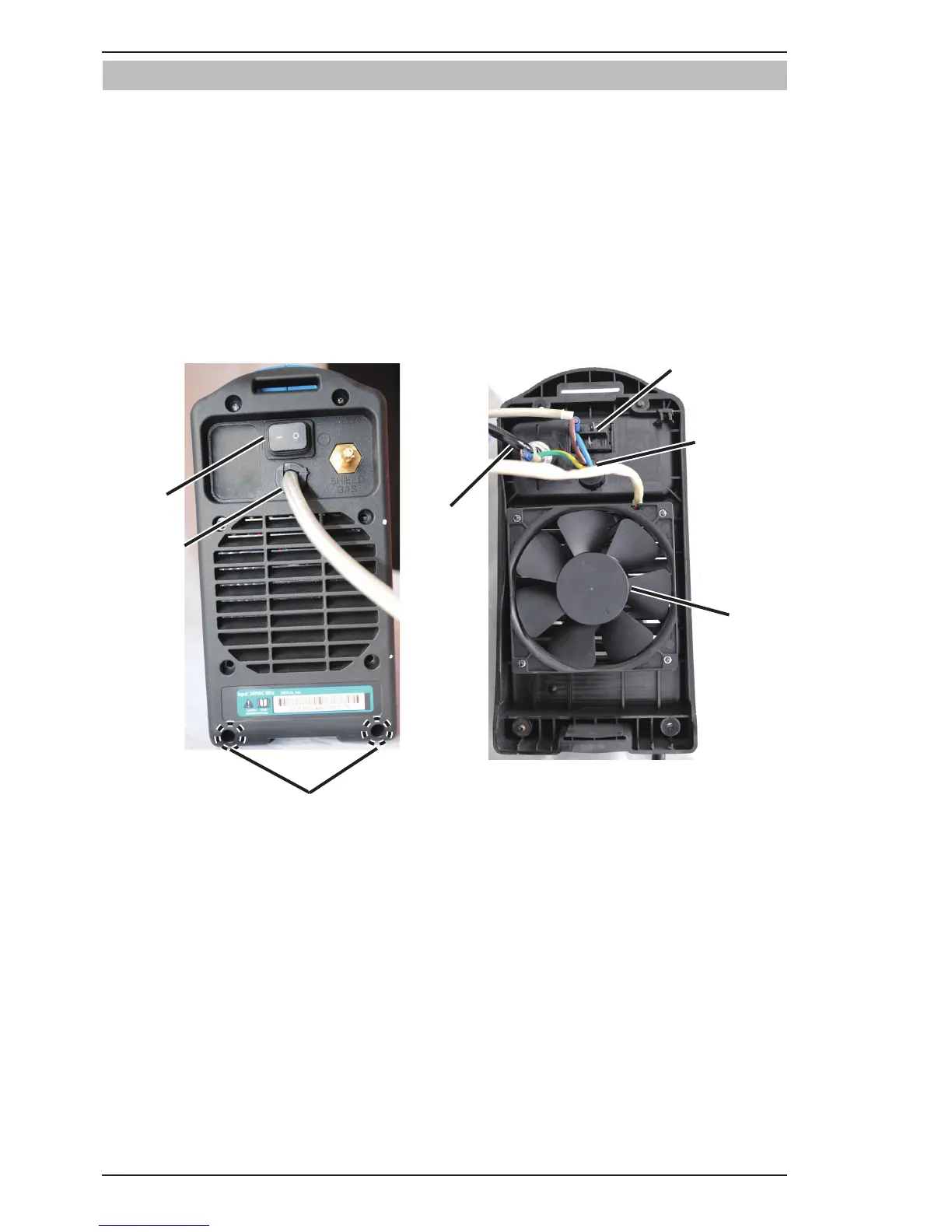

Figure 8-2: Installing Rear Panel
