CIGWELD 170Oi - ON;OFF Switch and Power Cord Removal

TRANSTIG 170Pi
DISASSEMBLY PROCEDURE 7-6 Manual 0-5242
7.07 ON/ OFF Switch and Power Cord Removal
!
WARNING
Read and follow safety information in Section 6.04 before proceeding.
1. Disconnect the four wires from Rear Panel.
2. ON/ OFF Switch
3. ON/ OFF switch locking tabs
Squeeze the locking tabs and push ON/ OFF switch out from Rear Panel.
4. Input Power Cord
5. Disconnect the ground harness from Rear Panel.
Squeeze the locking tabs s and pull out the Input Power Cord.
6. Remove the fan.
Art # A-11829
6
2
4
5
3
1

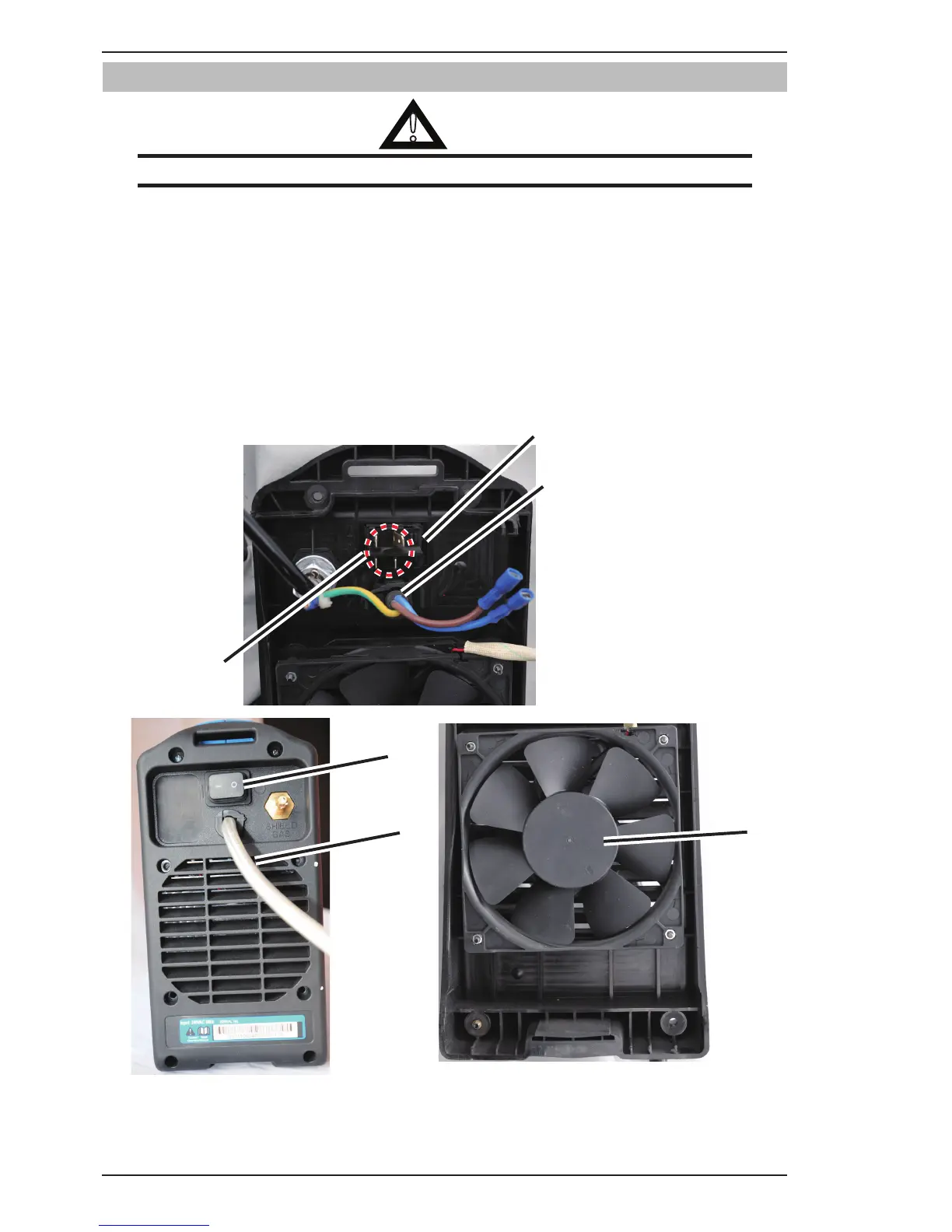

Figure 7-7: ON/ OFF Switch and Power Cord Removal
