CIGWELD 170Oi - Base Panel Removal

TRANSTIG 170Pi
DISASSEMBLY PROCEDURE 7-8 Manual 0-5242
7.09 Base Panel Removal
!
WARNING
Read and follow safety information in Section 6.04 before proceeding.
1. Inverter PCB.
2. Remove the four screws and remove Inverter PCB.
3. Remove Base Panel.
1
2
3
Art # A-11831

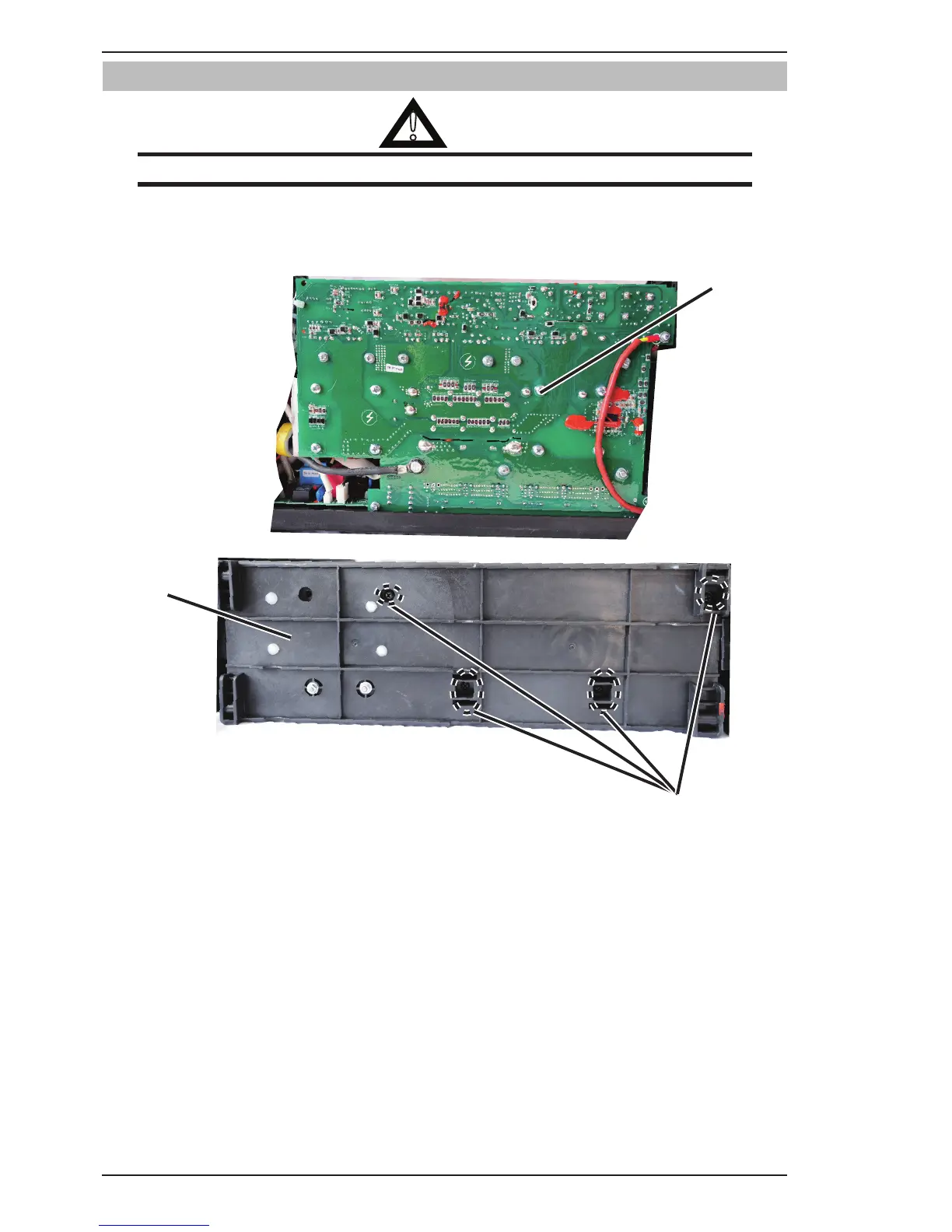

Figure 7-9: Base Panel Removal
