CIGWELD 170Oi - Foot Control Part No. W4015800 (Optional Accessory)

TRANSTIG 170Pi
Manual 0-5242 4-15 OPERATION
A-11666

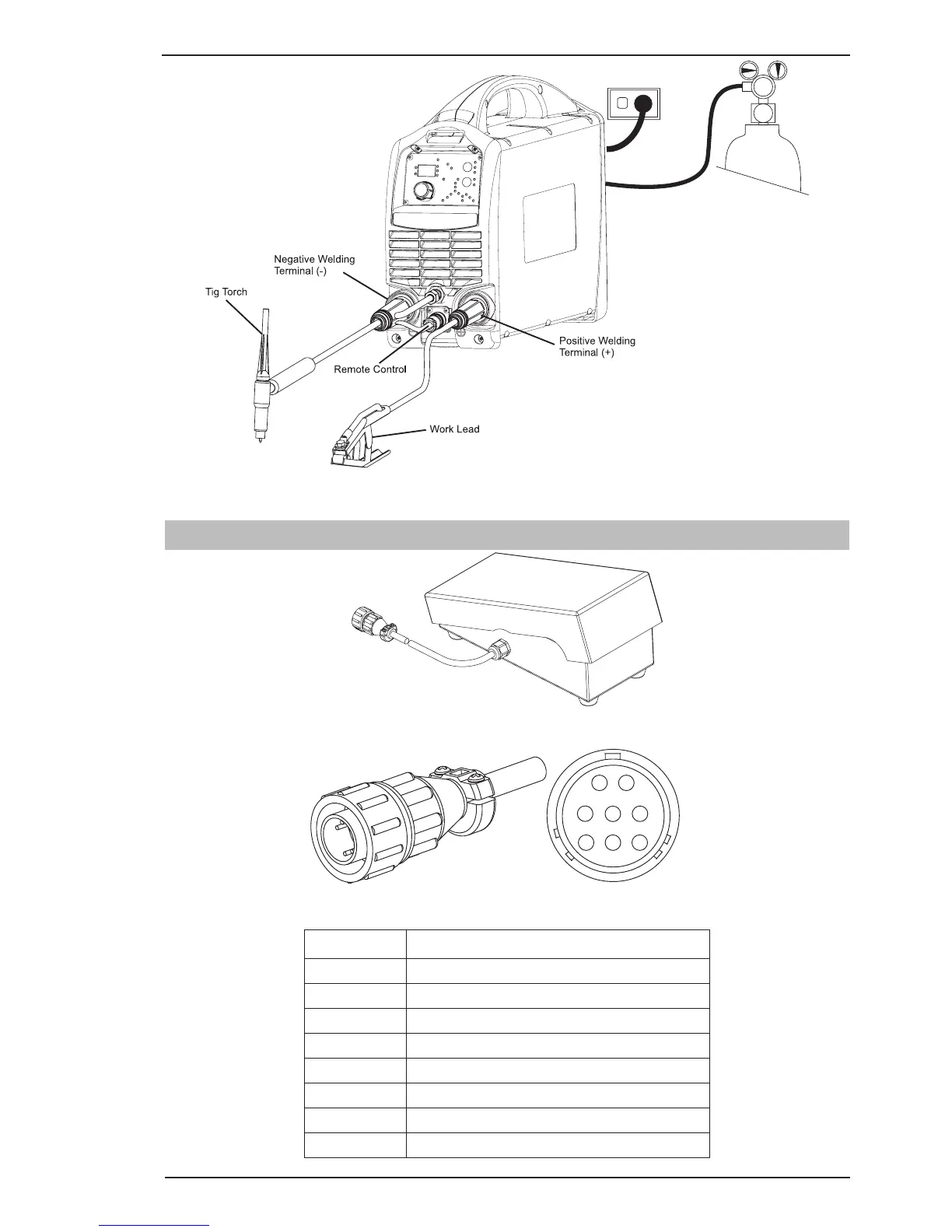

Figure 4-7: Setup for TIG Welding
4.04 Foot Control Part No. W4015800 (Optional Accessory)
Art # A-11338
Figure 4-8: Foot Control
Art # A-11339
1
2
345
6
7
8
Art # A-11340
Figure 4-9: 8 Pin Control Plug
Pin Description
1 Not Used
2 Trigger Switch
3 Trigger Switch
4 Not Used
5 Potentiometer Maximum
6 Potentiometer Minimum
7 Potentiometer Wiper
8 Not Used
Table 4-2
