CIGWELD 170Oi - HF PCB Removal

TRANSTIG 170Pi
Manual 0-5242 7-7 DISASSEMBLY PROCEDURE
7.08 HF PCB Removal
!
WARNING
Read and follow safety information in Section 6.04 before proceeding.
1. Remove the 4 plastic umbrella-shape screws securing HF PCB.
2. Remove Ground harness from HF PCB.
2. Disconnect SOUHF harness from HF PCB.
3. Disconnect 110V/ 220V input harness from HF PCB.
4. Disconnect Coil harness from HF PCB.
1
2
3
4
5
Art # A-11830

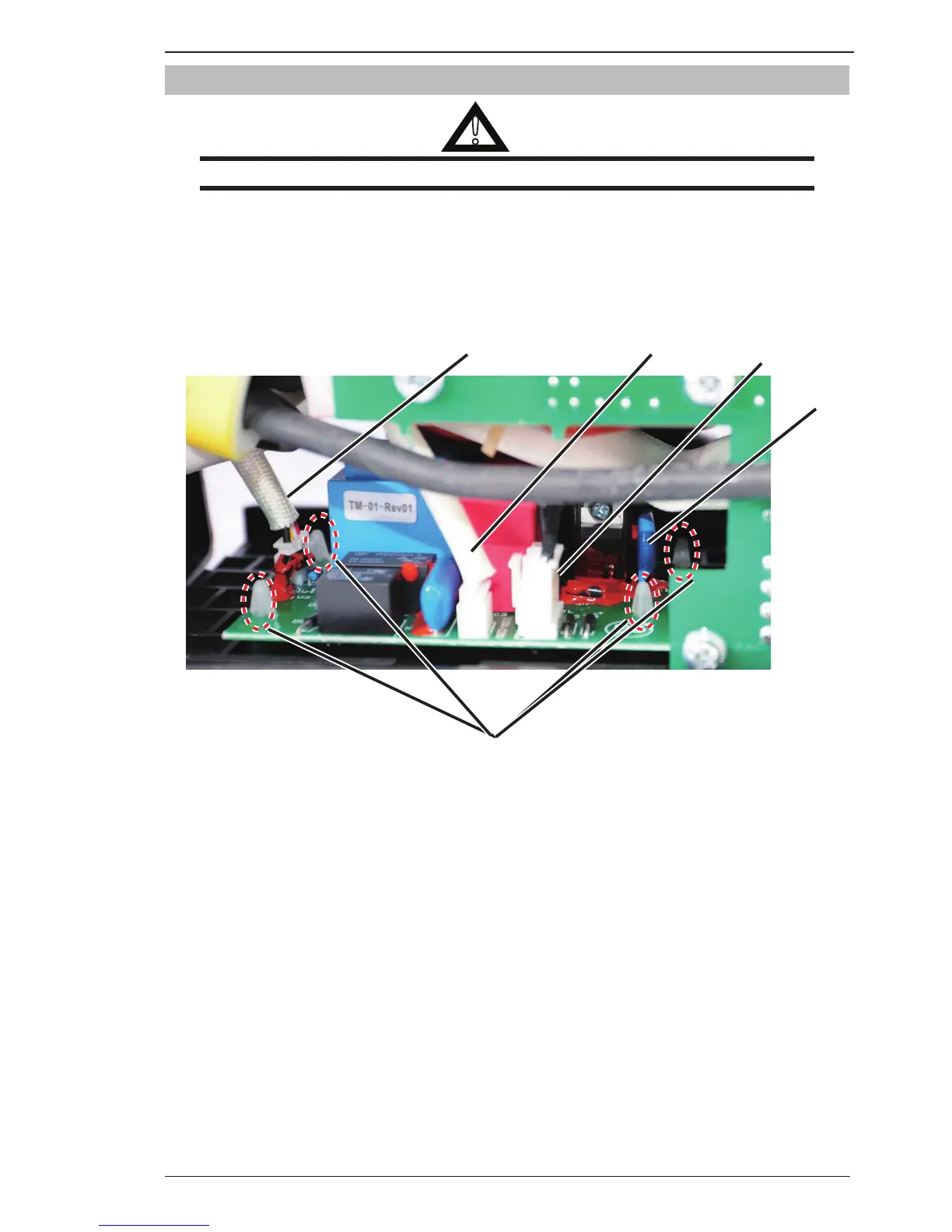

Figure 7-8: HF PCB Removal
