CIGWELD 170Oi - THEORY OF OPERATION; Inverter Design

TRANSTIG 170Pi
Manual 0-5242 5-1 INTRODUCTION
SECTION 5:
THEORY OF OPERATION
5.01 Inverter Design
What does the word inverter mean?
The term inverter refers to the ability to change DC power into AC. Inverter power supplies immediately rectify
the incoming AC to DC, and then the transistors create a higher frequency AC. The higher frequency AC then
goes on to a much smaller main transformer than in a conventional power supply. The AC is then rectified

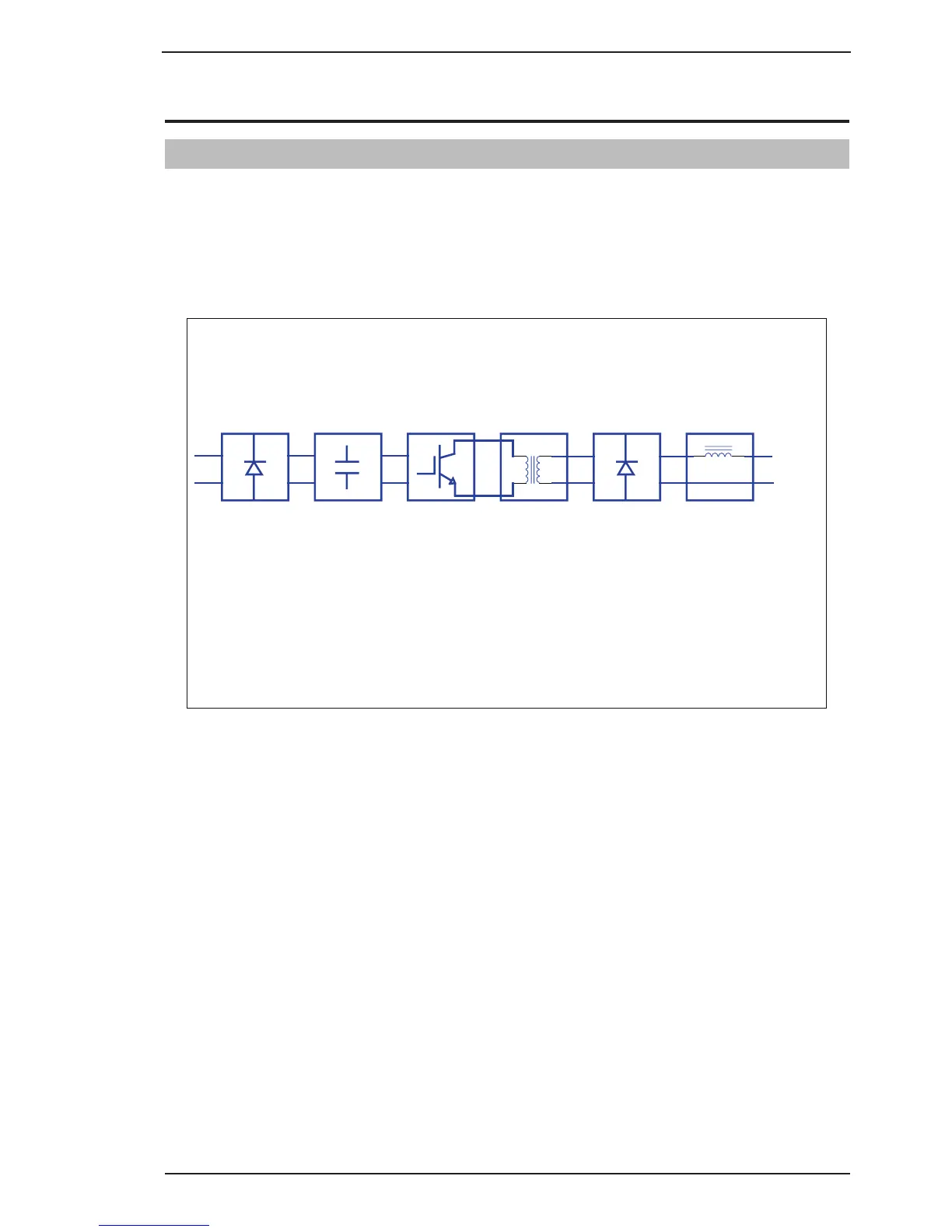

to extremely smooth DC. The diagram to the below shows the basic electrical wiring of a DC output inverter
power supply.
Inverter Technology - Summary
Rectifier Filter IGBT Transformer Rectifier Inductor
AC-50/60Hz DC-Rippled DC-Smooth AC-23KHz AC-23KHz DC- Rippled DC-Smooth
High Vo ltage High Vo ltage High voltage High Voltage Low Vo ltage Low Voltage Low Vo ltage
Low Amperage Low Amperage Low Amperage Low Amperage High Amperage High Amperage High Amperage
Art # A-09846
