3.3.- DEVICE TERMINALS
Table 4:List of terminals of the DHC-96 Aac�
Device terminals
1 : L, Auxiliary power supply. 31: Alarm output 2, relay (Common)
2: N, Auxiliary power supply. 32: Alarm output 2, relay (NO)
4: Current measurement input 58: A, RS-485
5: Current measurement input 59: B, RS-485
15: -, Analog output
70: Common digital input
16: +, Analog output
71: Digital input 1
28: Alarm output 1, relay (Common) 72: Digital input 2
29: Alarm output 1, relay (NO)
4
70
59
71
1 2
28 29
31
32
1
2
5
72
58
28
29
31
32 1615
15 16
71 72
70
59
58
5
4

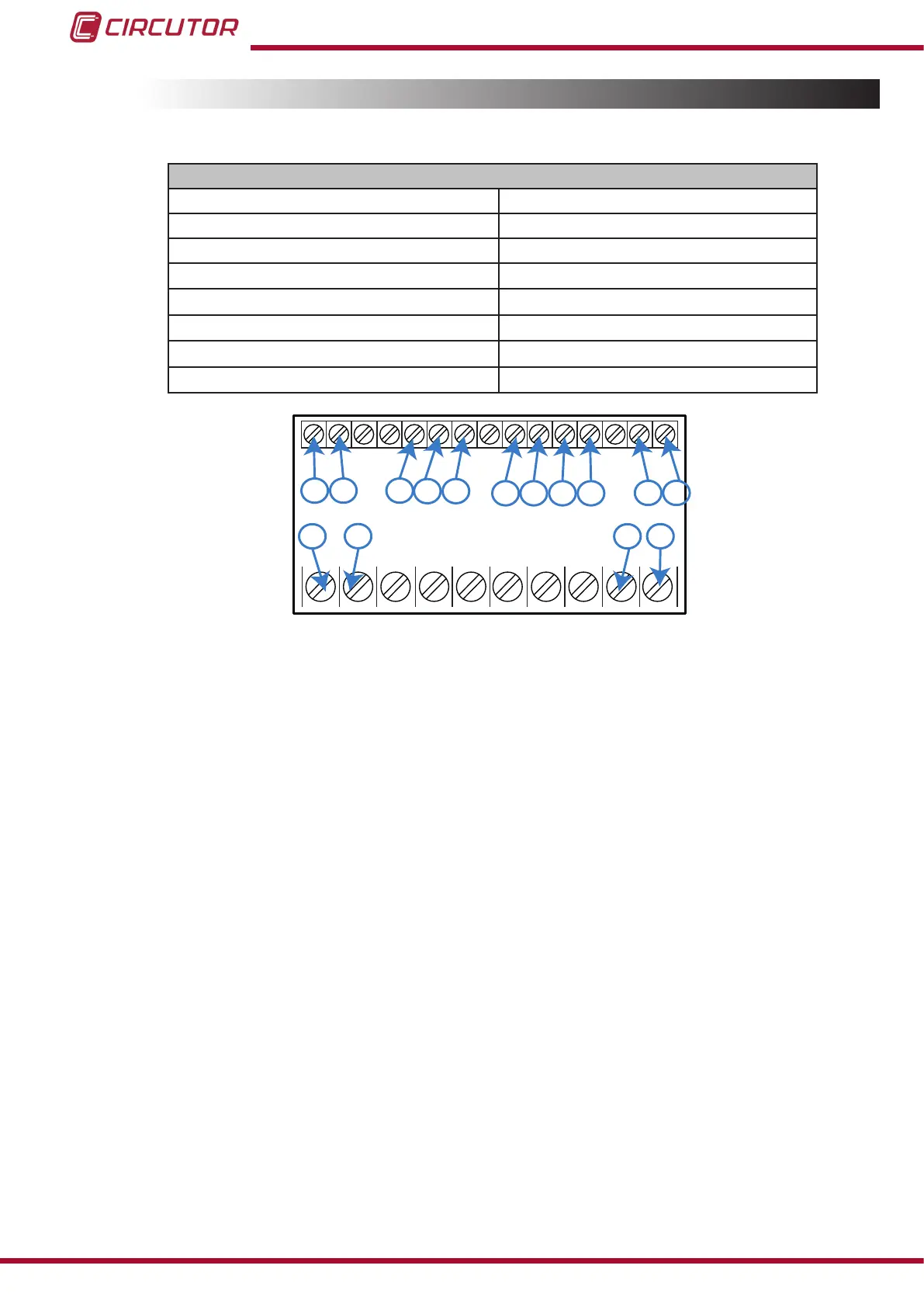

Figure 3:Terminals of the DHC-96 Aac�
Note: Before disconnecting the current measurement connection cables, make sure that you
disconnect the transformer’s primary cable and bridge the secondary.
