SAuE
no
Use the ,key to browse the different options:
no, exit the conguration without saving the changed values.
YES, save the changed conguration values.
Press the key to validate the data and exit the conguration menu.
5.3.- ANALOG OUTPUT

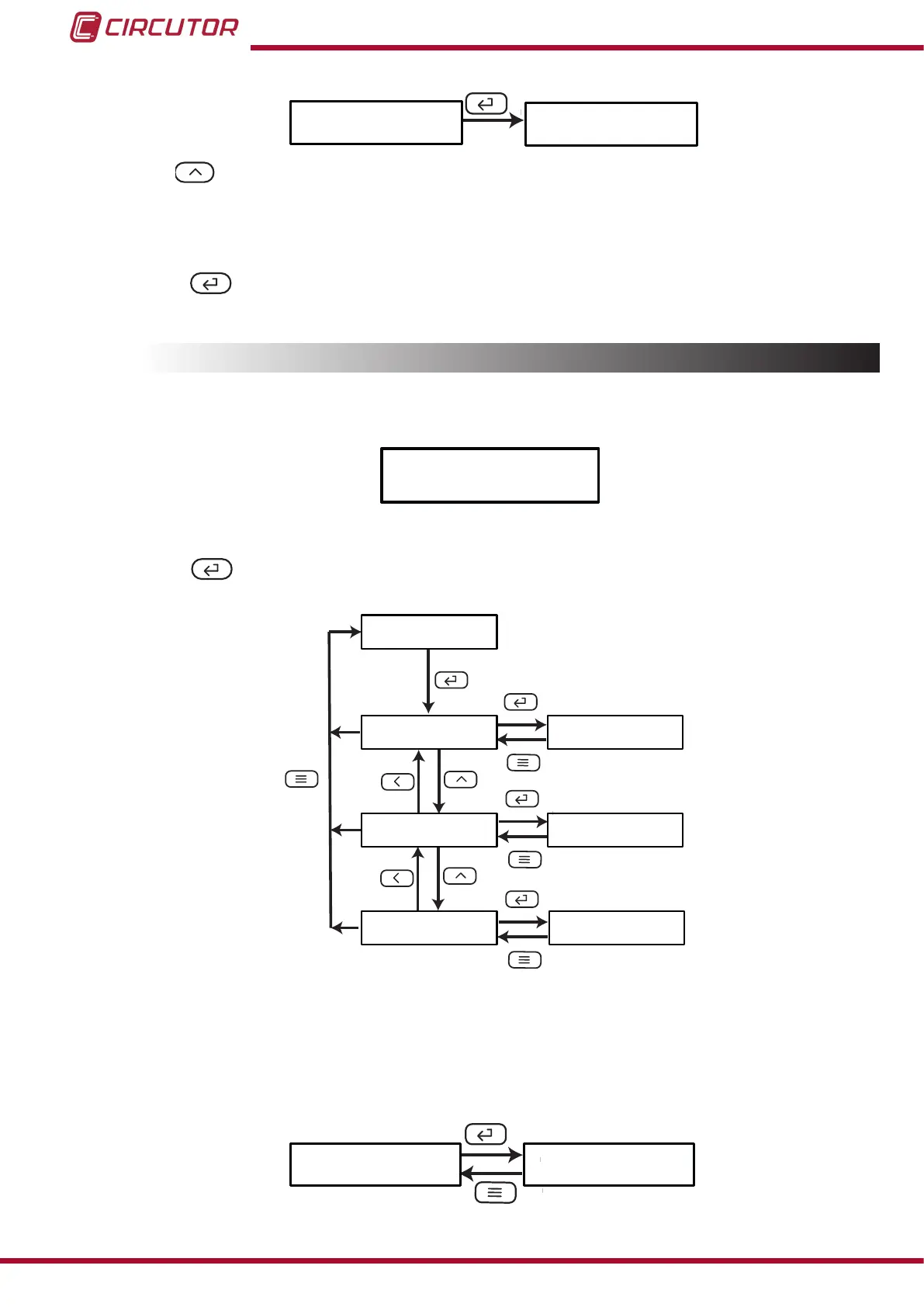

Figure 14, shows the main screen of the analog output menu.
A0-1
Figure 14: Analog output menu, main screen�
Press the key to open the conguration menu.
A0-1
nodE
ds
FS
4-20
-
0.000
5.000
Figure 15:Analog output menu�
5�3�1�- TYPE OF OUTPUT
In this screen the output type of the analog output is congured
nodE 4-20
-
22
DHC-96 Aac
