Chapter 6 Configuring Remote Monitoring (RMON)
Configuring an RMON Alarm

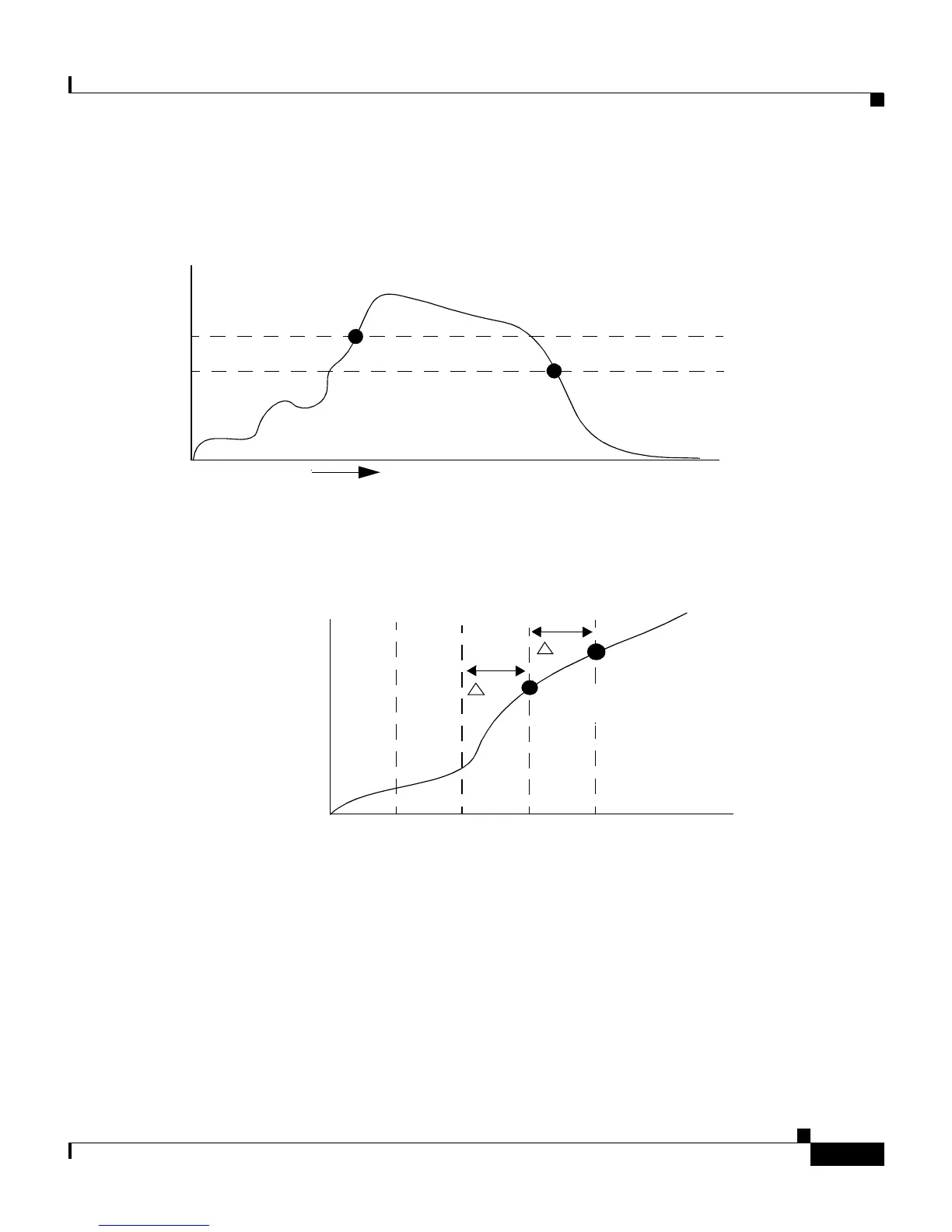

Figure 6-2 is an example of absolute sampling.
Figure 6-2 Example of Absolute Sampling
Figure 6-3 is an example of delta sampling.
Figure 6-3 Example of Delta Sampling
This section includes the following topics:
• RMON Alarm Configuration Quick Start
• Creating an Index for an RMON Alarm
• Deleting an RMON Alarm Index
• Setting the RMON Alarm Attributes
Rising Threshold
Falling Threshold
Sample Value
Sample Interval
Alarm triggered
Rising event generated
Alarm triggered
Falling event generated
49652
20
20
30
40
50
60
Rising Threshold = 20 or more
Falling Threshold = 10 or less
Sample Value
10
Sample Interval
51510
= 10
= 23
Alarm triggered
Rising event generated
Alarm triggered
Falling event generated
49653
