8-34

Cisco Wireless LAN Controller Configuration Guide

OL-17037-01

Chapter 8 Controlling Mesh Access Points

Configuring Advanced Features

Voice Call Support in a Mesh Network

Table 8-6 lists a projected minimum and maximum of voice calls supported by radio type and mesh

access point role (RAP or MAP) for planning purposes.

Using the CLI to View Voice Details for Mesh Networks

Use the commands in this section to view details on voice calls on the mesh network.

Refer to Figure 8-17 when using the CLI commands and viewing their output.

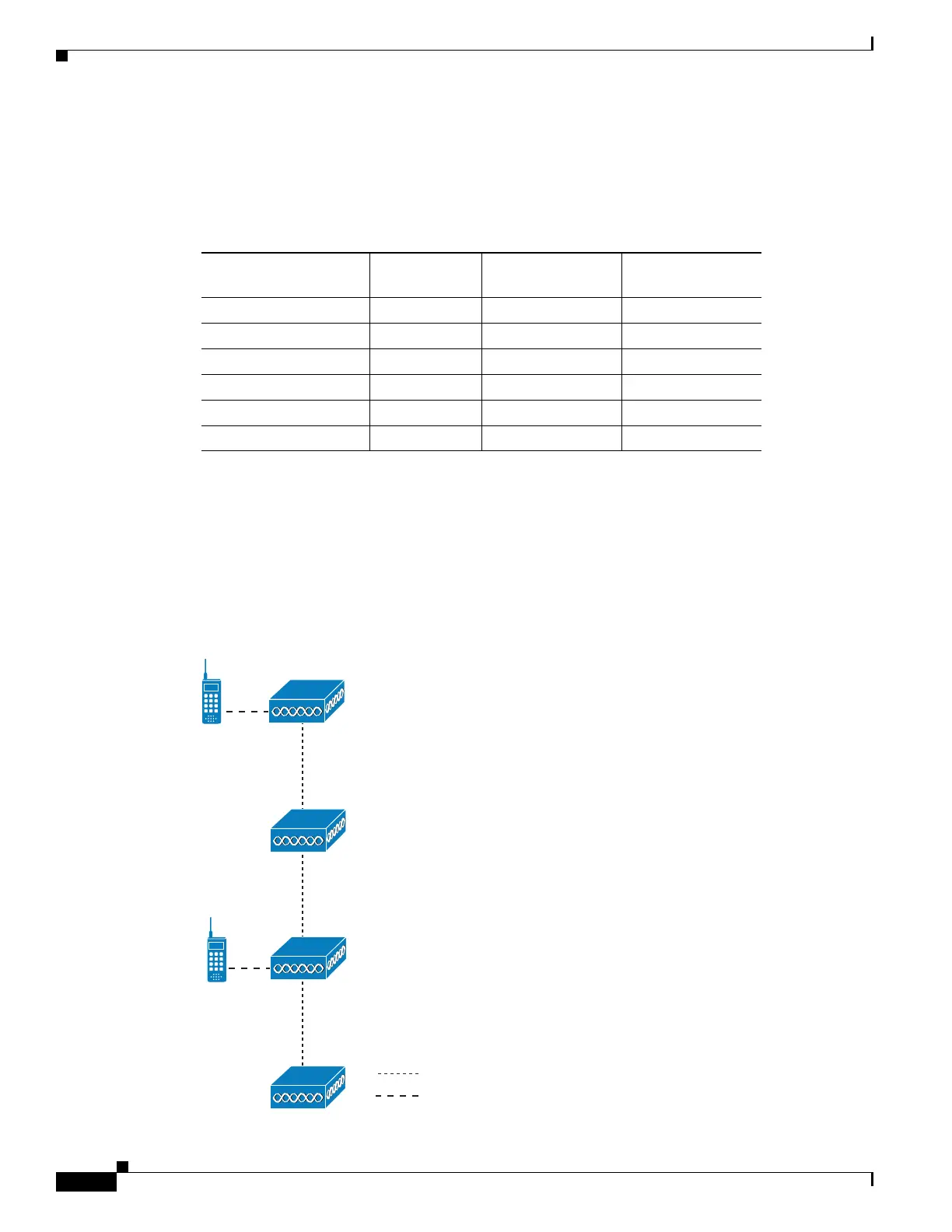

Figure 8-17 Mesh Network Example

Table 8-6 Projected Voice Call Support on a Mesh Network

Mesh Access Point Role Radio

Minimum Calls

Supported

Maximum Calls

Supported

RAP 802.11a 14 18

802.11b/g/n 14 18

MAP1 802.11a 6 9

802.11b/g/n 11 18

MAP2 802.11a 4 7

802.11b/g/n 5 9

1. Bandwidth of 855 transmit units (TUs) with 50% of the bandwidth reserved for voice calls.

2. Bandwidth of 1076 TUs with 50% of the bandwidth reserved for voice calls.

802.11A

802.11B/G

RAP 01

MAP 02

272672

MAP 03

MESH

MAP 01

MESH
