8-47
Cisco Wireless LAN Controller Configuration Guide
OL-17037-01
Chapter 8 Controlling Mesh Access Points
Viewing Mesh Statistics and Reports

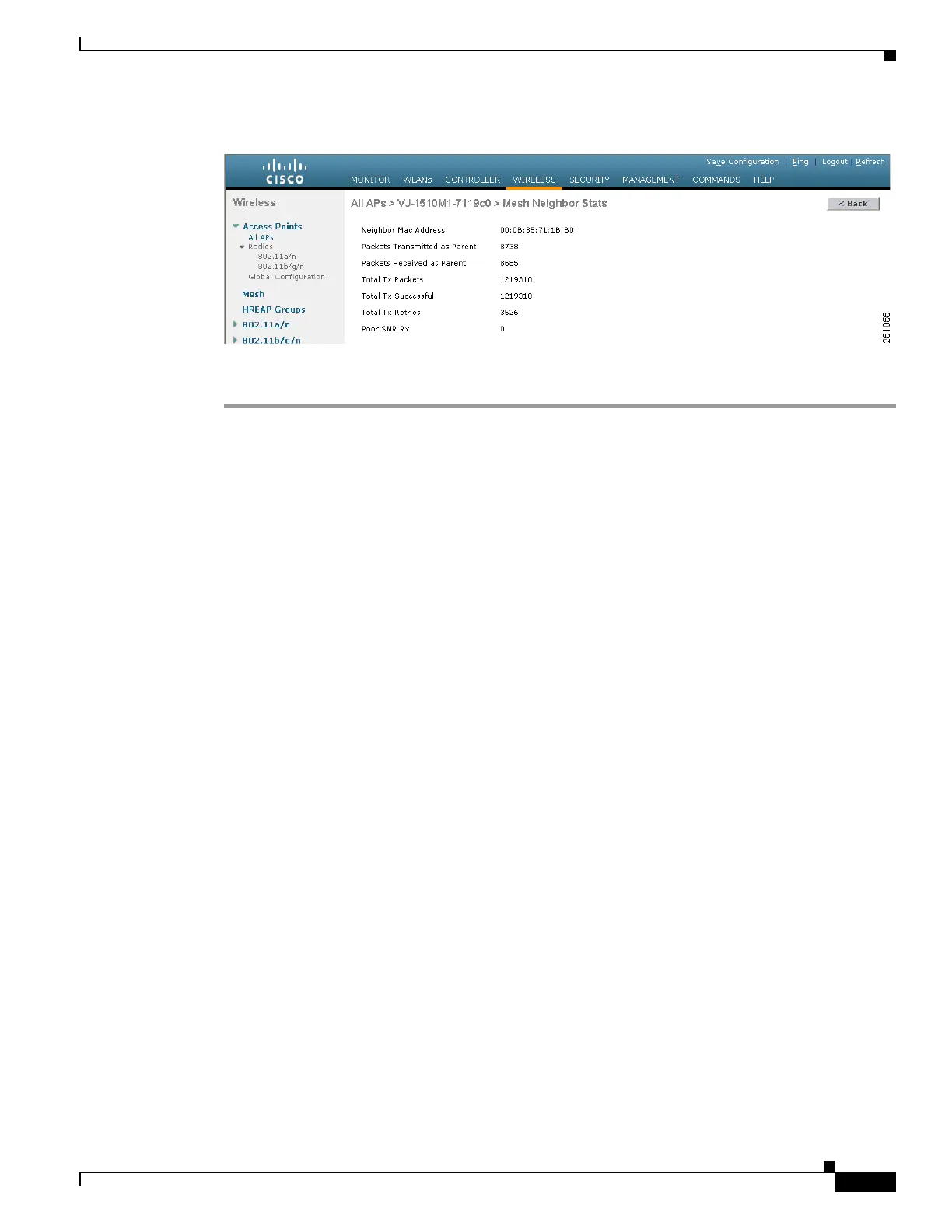

Figure 8-25 All APs > Access Point Name > Mesh Neighbor Stats Page
b.
Click Back to return to the All APs > Access Point Name > Neighbor Info page.
Using the CLI to View Neighbor Statistics for an Access Point
Use these commands to view neighbor statistics for a specific access point.
• To view the mesh neighbors for a specific access point, enter this command:
show mesh neigh {detail | summary} Cisco_AP
Information similar to the following appears when you request a summary display:
AP Name/Radio Mac Channel Snr-Up Snr-Down Link-Snr Flags State
----------------- ------- ------ -------- -------- ------ -------
mesh-45-rap1 165 15 18 16 0x86b UPDATED NEIGH PARENT BEACON
00:0B:85:80:ED:D0 149 5 6 5 0x1a60 NEED UPDATE BEACON DEFAULT
00:17:94:FE:C3:5F 149 7 0 0 0x860 BEACON
• To view the channel and signal-to-noise ratio (SNR) details for a link between an access point and
its neighbor, enter this command:
show mesh path Cisco_AP
Information similar to the following appears:
AP Name/Radio Mac Channel Snr-Up Snr-Down Link-Snr Flags State
----------------- ------- ------ -------- -------- ------ -------
mesh-45-rap1 165 15 18 16 0x86b UPDATED NEIGH PARENT BEACON
mesh-45-rap1 is a Root AP.
• To view the percentage of packet errors for packets transmitted by the neighbor mesh access point,
enter this command:
show mesh per-stats Cisco_AP
Information similar to the following appears:
Neighbor MAC Address 00:0B:85:5F:FA:F0
Total Packets transmitted: 104833
Total Packets transmitted successfully: 104833
Total Packets retried for transmission: 33028
Neighbor MAC Address 00:0B:85:80:ED:D0
Total Packets transmitted: 0
Total Packets transmitted successfully: 0
Total Packets retried for transmission: 0
