Cisco 4400 Series User Manual

10-24
Cisco Wireless LAN Controller Configuration Guide
OL-17037-01
Chapter 10 Managing User Accounts
Configuring Wired Guest Access

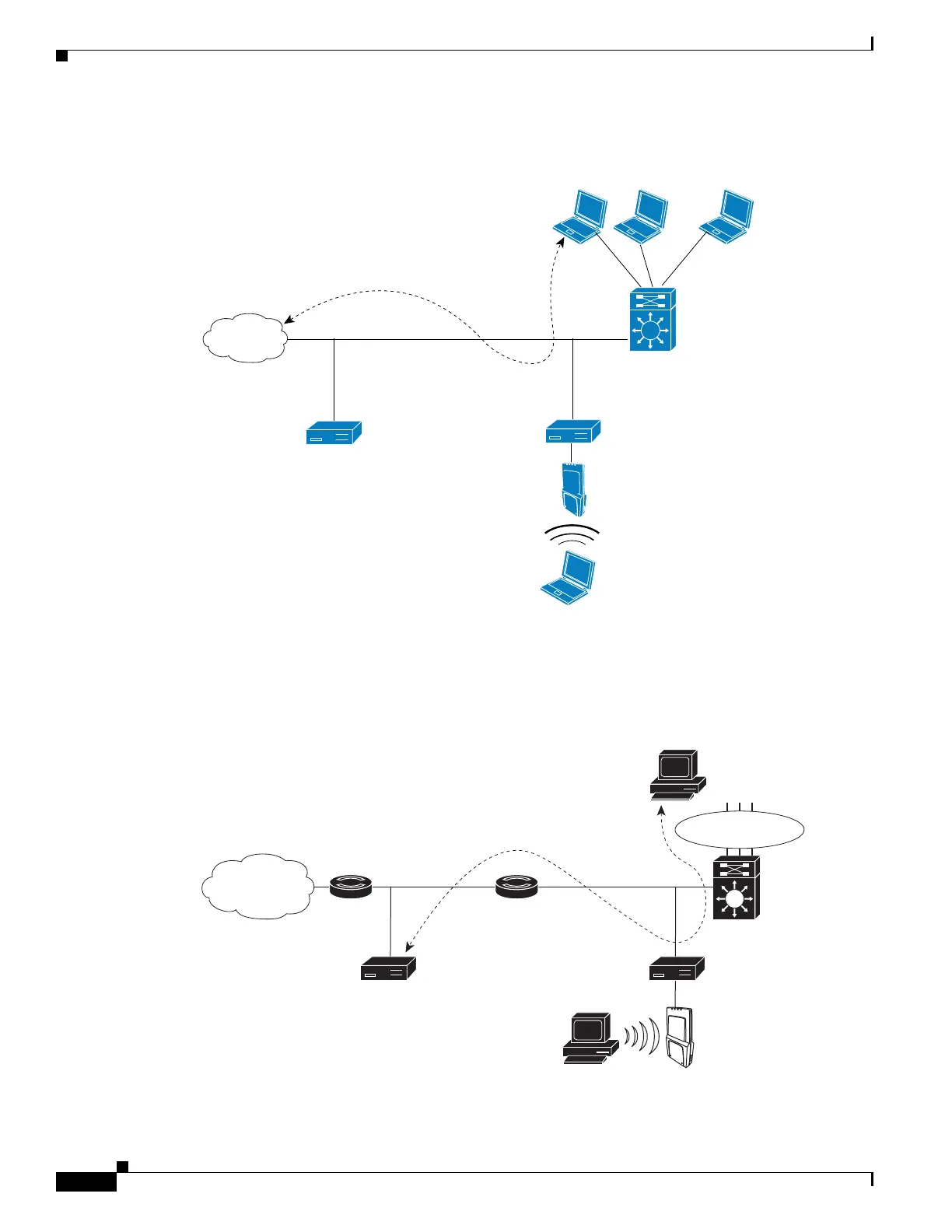

Figure 10-15 Wired Guest Access Example with One Controller
If two controllers are being used, the foreign controller, which receives the wired guest traffic from the
access switch, forwards it to the anchor controller. A bidirectional EoIP tunnel is established between
the foreign and anchor controllers to handle this traffic. See Figure 10-16.
Figure 10-16 Wired Guest Access Example with Two Controllers
232048
Internet
VLAN ID:
236 ,
guest LAN:
1
egress interface,
guest-ds
ingress interface,
sidkrish-intf
Controller
(foreign)
Controller
(anchor)
SSID: internal
SSID: guest
Wireless
guest
client
Access
switch
Conference
room
Guest
office
Wired guest access portsWired guest access ports
232347
Internet
SSID: Internal
SSID: GUEST
Wired
guest
client
Access
switch
Wireless
guest client
Wired guest ports
Wired guest ports
Wired guest ports
Anchor controller,
mobility anchor,
export-anchor
Foreign controller,
export-foreign
