Information About Layer 2 Protocol Tunneling
Figure 9-4 Layer 2 Protocol Tunneling
In the preceding example, STP for a VLAN on a switch in Customer X, Site 1 will build a spanning tree
on the switches at that site without considering convergence parameters based on Customer X’s switch
in Site 2.
Figure 9-5 shows the resulting topology on the customer’s network when BPDU tunneling is not
enabled.

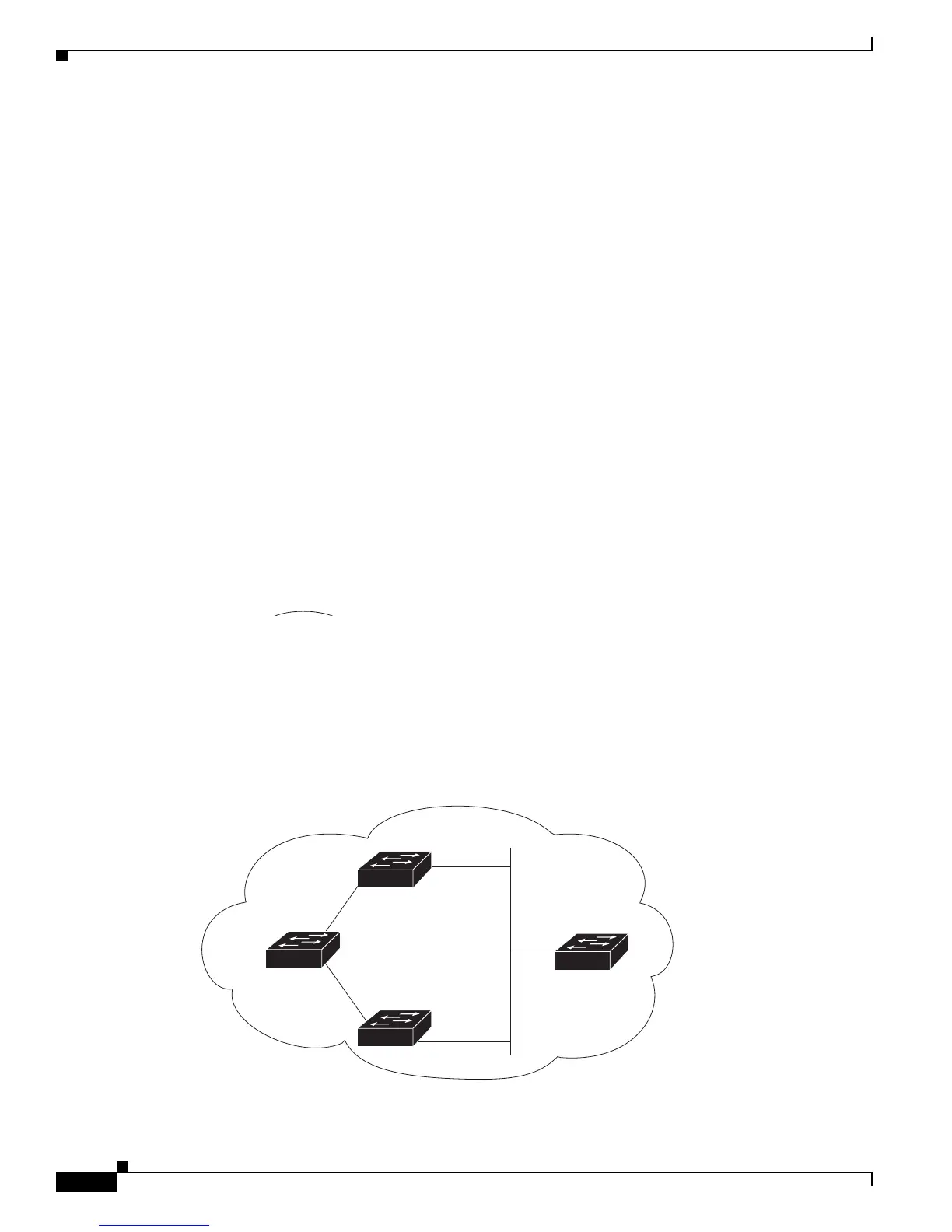

Figure 9-5 Virtual Network Topology Without BPDU Tunneling
Cu st o m er X Si t e 1
VLANs 1 to 100
197206
Customer A
virtual network
VLANs 1 to 100
