Cisco 7931G Phone Guide

An Overview of Your Phone
Cisco Unified IP Phone 7931G for Cisco Unified Communications Manager 6.0 11

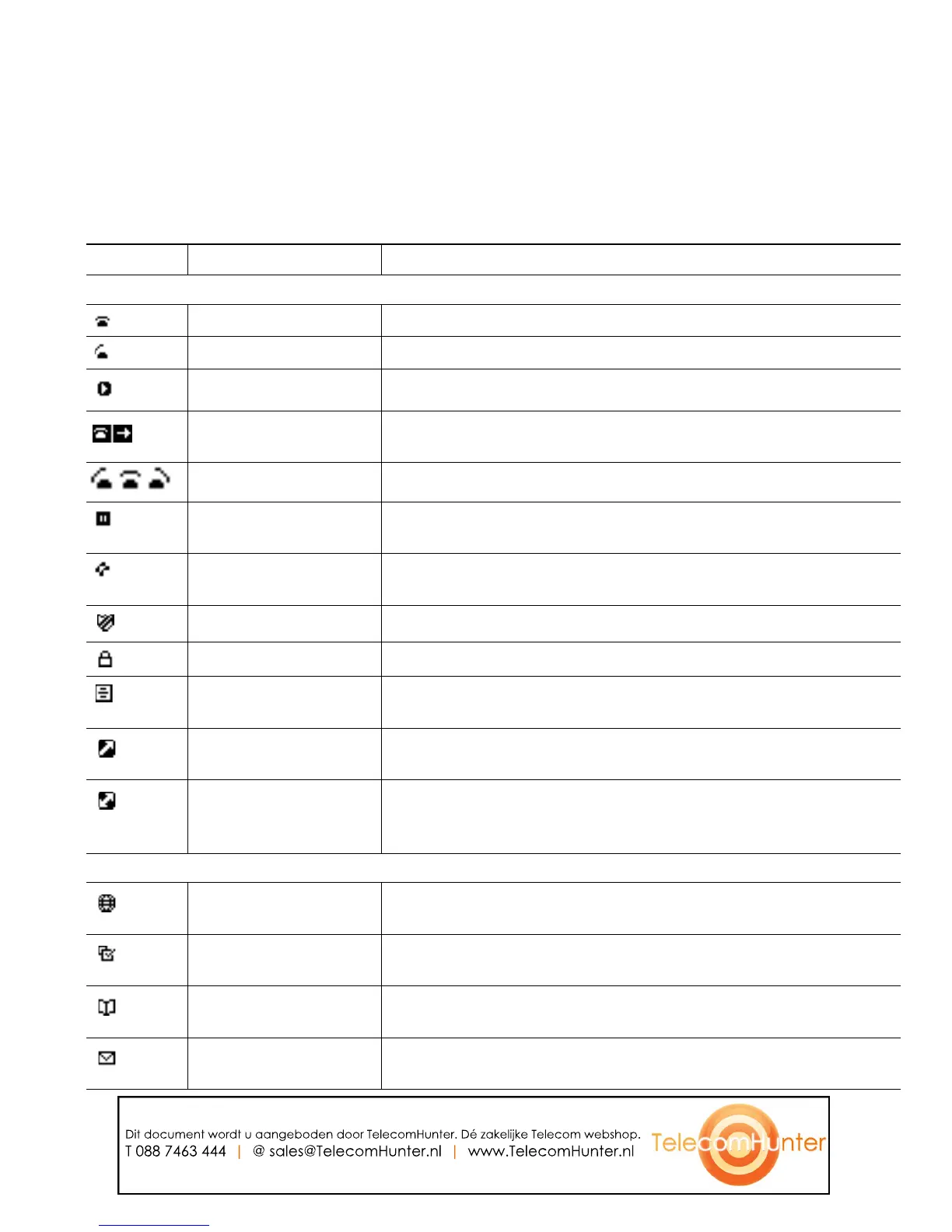

Understanding Line and Call Icons
Your phone displays icons to help you determine the line and call state and feature accessibility on
each line.
Icon Line or call state Description
Call State
On-hook line No call activity on this line.
Off-hook line You are dialing a number or an outgoing call is ringing.
Connected call You are connected to the other party.
Call Forwarding
enabled
Call forwarding is enabled on this line.
Ringing call A call is ringing on one of your lines.
Call on hold You have put the call on hold. See Using Hold and Resume,
page 20.
Remote-in-use Another phone that shares your line has a connected call. See
Using a Shared Line, page 34.
Authenticated call See Making and Receiving Secure Calls, page 36.
Encrypted call See Making and Receiving Secure Calls, page 36.
Idle Intercom line The intercom line is not in use. See Placing or Receiving
Intercom Calls, page 28.
One-way intercom The intercom line is sending or receiving one-way audio. See
Placing or Receiving Intercom Calls, page 28.
Two-way intercom The recipient pressed the intercom line to activate two-way
audio with the caller. See Placing or Receiving Intercom Calls,
page 28.
Feature Access
Application menu The Application menu is assigned to this line key. See Accessing
the Application Menu, page 14.
Settings menu The Settings menu is assigned to this line key. See Changing
Phone Settings, page 43.
Directories menu The Directories menu is assigned to this line key. See Using Call
Logs and Directories, page 45.
Messages menu The Messages menu is assigned to this line key. See Accessing
Voice Messages, page 51.
