See the following figure for a graphical overview of the phone parts.

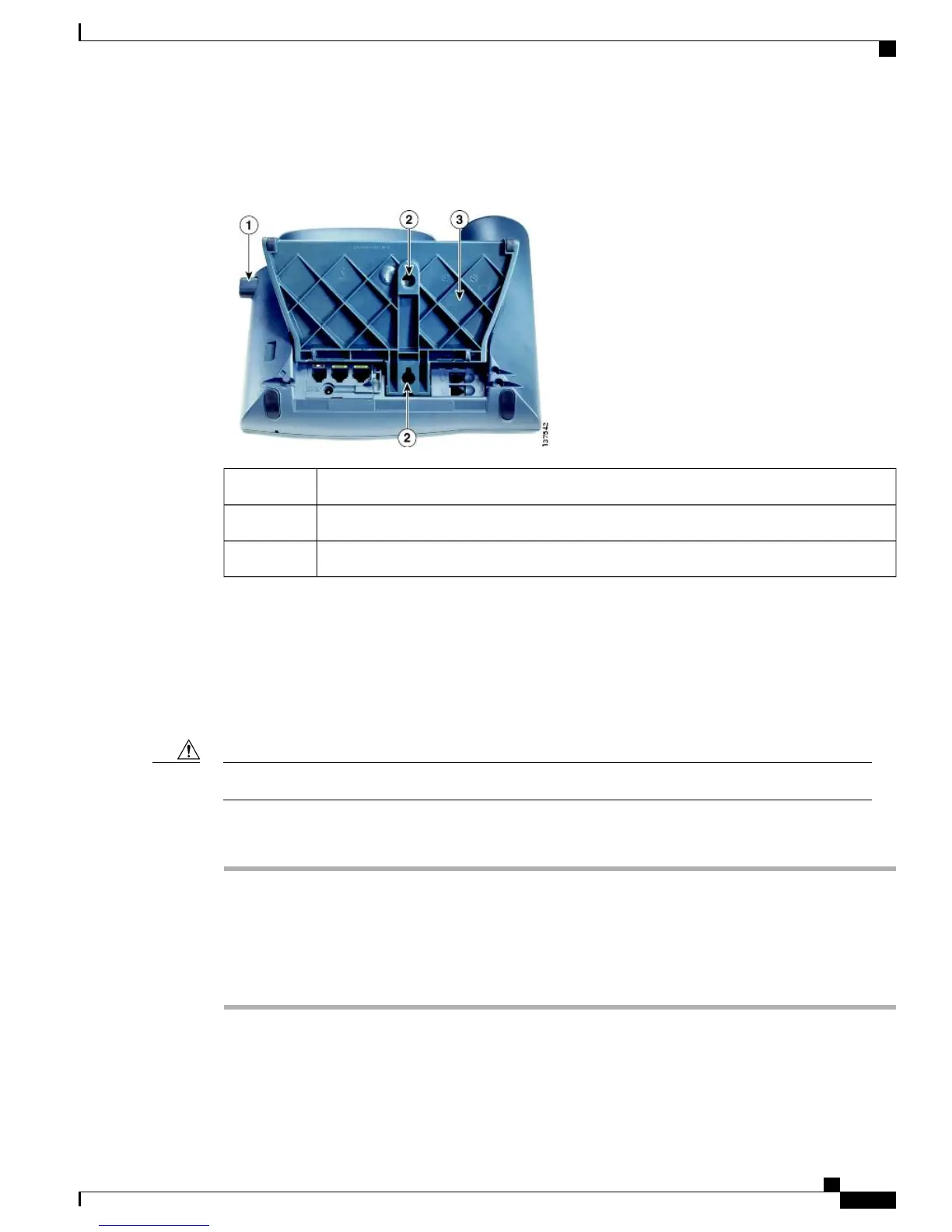

Figure 3: Parts Used to Wall Mount the Cisco Unified IP Phone
Footstand adjustment button: Raises and lowers adjustment plate1
Wall mounting screw holes2
Adjustment plate: Raises and lowers phone vertically3
Before You Begin
To ensure that the handset attaches securely to a wall-mounted phone, remove the handset wall hook from
the handset rest, rotate the hook 180 degrees, and reinsert the hook. Turning the hook exposes a lip on which
the handset catches when the phone is vertical. For an illustrated procedure, see Installing the Wall Mount
Kit for the Cisco Unified IP Phone at:
http://www.cisco.com/en/US/products/hw/phones/ps379/prod_installation_guides_list.html
Use care not to damage wires or pipes located inside the wall when securing screws to wall studs.Caution
Procedure
Step 1
Push in the footstand adjustment button.
Step 2
Adjust the footstand, so it is flat against the back of the phone.
Step 3
Insert two screws into a wall stud, matching them to the two screw holes on the back of the footstand.
The keyholes fit standard phone jack mounts.
Step 4
Hang the phone on the wall.
Cisco Unified IP Phone 7941G, 7941G-GE, 7942G, 7961G, 7961G-GE, and 7962G Administration Guide for Cisco Unified
Communications Manager 9.0 (SCCP and SIP)
55
Cisco Unified IP Phones Installation
Mount Phone on Wall
