Cisco SIP IP Phone-to-Cisco SIP IP Phone—Called User is Busy
Figure B-16 illustrates an unsuccessful call in which User A initiates a call to
User B but User B is on the phone and is unable or unwilling to take another call.

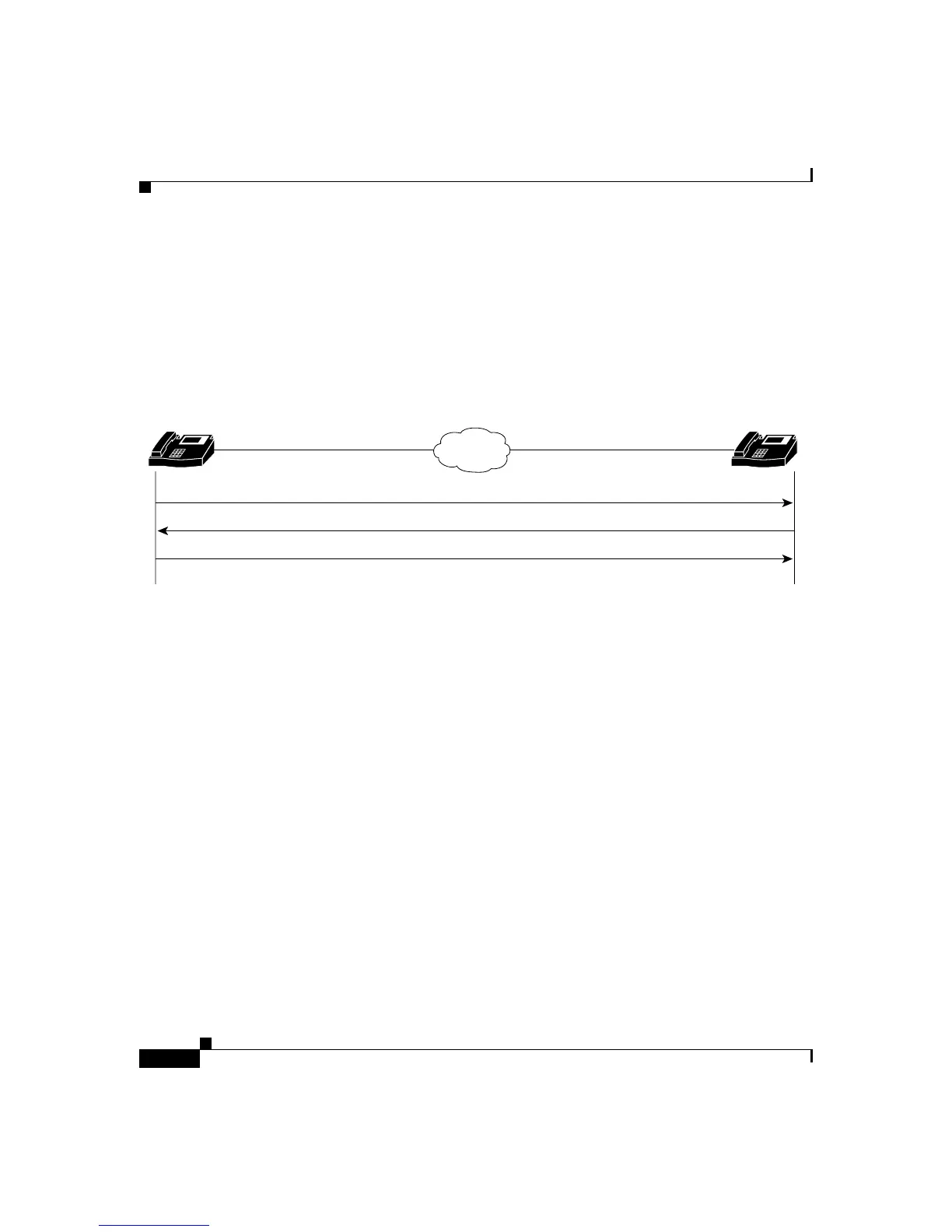

Figure B-16 Cisco SIP IP Phone-to-Cisco SIP IP Phone—Called User is Busy
IP IP
2. 486 Busy Here
3. ACK
1. INVITE B
IP Network
SIP IP
Phone User A
SIP IP
Phone User B
