Chapter 2 Getting Started with Your Cisco SIP IP Phone
Verifying Startup
2-20
Cisco SIP IP Phone 7960 Administrator Guide
78-10497-02
Figure 2-2 Adjusting the Footstand
Verifying Startup
After the phone has power connected to it, the phone begins its startup process by
cycling through these steps:
1.
These buttons flash on and off in sequence:
–
Headset
–
Mute
–
Speaker
2.
The Cisco Systems, Inc. copyright displays on the LCD.

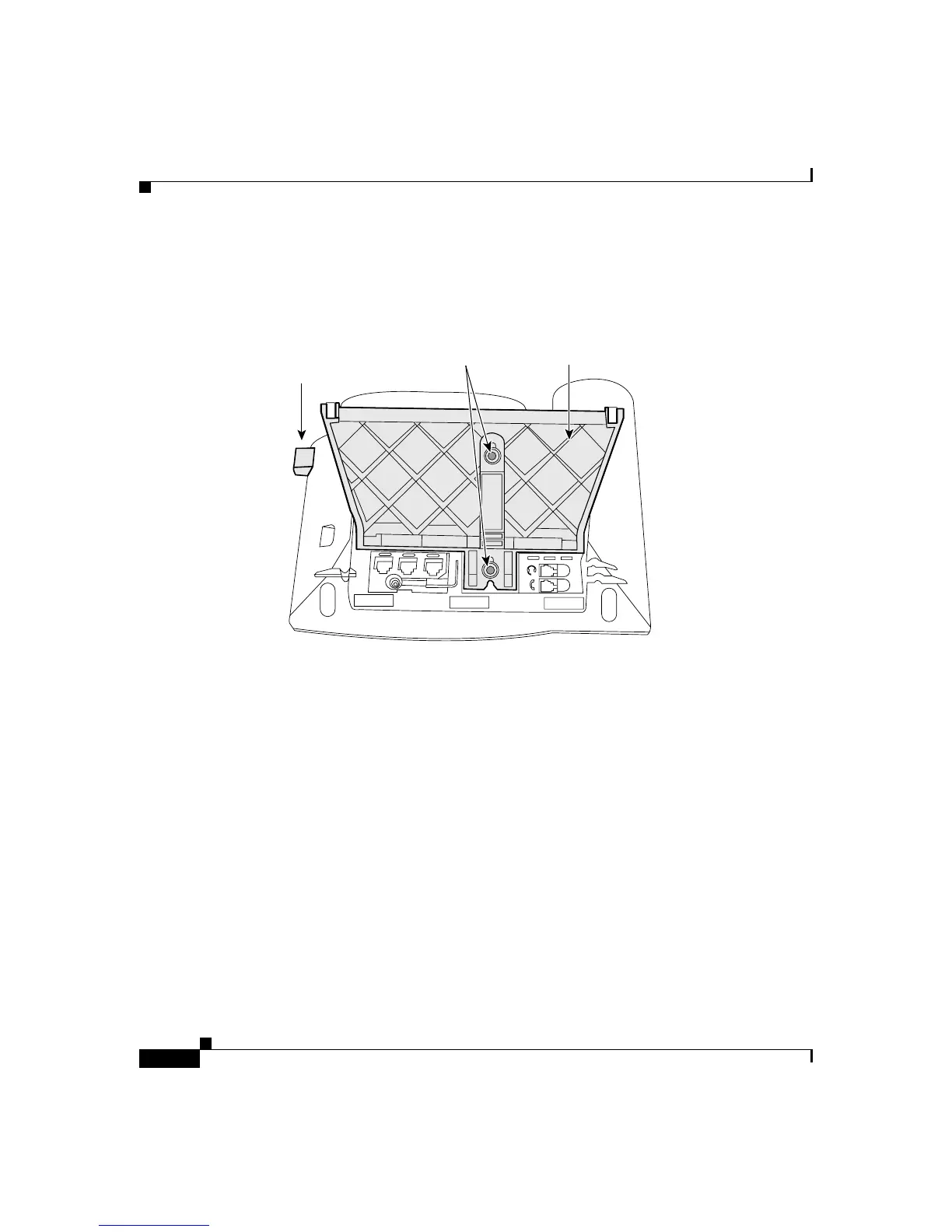

Cisco IP Phone 7960 (rear view)
Footstand adjustment
button raises and
lowers adjustment
plate
Adjustment plate
raises and lowers
phone vertically
Adjustment plate
installation
screws holes (2)
38036
