Chapter 2 Getting Started with Your Cisco SIP IP Phone
Reading the Cisco SIP IP Phone Icons
The line is configured for E.164 number dialing and ready for
you to place the call. When a line is configured for E.164
number dialing, you can enter only numbers when placing the
call.
You can change to URL dialing at any time while dialing on a
line by pressing the more soft key and then the URL soft key.
The character “x” displayed to the right of the icon indicates
that registration has failed.
The line is configured for URL dialing and you can enter both
numbers and letters when placing the call.
The character “x” displayed to the right of the icon indicates
that registration has failed.
The line is configured for URL dialing and ready for you to
place the call. When a line is configured for URL dialing, you
can enter both numbers and letters when placing the call.
You can change to E.164 number dialing at any time while
dialing on a line by pressing the more soft key and then the
Number soft key.
The character “x” displayed to the right of the icon indicates
that registration has failed.
The Cisco SIP IP phone configuration mode is locked. When
the phone is locked, the phone’s network or SIP settings cannot
be modified.
The Cisco SIP IP phone configure mode is unlocked. When the
phone is unlocked, the phone’s network or SIP settings can be
modified.

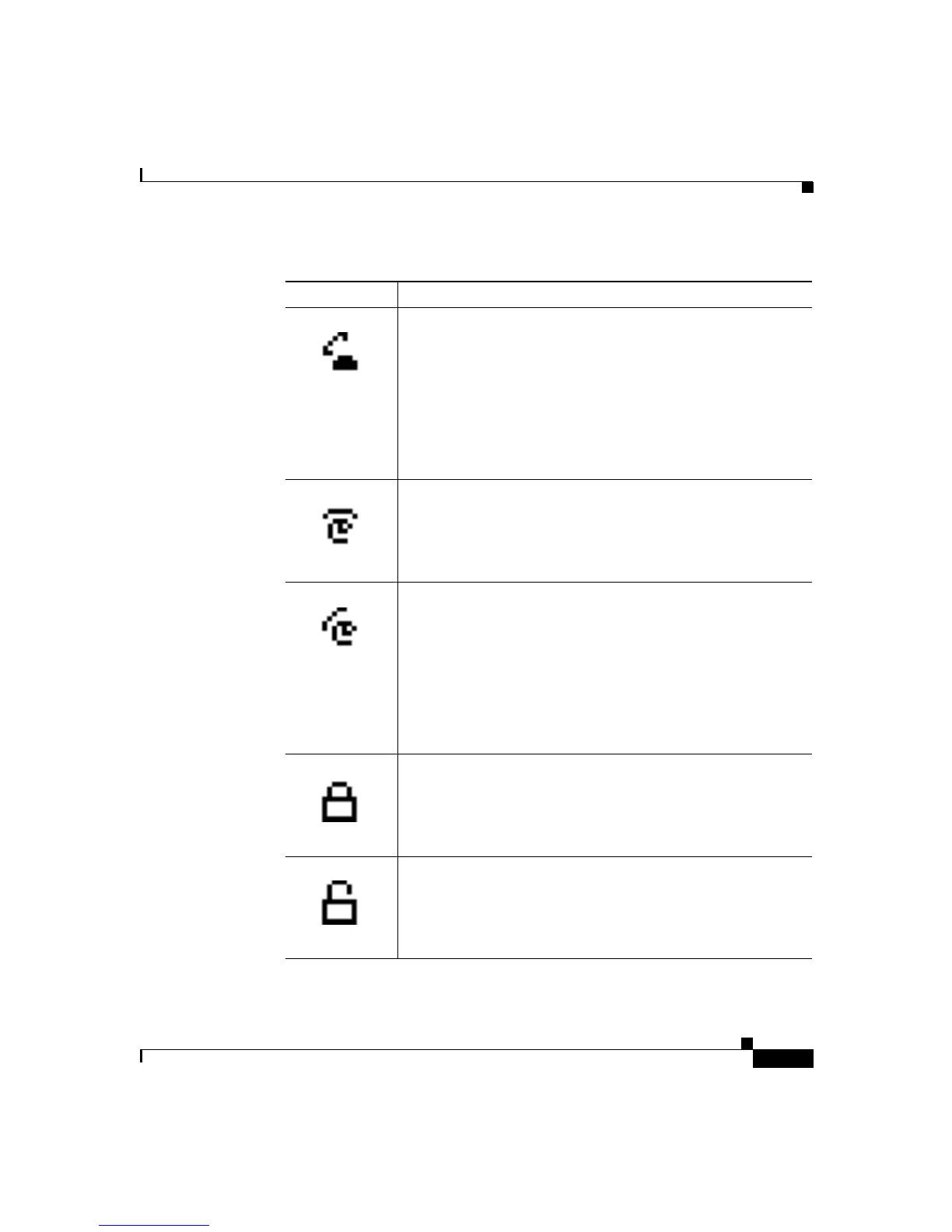

Table 1 Cisco SIP IP Phone User Interface Icon Meanings (continued)
Icon Meaning
