Cisco ASR 1002-HX User Manual

Bay 1— Ports TE4 - TE7 use 1GE SFP and ports
TE0 - TE3 use 10GE SFP+ transceivers.
2
Bay 0—The ports in Bay 0 use 1GE SFP
transceivers and are labeled GE0 - GE7.
1

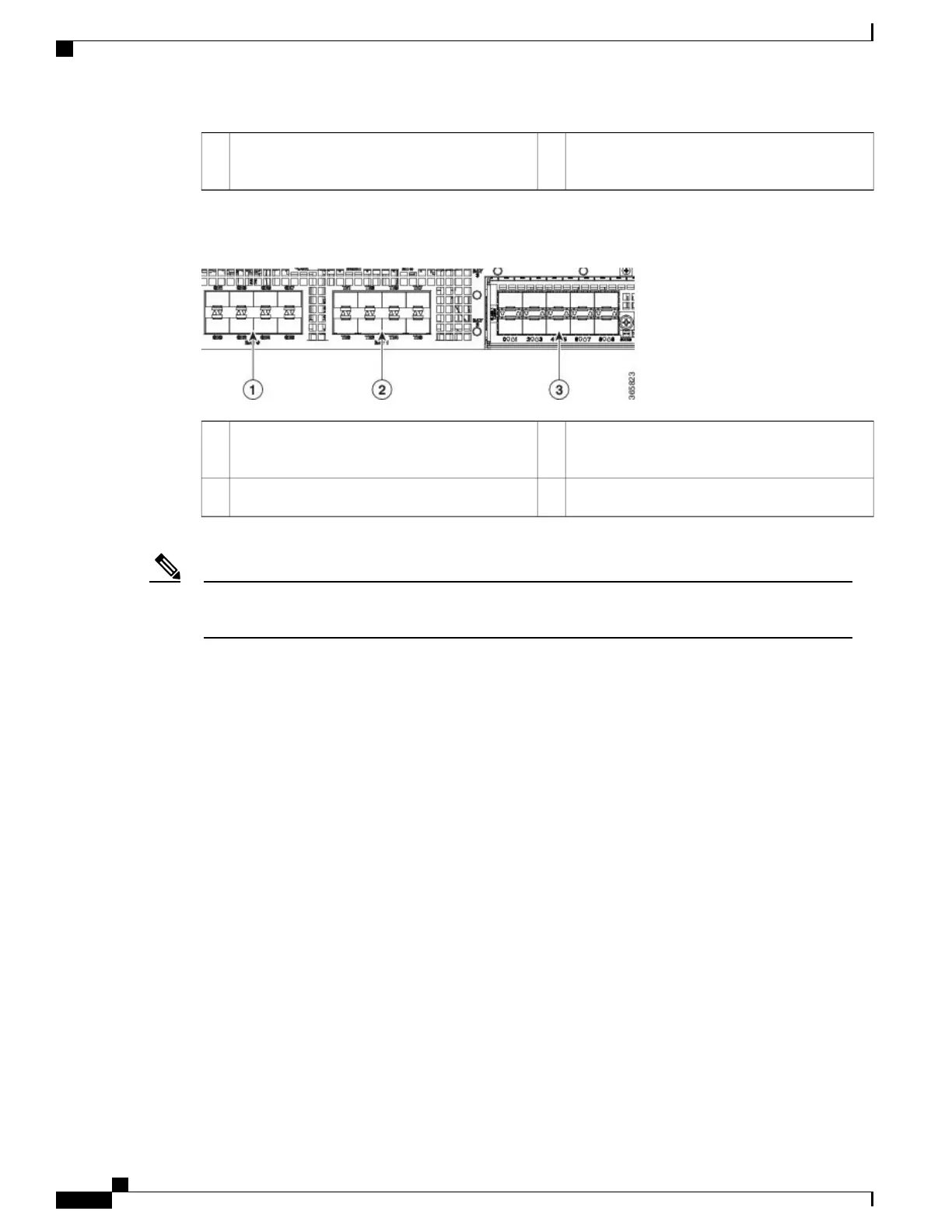

Figure 5: Cisco ASR 1002-HX Router Port Numbering
Bay 1— The ports in Bay 1 use 10GE SFP+
transceivers and are labeled TE0 - TE7.
2
Bay 0—The ports in Bay 0 use 1GE SFP
transceivers and are labeled GE0 - GE7.
1
Bay 2—EPA Slot
3
Interfaces from 0 - 3 on both Bay 0 and Bay 1 on the Cisco ASR 1001-HX Router and Cisco ASR 1002-HX
Router are enabled by default. Interfaces from 4 - 7 can be enabled by purchasing the Paired Port License.
Note
The port LEDs behave as follows:
• Off—Indicates the port is not enabled by software.
• Amber—Indicates the port is enabled by software but there is a problem with the link.
• Green—Indicates the port is enabled by software and there is valid link.
Cisco ASR 1001-HX Router and Cisco ASR 1002-HX Router Hardware Installation Guide
6
Overview
Front View
