Cisco ASR 1002-HX

Management and Storage Connections
The following figure shows the management and storage connections for the ASR 1001-HX Router.

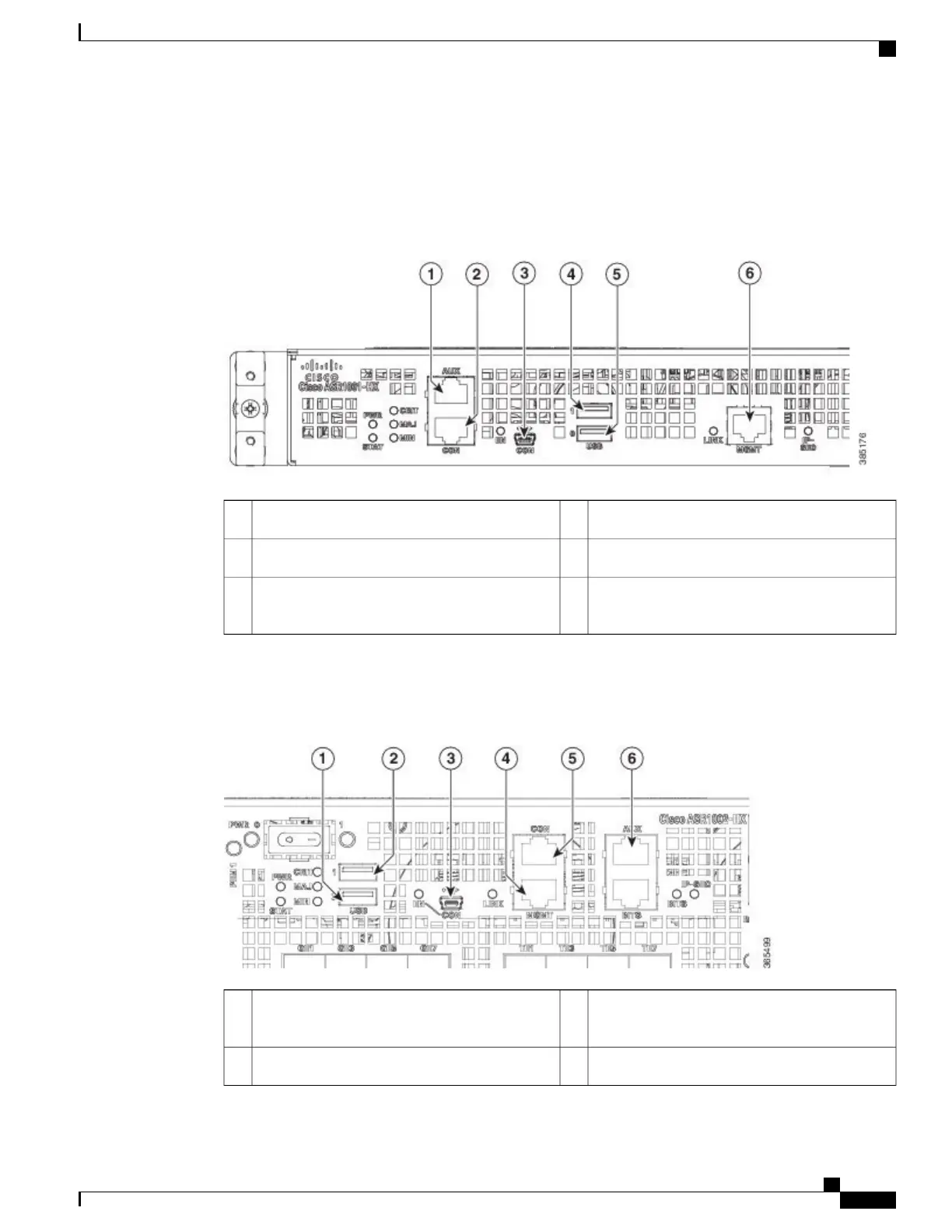

Figure 6: Management and Storage Connections for the Cisco ASR 1001-HX Router
USB port 14
AUX—RJ-45/RS-232 compatible auxiliary port.
1
USB port 05
CON—RJ-45/RS-232 compatible console port.
2
MGMT—RJ-45 10/100/1000 management
Ethernet port.
6
CON—Mini USB connector console port.
3
The following figure shows the management and storage connections for the ASR 1002-HX Router.
Figure 7: Management and Storage Connections for the Cisco ASR 1002-HX Router
MGMT—RJ-45 10/100/1000 management
Ethernet port.
4USB port 01
CON—RJ-45/RS-232 compatible console port.
5USB port 12
Cisco ASR 1001-HX Router and Cisco ASR 1002-HX Router Hardware Installation Guide
7
Overview
Front View
