Cisco ASR 1002-HX User Manual

Attaching a Chassis Ground Connection
Procedure
Step 1
Use the wire stripper to strip one end of the AWG #6 wire approximately 0.75 inches (19.05 mm).
Step 2
Insert the AWG #6 wire into the open end of the grounding lug.

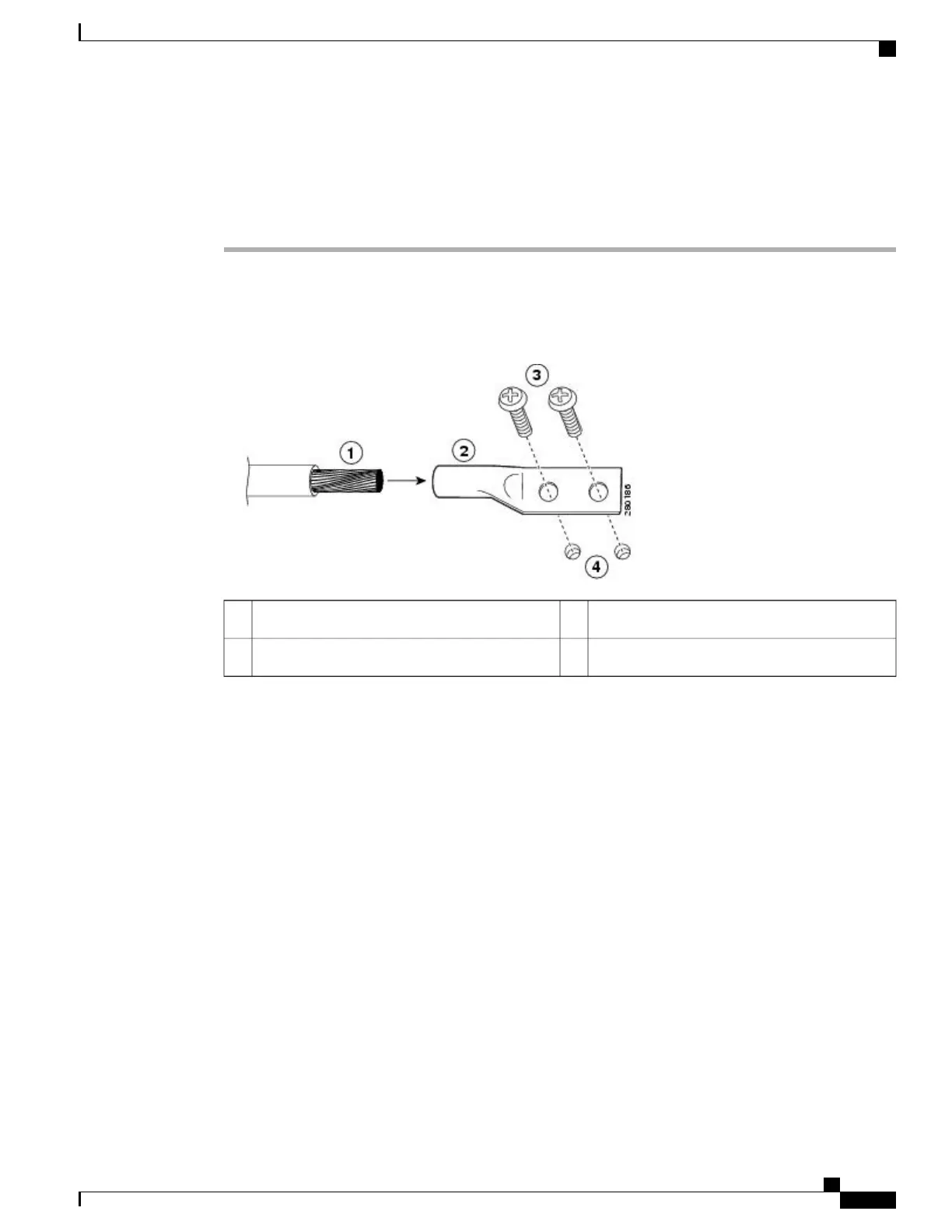

Figure 31: Attaching a Grounding Lug to the Chassis Ground Connector
Ground screws3Chassis ground lead wire1
Chassis ground connector holes4Grounding lug2
Step 3
Use the crimping tool to carefully crimp the wire receptacle around the wire. This step is required to ensure
a proper mechanical connection.
Step 4
Locate the chassis ground connector on the side of your chassis.
Step 5
Insert the two screws through the holes in the grounding lug.
The following figures show how to attach a grounding lug to the chassis ground connector.
Cisco ASR 1001-HX Router and Cisco ASR 1002-HX Router Hardware Installation Guide
65
Installing the Router
Attaching a Chassis Ground Connection

Cisco ASR 1002-HX Specifications

General

Form Factor	Rack-mountable
Redundancy	Yes
Power Supply	Dual, hot-swappable
Memory	16 GB DRAM
Storage	200 GB SSD
SPA Interface Processor (SIP) Slots	1
Operating Temperature	32 to 104°F (0 to 40°C)
Route Processor	RP2
Embedded Services Processor (ESP)	ESP-40
Rack Units	2
