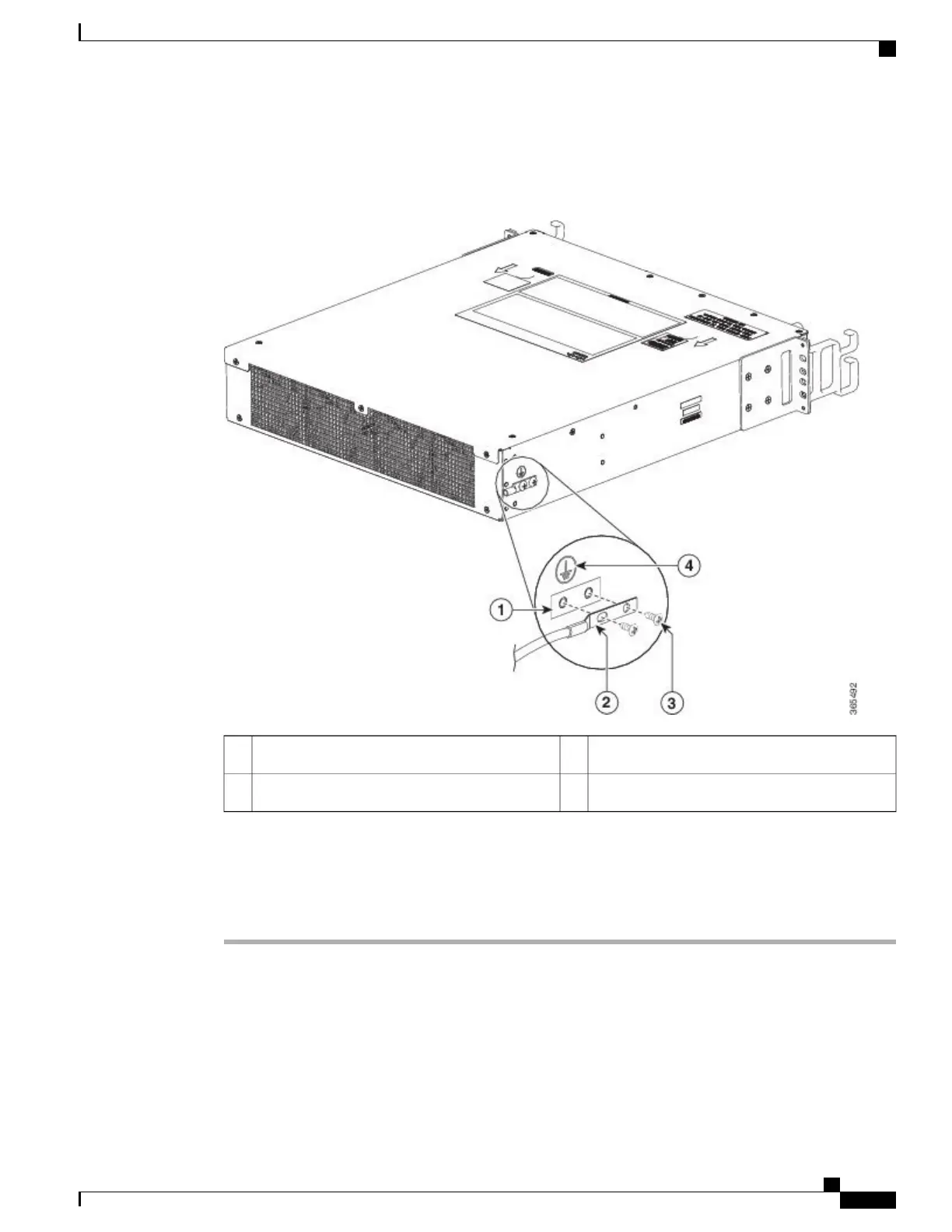

Figure 33: Attaching the Grounding Lug to the Ground Connector of the Cisco ASR 1002-HX Router
Grounding screws3Ground connector on the chassis1
Ground symbol4Chassis ground lug2
Step 6
Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly
to the chassis. Do not over tighten the screws.
Step 7
Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure an
adequate chassis ground.
Connecting Cables
Keep the following guidelines in mind when connecting any external cable to the Cisco ASR 1001-HX Router
and Cisco ASR 1002-HX Router:
Cisco ASR 1001-HX Router and Cisco ASR 1002-HX Router Hardware Installation Guide
67
Installing the Router
Connecting Cables
