The following figure shows the Cisco ASR 1002-HX Router DC power supply.

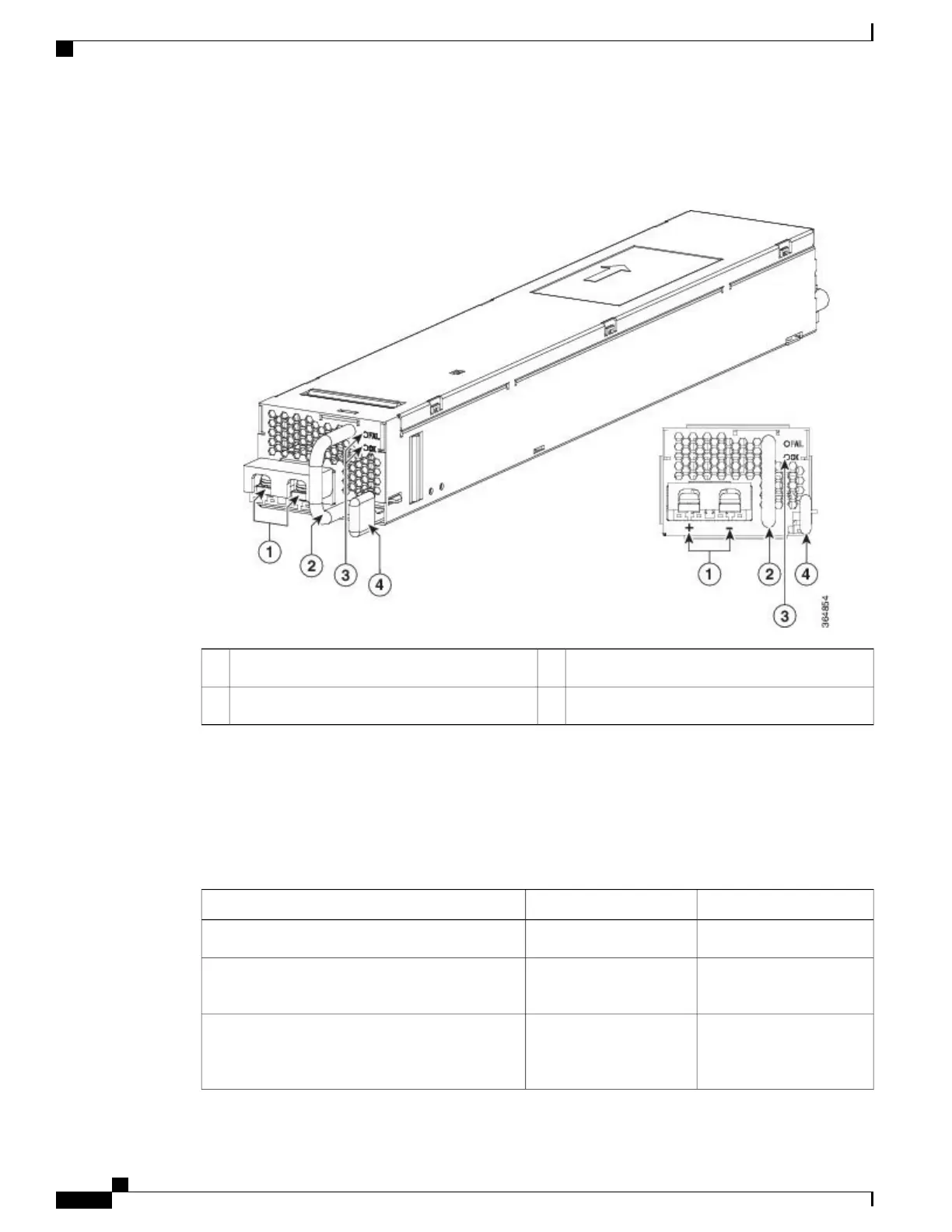

Figure 19: ASR1000X-DC-950W DC Power Supply Used in the Cisco ASR 1002-HX Router
FAIL and OK LEDs3DC power connections1
Retaining latchHandle2
Power Supply LEDs
The following table describes the power supply LEDs.
Table 6: AC and DC Power Supply LEDs
Amber (FAIL) LED StatusGreen (OK) LED StatusPower Supply Condition
OFFOFFNo AC power to all power supplies
ONOFFPower Supply Failure (includes over voltage, over
current, over temperature and fan failure)
1Hz BlinkingOFFPower Supply Warning events where the power
supply continues to operate (high temperature, high
power and slow fan)
