Cisco ASR 1002-HX User Manual

The power supplies used in Cisco ASR 1001-HX Router and Cisco ASR 1002-HX Router are different
and they should not be mixed or swapped. The size and structural dimensions are the same, therefore they
both look alike. It would be hazardous if you accidently inserted the wrong power supply into the PEM
slot.
Caution
The direction of the airflow is different for the Cisco ASR 1001-HX Router and the Cisco ASR 1002-HX
Router as shown by the arrows in the illustrations below.
Note
The following figure shows the Cisco ASR 1001-HX Router DC power supply.

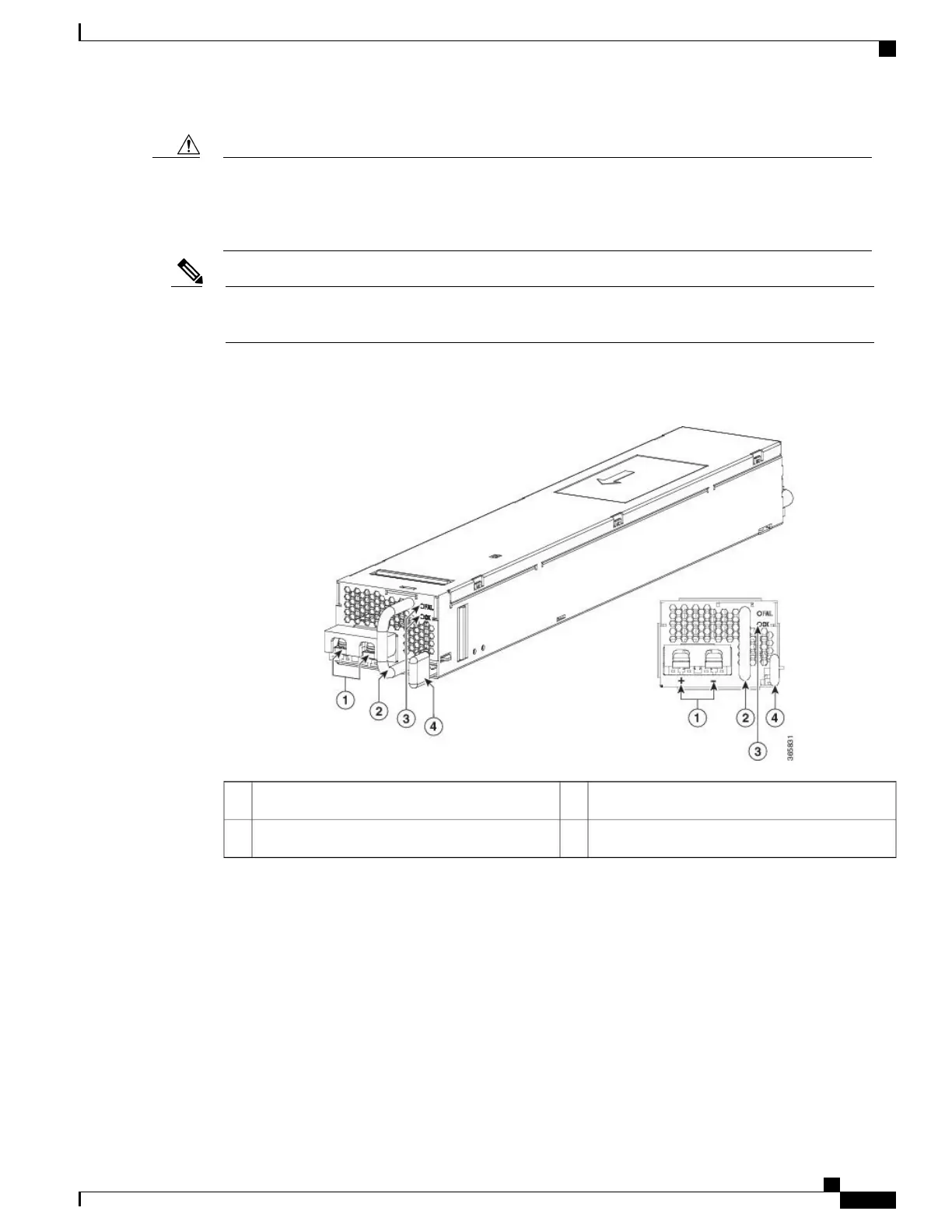

Figure 18: ASR1000X-DC-950W DC Power Supply Used in the Cisco ASR 1001-HX Router
FAIL and OK LEDs3DC power connections1
Retaining latchHandle2
Cisco ASR 1001-HX Router and Cisco ASR 1002-HX Router Hardware Installation Guide
23
Supported Hardware Components
DC Power Supply

Cisco ASR 1002-HX Specifications
