Configuring and Accessing the Web User Interface
Web User Interface Overview
3
Cisco ASR 1000 Series Aggregation Services Routers Software Configuration Guide

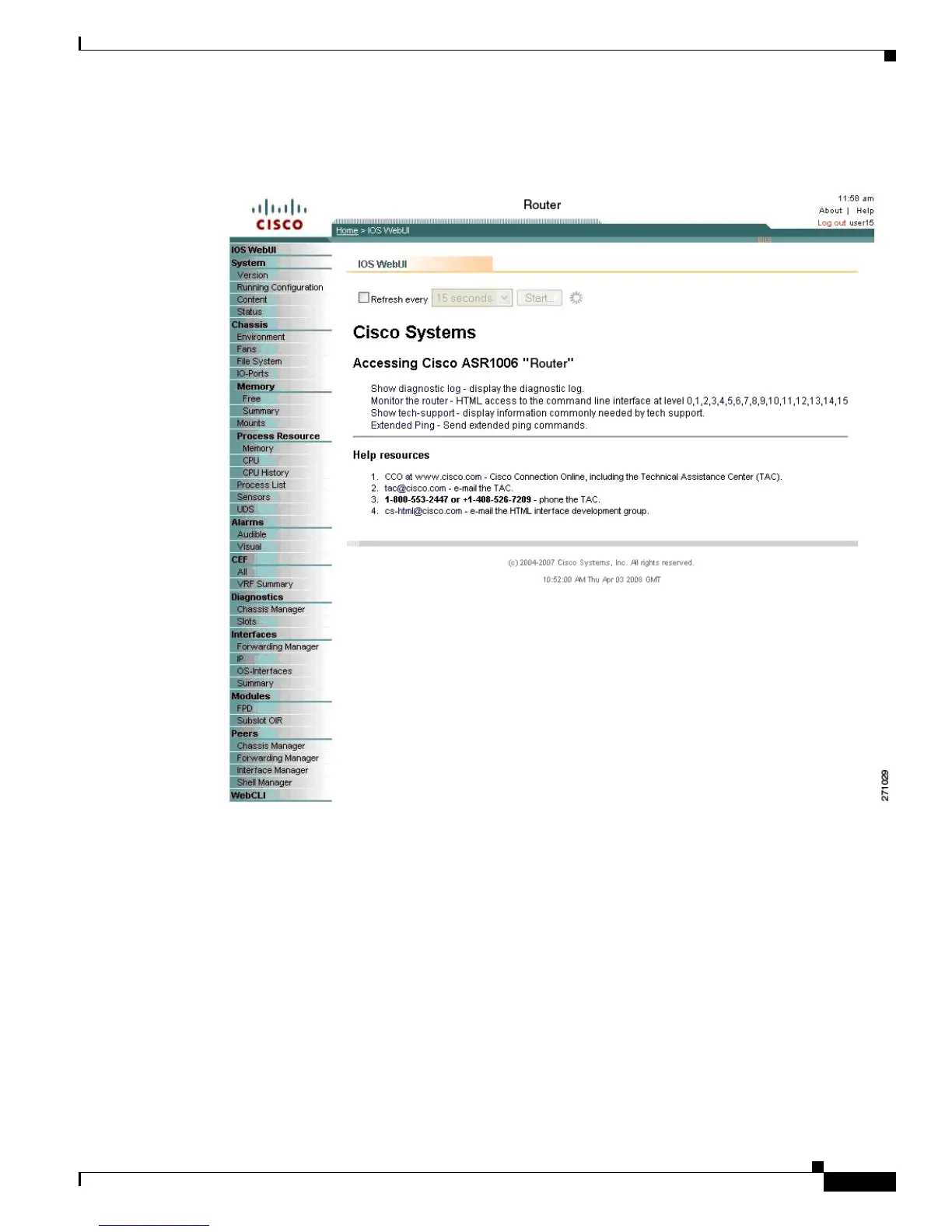

See Figure 5 for an example of the legacy web user interface home page.
Figure 5 Legacy Web User Interface Home Page
Graphics-Based Web User Interface Overview
The web user interface on the Cisco ASR 1000 Series Routers expands the legacy web user interface
available on other platforms by presenting information in easy-to-read graphics-based tables, graphs, or
charts, depending on the information presented. The web user interface on the Cisco ASR 1000 Series
Routers is also able to present monitoring information stored in both the IOS and nonIOS subpackages,
allowing for a complete view of the router using the web user interface.

Cisco ASR1006 - ASR 1006 Modular Expansion Base Specifications

General

Rack Units	6U
Form Factor	Rack-mountable
Operating Temperature	32 to 104°F (0 to 40°C)
Product Type	Router
Slots	6
Redundancy	Redundant Power Supply Supported
Maximum Throughput	100 Gbps
Dimensions	17.5" Width
Weight	Approximately 130 lbs (59 kg)
Interfaces/Ports	Varies by installed modules
Memory	4 GB
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Relative Humidity	5% to 95% (noncondensing)
Compliance	CE, UL
