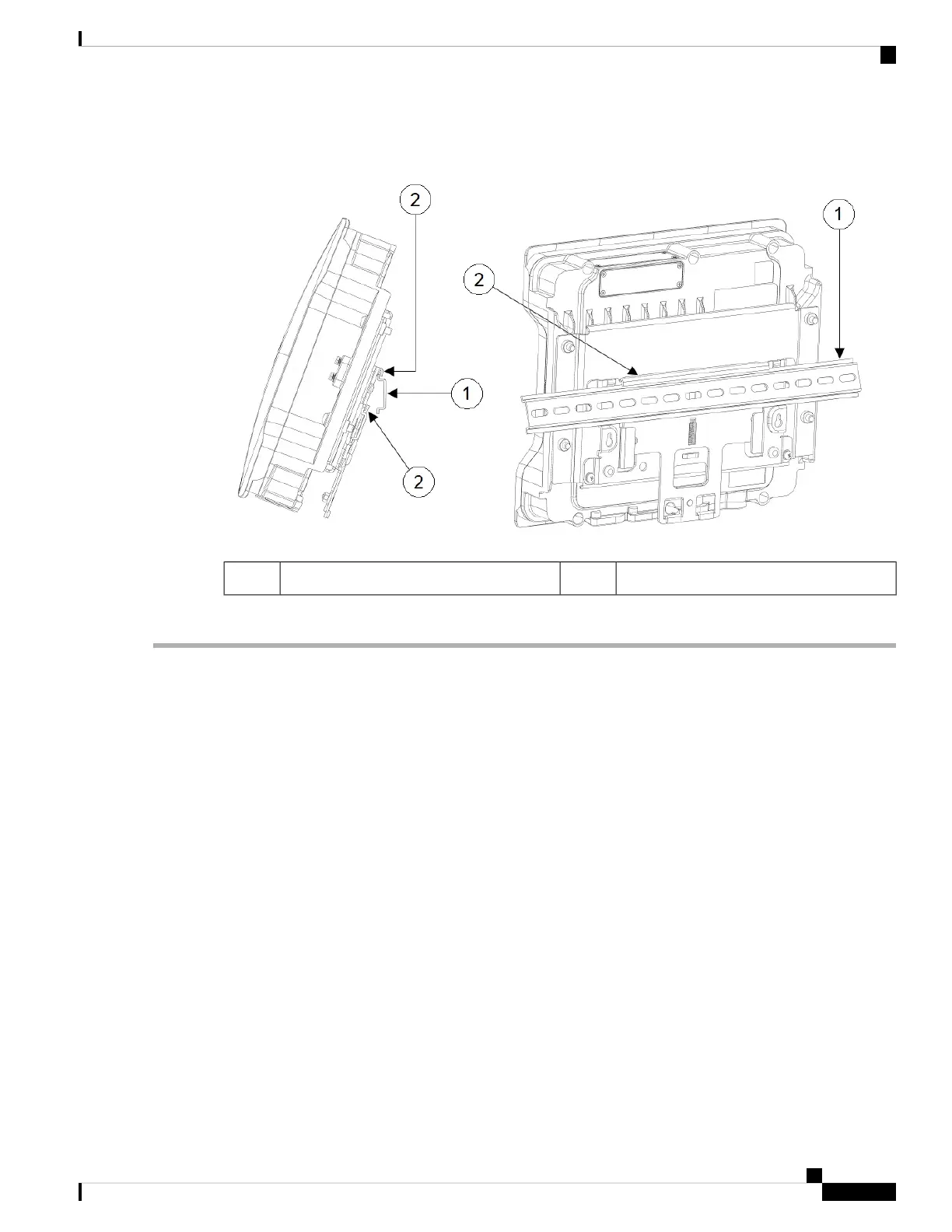

Figure 20: DIN Rail Mounting Assembly
DIN rail mounting bracket clip235 mm DIN rail (not supplied by Cisco)1
To DIN rail mount the access point:
Step 1 Assemble the access point and DIN rail mounting bracket using the M6 hardware supplied as shown in the following
figure.
Cisco Catalyst IW9167I Heavy Duty Access Point Hardware Installation Guide
21
Installation Overview
Using the DIN Rail Mounting Bracket
