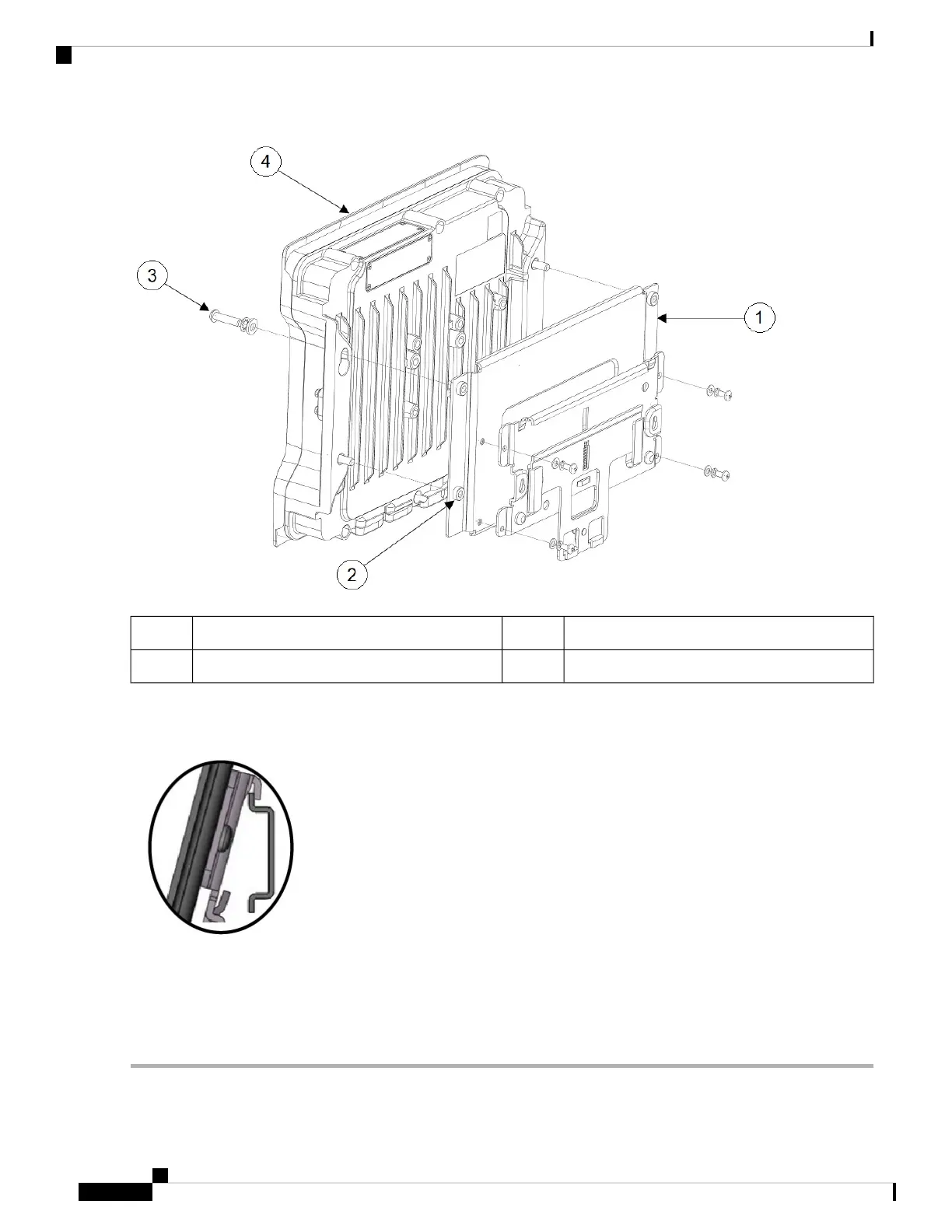

M6 screw (Torque 6–7 ft-lbs)3Steel DIN mounting bracket1
Access Point4M6 insert2
Step 2 Position the access point assembly directly in front of the DIN rail.
Step 3 Insert the DIN rail mounting bracket under the spring-loaded upper mounting clips.
Ensure that the DIN rail seats into the anti-slip clips.
Note
Step 4 Pull down the retention handles until the lower lip of the DIN rail mounting bracket seats in the lower mounting bracket
clip.
Step 5 Release the retention handles.
Cisco Catalyst IW9167I Heavy Duty Access Point Hardware Installation Guide
22
Installation Overview
Using the DIN Rail Mounting Bracket
