Preparing for Installation 2-11
Network Connection Considerations
Figure 2-5 Ethernet Network Processor Module with AUI and 10BaseT Connectors
An Ethernet transceiver cable with thumbscrew connectors can be connected directly to the router
port by replacing the slide latch with a jackscrew (provided in a separate bag). A 10BaseT transition
cable can connect directly from the router to your network. (See Figure 2-6.)

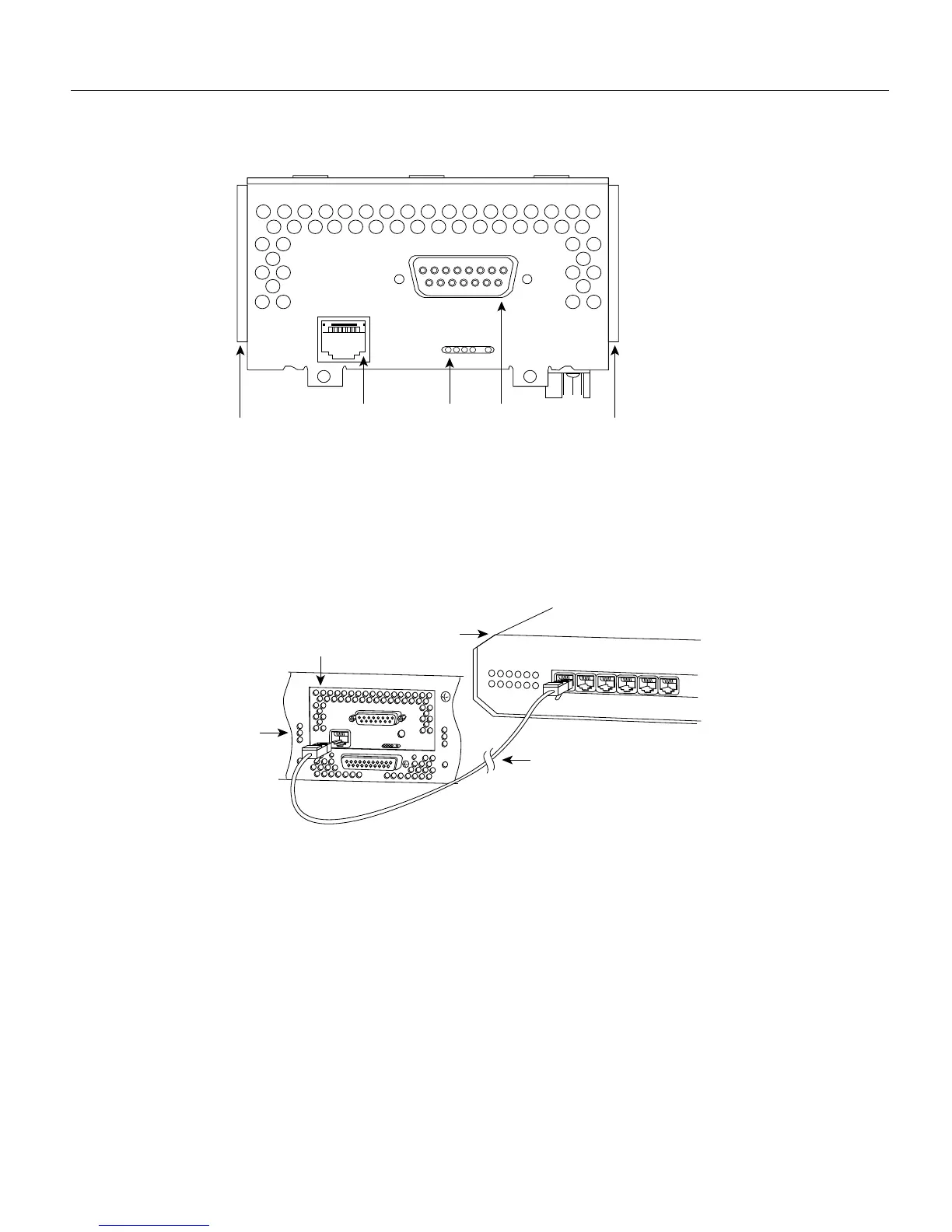

Figure 2-6 Single-Port Ethernet Network Processor Module 10BaseT Port Connection
Figure 2-7 shows a single-port Ethernet network processor module with an Ethernet (AUI)
connection to a transceiver.
LEDs10BaseT port AUI port
H1043a
Alignment
groove
Alignment
groove
Ethernet
AUI
10BaseT
TX RX LNK POL AUI
H1524a
10BaseT hub
10BaseT cable
AUI
10BASET
AUX
Router
(rear view)
Ethernet module
