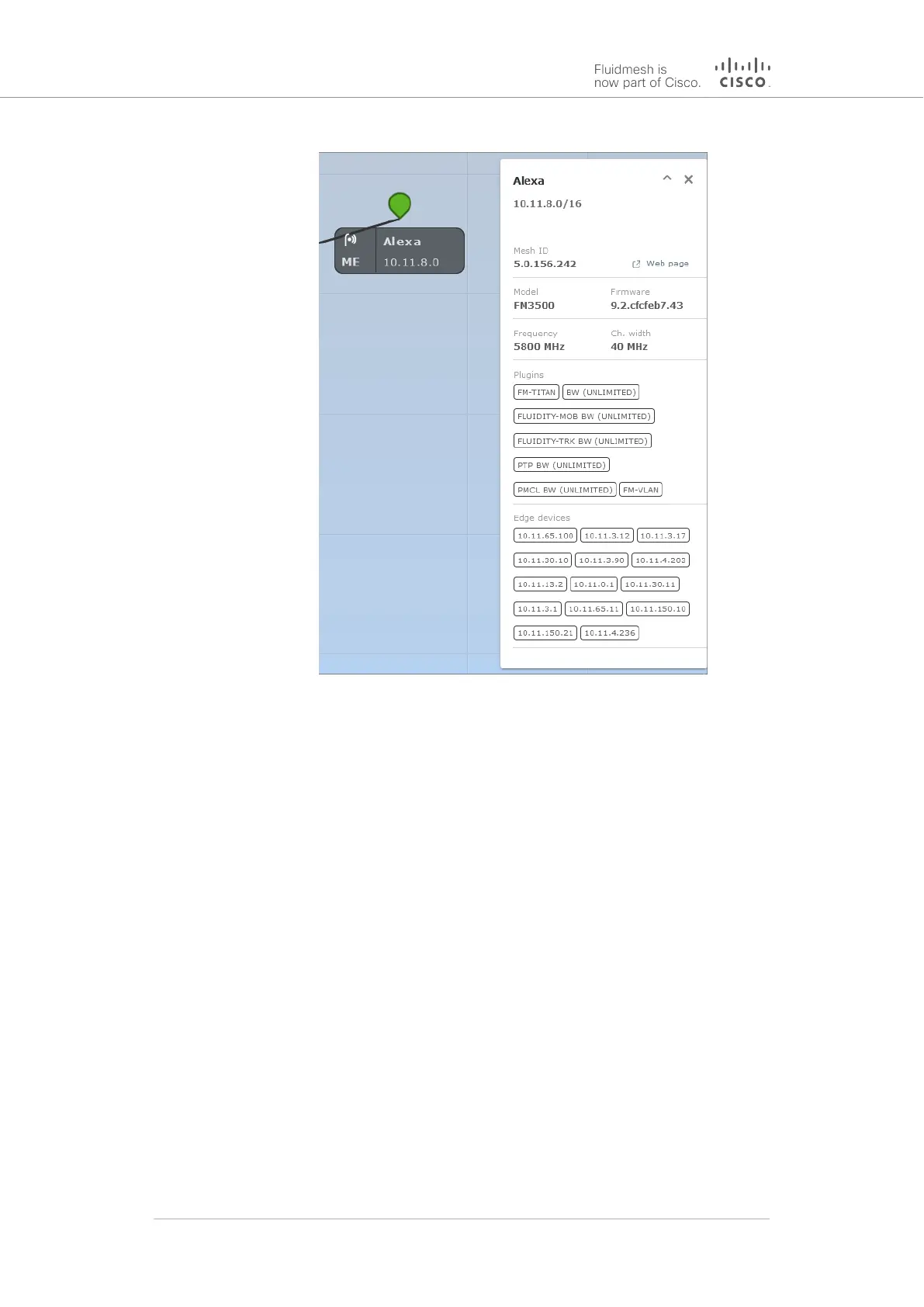

• When an information sidebar is shown for a stationary Fluidmesh
radio, the sidebar shows the following information:
• The device name label.
• The device’s IP address and netmask (a typical example
might be 10.11.8.0/16).
• The device’s Mesh ID number.
• A Web page link. Clicking this link will open the device’s
offline Configurator interface in a new window.
• The device model name.
• The device’s current firmware version.
• The device’s operating frequency.
• The device’s operating channel width.
• A list of the software plug-ins currently installed on the
device.
• If the device is a stationary radio, a list of IP addresses
belonging to all non-Fluidmesh edge devices currently
connected to the device will be shown.
Cisco Ultra-Reliable Wireless
Backhaul FM4200 Mobi
© 2020 Cisco and/or its affiliates. All rights reserved. Page 80 of 177
