• The Appearance / Background dialog will be shown.
2. If the Background settings are shown, click the Appearance
heading.
3. Click the KPI values on routes switch from Off to On.
4. Click the check-boxes for each KPI you want to see for all
wireless links. Available options are:
• L.E.R. (Current link error rate, shown as a percentage)
• P.E.R. (Current packet error rate, shown as a percentage)
• RSSI (Current received signal strength, shown in dBm)
• Link Utilization (shown as a percentage)
5. To save your changes, click the Save changes button.
Alternatively, click the Discard button to leave the dialog without
saving any changes.

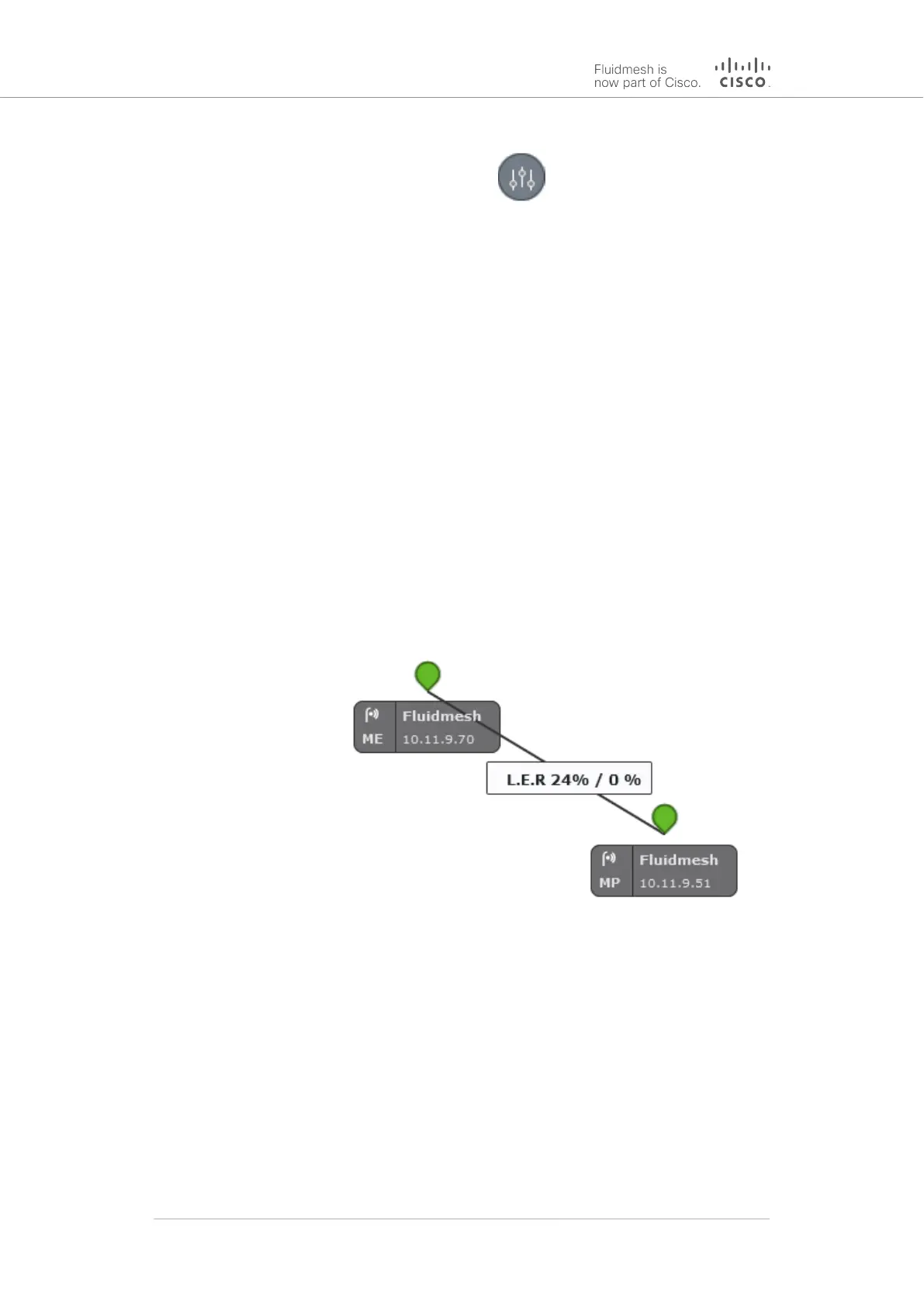

• An information ribbon containing the chosen key
performance indicators will be shown next to all wireless
link lines (a typical example is shown below).
Adding an aerial map to the FM-QUADRO view
You can add an aerial image to the FM-QUADRO view. This allows you to
superimpose the network map over a map of the actual terrain on which
the network has been installed, making it easier to visualize component
placement, line-of-sight between antennas, and other factors.
To add an aerial terrain map to the FM-QUADRO view, do the following
steps:
Cisco Ultra-Reliable Wireless
Backhaul FM4200 Mobi
© 2020 Cisco and/or its affiliates. All rights reserved. Page 85 of 177
