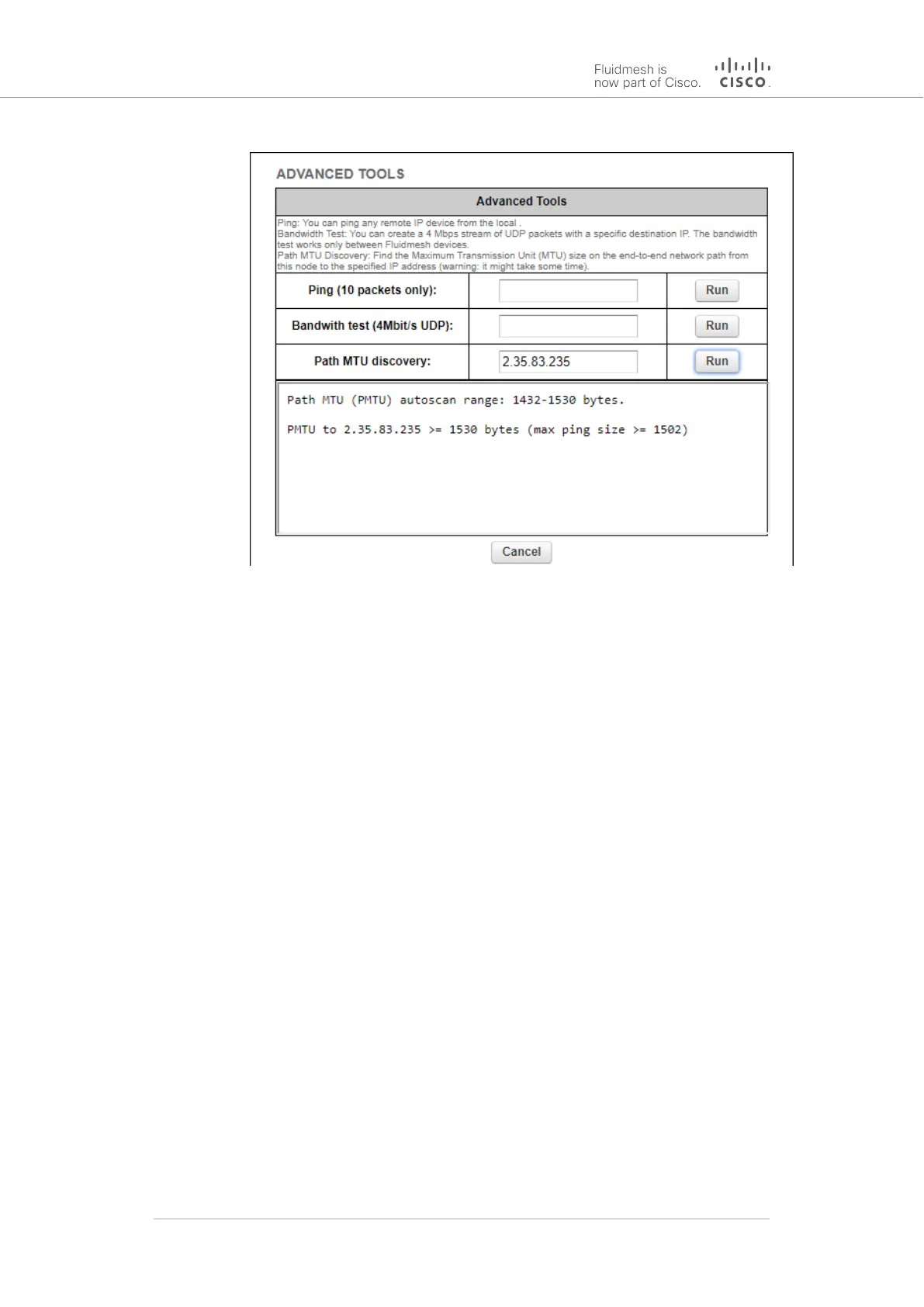

Figure 30. Advanced Tools window (Path MTU test tool)
3. Click the Run button to the right of the IP address field.
• The Path MTU test result will be shown below the test
controls.
7.6. Advanced settings
7.6.1. Advanced radio settings
The advanced radio settings menu item is used to configure the following
wireless parameters:
• The device's FluidMAX operating mode
• The FluidMAX cluster identification code
• The AES data encryption setting
• The maximum distance over which the unit is capable of
transmitting
To open the Advanced Radio Settings dialog, click the -advanced radio
settings link under ADVANCED SETTINGS in the left-hand settings
menu (below).
Cisco Ultra-Reliable Wireless
Backhaul FM4200 Mobi
© 2020 Cisco and/or its affiliates. All rights reserved. Page 91 of 177
