Page #99 background imageLoading...
Page #99 background image

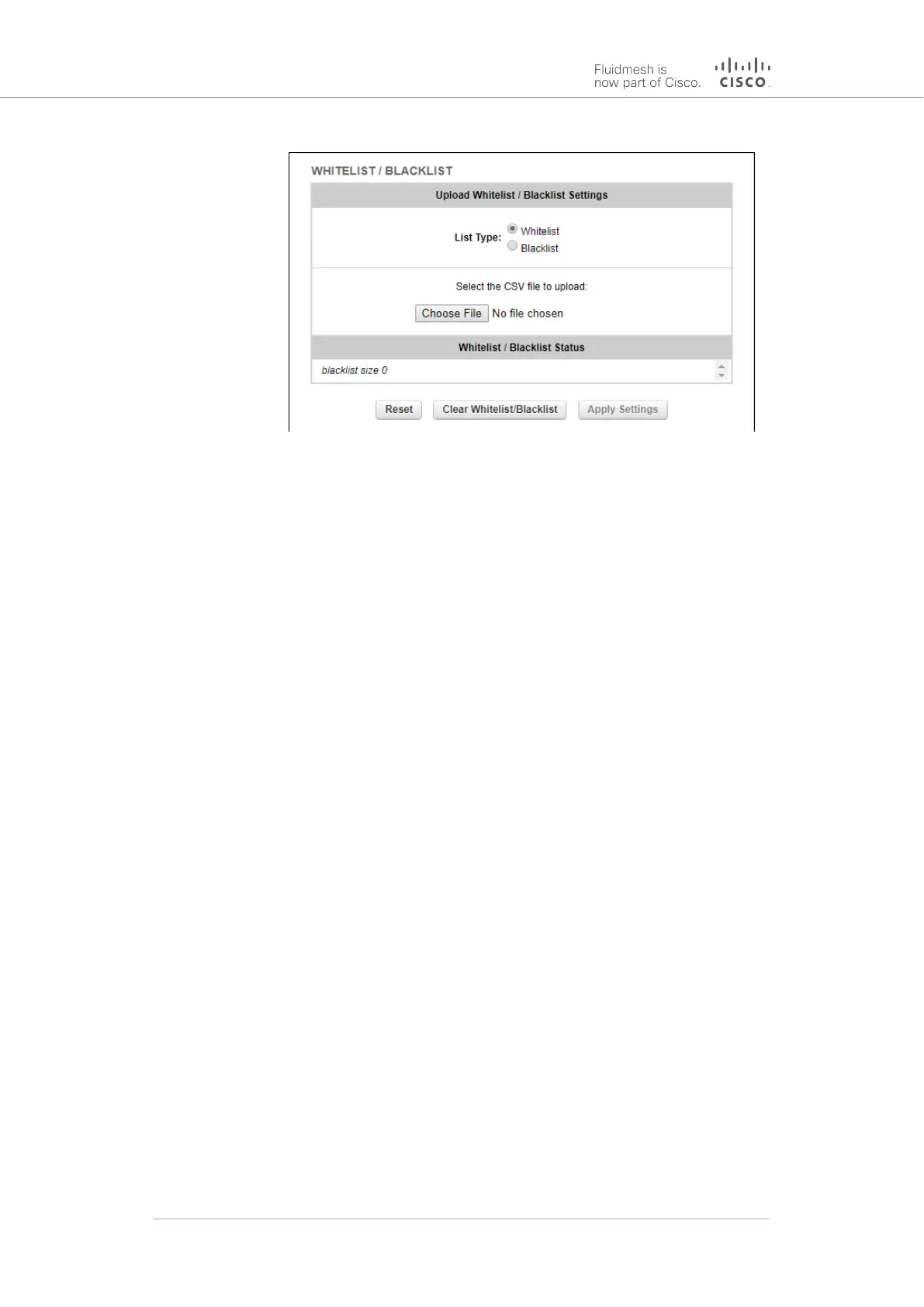

Figure 36. Configurator (Pass list / Block list dialog)
The Pass list / Block list dialog will be shown (Figure 36
(page 99)).
2. Choose the type of list to be uploaded by clicking the correct List
Type: radio button.
3. Click the Choose File button. Upload the saved *.CSV file using
the upload dialog.
The contents of the uploaded *.CSV file will be shown in
the Pass list / Block list Status section.
To apply the list settings contained in the *.CSV file, click the Apply
Settings button.
To clear the Pass list or Block list settings without deleting the *.CSV file,
click the Clear Pass list or Block list button.
To delete the Pass list or Block list *.CSV file, click the Reset button.
7.6.5. Multicast
Multicast management for mesh network-capable devices
Multicast is a group-communication method in which data transmissions
are addressed simultaneously to more than one destination computer.
Multicast transmissions can be point-to-multipoint, or multipoint-to-
multipoint.
By default, if CCTV cameras and devices that operate in a similar fashion
are linked to a Fluidmesh transceiver unit operating in Mesh Point mode,
the unit forwards all multicast traffic generated by the cameras to the
closest Mesh End unit in the wireless network.
Cisco Ultra-Reliable Wireless
Backhaul FM4200 Mobi
© 2020 Cisco and/or its affiliates. All rights reserved. Page 99 of 177
