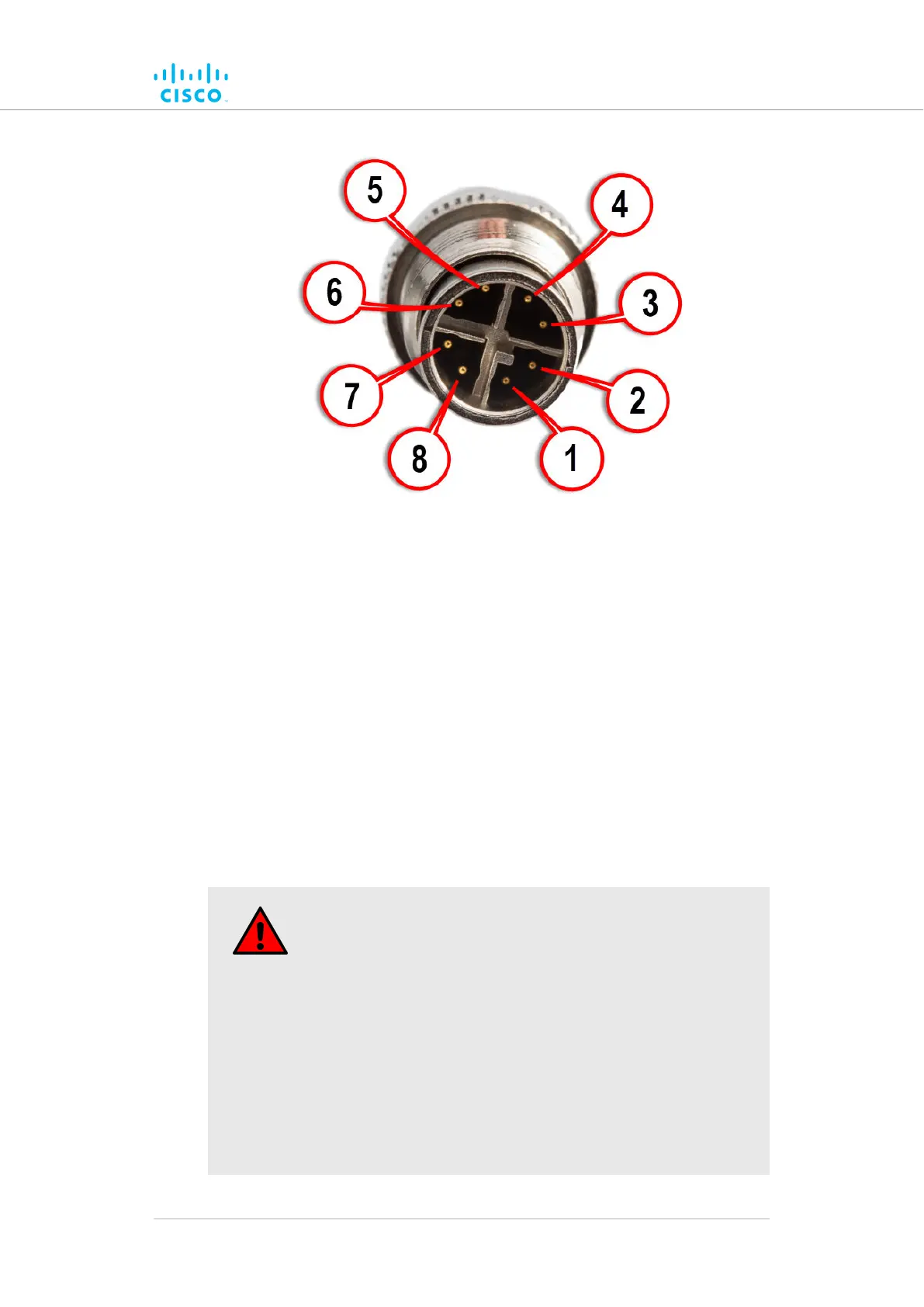

• Terminal 1 of M12X (Orange wire with white tracer) to terminal 1 of
RJ45.
• Terminal 2 of M12X (Orange wire) to terminal 2 of RJ45.
• Terminal 3 of M12X (Green wire with white tracer) to terminal 3 of
RJ45.
• Terminal 4 of M12X (Green wire) to terminal 6 of RJ45.
• Terminal 5 of M12X (Brown wire with white tracer) to terminal 7 of
RJ45.
• Terminal 6 of M12X (Brown wire) to terminal 8 of RJ45.
• Terminal 7 of M12X (Blue wire with white tracer) to terminal 5 of
RJ45.
• Terminal 8 of M12X (Blue wire) to terminal 4 of RJ45.
XCO / SFP / SFP+
WARNING
If a Cisco device is fitted with an XCO-type fiber-optic
module, it is a Class 1 laser product. It makes use of fiber-optic
technology, including laser-emitting components.
Do not look directly at the input/output end of any XCO / SFP
connector, or at the input/output end of any fiber-optic cable.
Fiber-optic systems frequently use high-intensity laser light that
may cause temporary or permanent blindness.
For additional guidance regarding the safe use of laser-based
and LED-based fiber-optic technology, refer to ANSI Z136.2
(Safe Use of Optical Fiber Communication Systems Utilizing
Laser Diode and LED Sources).
Hardware installation
