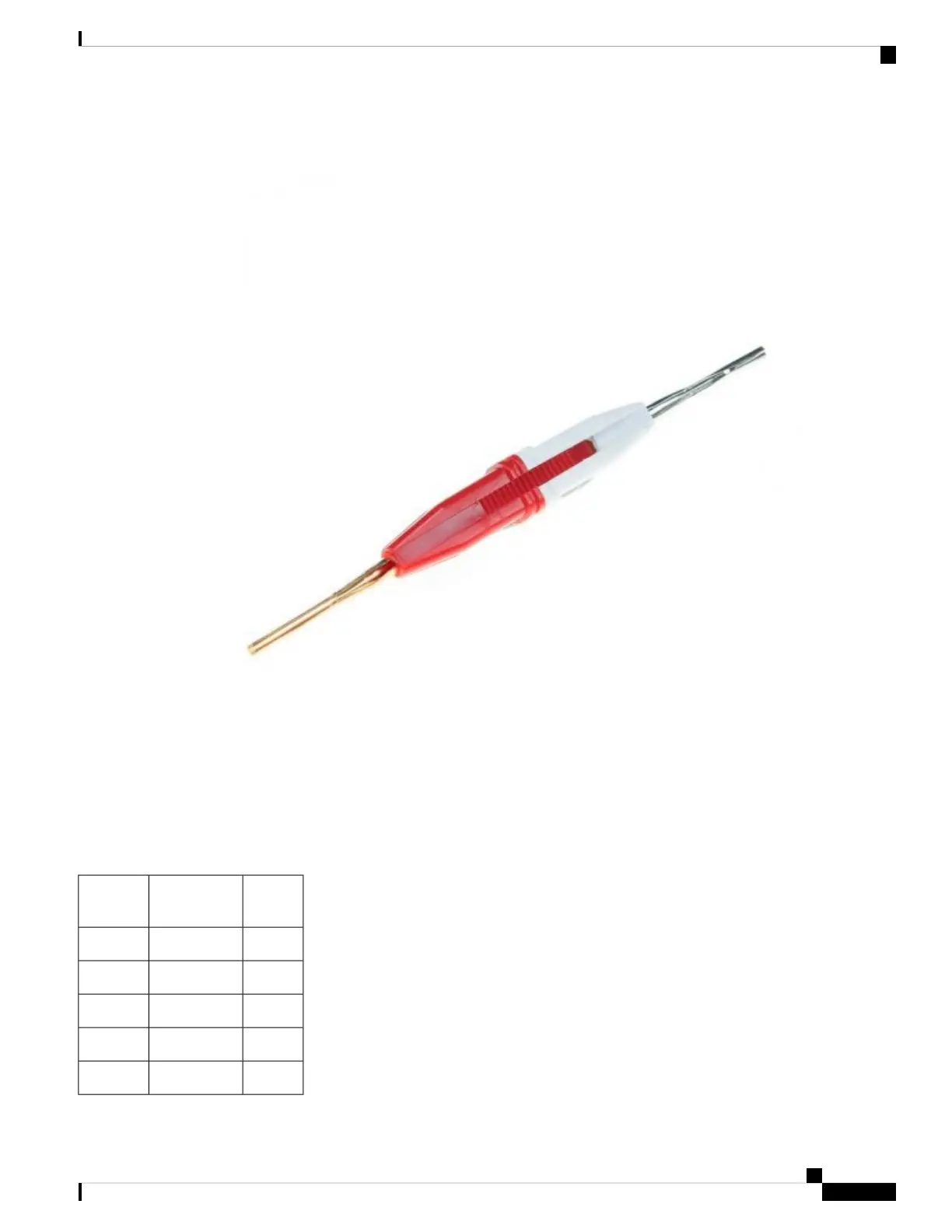

Figure 47: Pinning Tool
There is a very good video on the use of a pinning tool that is found here .
The proper pinouts for a serial port are found in Table 21: RJ45 to DB9 Male Adapter, on page 73 and Table
22: RJ45 to DB9 Female Null Modem Adapter, on page 74.
Table 21: RJ45 to DB9 Male Adapter
DB9
Pins
Wire ColorRJ-45
Pins
6Blue1
1Orange2
4Black3
5Red4
2Green5
IR1101 Industrial Integrated Services Router Hardware Installation Guide
73
Connecting the Router
