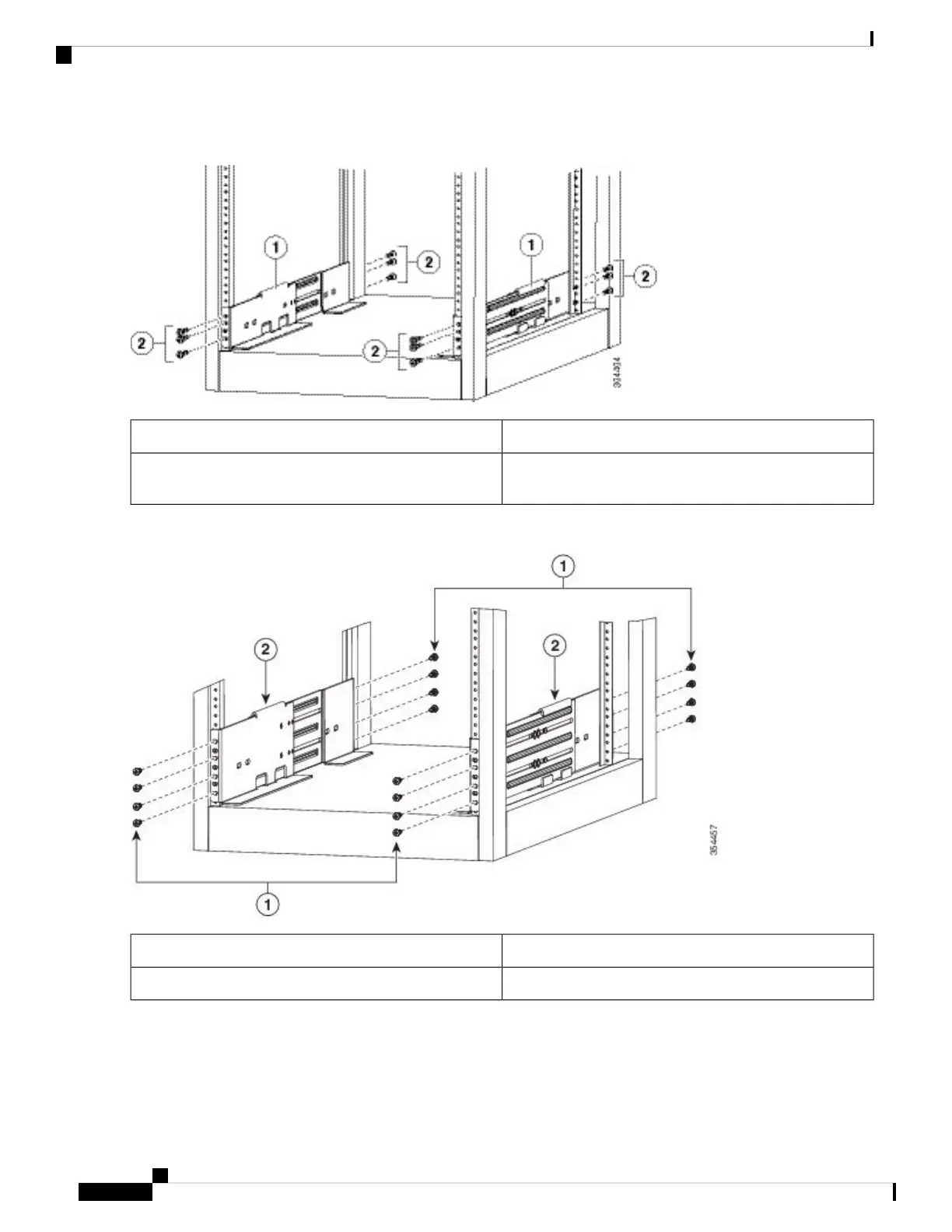

Figure 32: Attaching Bottom-Support Rails to a Rack - Cisco MDS 9710 Chassis
Adjustable bottom-support rails (2)1
M6 x 19 mm (or 12-24 x 3/4 in.) Phillips screws (6 to 8 per
rail).
2
Figure 33: Attaching Bottom-Support Rails to a Rack - Cisco MDS 9718 Chassis
M6 x 19 mm (or 12-24 x 3/4 in.) Phillips screws (8 per rail)1
Adjustable bottom-support rails (2)2
At least three of the screw holes on each end of the bottom-support rail align to the mounting rail. Use at
least three screws (four if possible) on each end of each bottom support rail.
Note
Cisco MDS 9700 Series Switches Hardware Installation Guide
84
Installing the Cisco MDS 9700 Series Switches
Attaching Bottom-Support Rails to a Four-Post Rack
