Transmit and Receive Wavelength
(nm)
Receive Power (dBm)Transmit Power (dBm)Transceiver TypeProduct Number
Ten lanes: 850 to 860 nm2.4 (maximum per
lane)–9.5 (minimum per
lane)
–1.0 (maximum per
lane)–7.6 (minimum per
lane)
100GBASE-SR10CPAK-100G-SR10
Table 37: Environmental and Power Specifications for CPAK Transceivers
SpecificationParameter
–40 to 185°F (–40 to 85°C)Storage temperature
32 to 158°F (0 to 70°C)Operating temperature
40-Gigabit CFP Transceivers
The following 40-Gigabit CFP transceivers are used with the M2-Series 100-Gigabit I/O modules
(N7K-M202CF-22L):
• CFP-40G-SR4
• CFP-40G-LR4
Figure 145: CFP Transceivers, on page 208 identifies the major features of these transceivers. For the cable
specifications that apply to these transceivers, see Table 38: Cable Specifications for the CFP Transceivers,
on page 209. For the optical specifications, see Table 39: CFP Transceiver Optical Transmit and Receive
Specifications, on page 209. For the environmental specifications, see Table 40: Environmental and Power
Specifications for CFP Transceivers, on page 209.

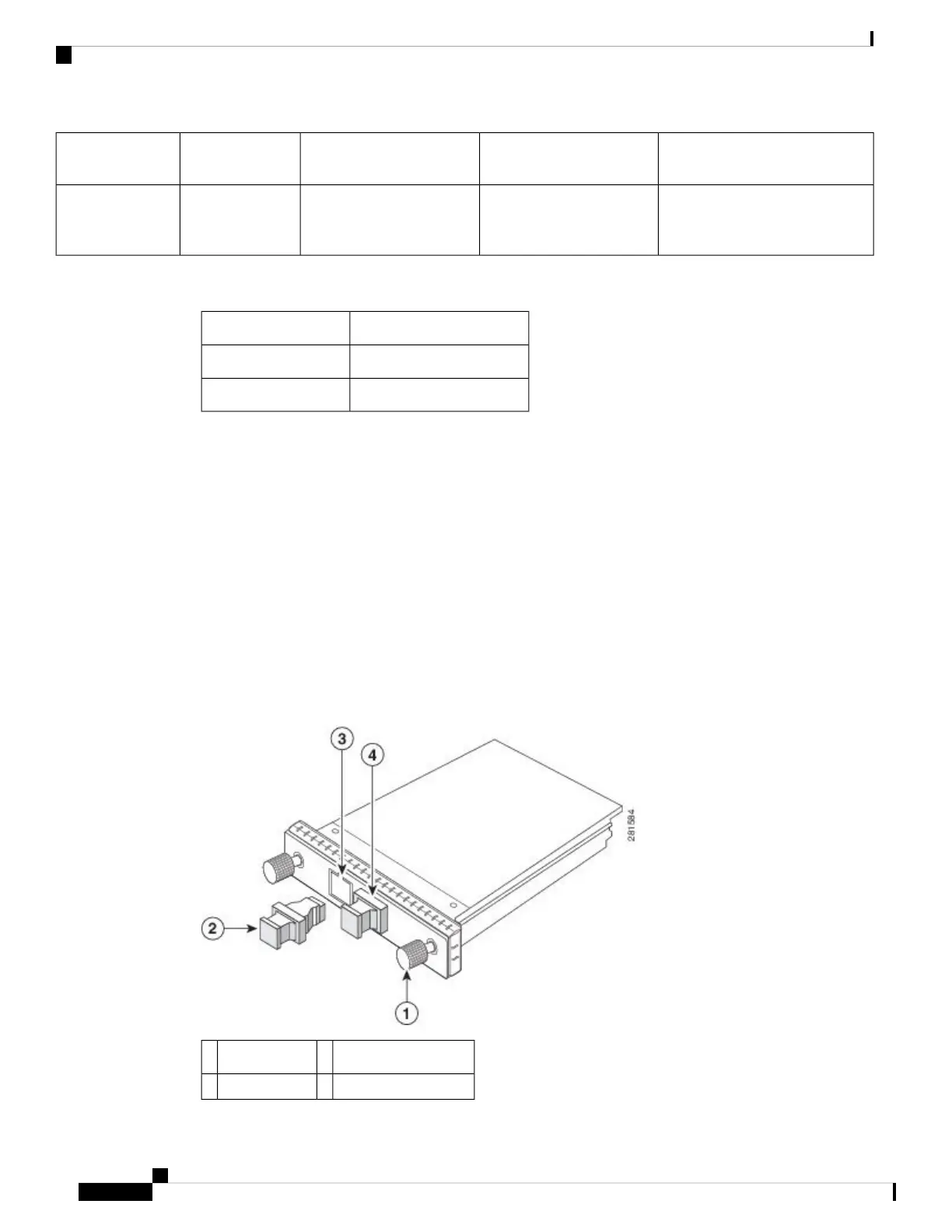

Figure 145: CFP Transceivers
Transmit optical bore3Thumb screws1
Receive optical bore4Dust plug2
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
208
Transceivers and Module Connectors
40-Gigabit CFP Transceivers
