Cisco Nexus 7004 - Cisco Nexus 7009 Bottom Support Kit; Cisco Nexus 7009 Center-Mount Kit

Cisco Nexus 7009 Center-Mount Kit
The Cisco Nexus 7009 Center-Mount Kit is not included in the Cisco Nexus 7009 accessory kit, but, if you
are centering the Cisco Nexus 7009 chassis on a two-post rack, you must order this kit (N7K-C7009-CMK)
when you order the switch. Table 58: Cisco Nexus 7009 Center-Mount Kit (N7K-C7009-CMK) , on page 237
lists the contents for this kit.
Table 58: Cisco Nexus 7009 Center-Mount Kit (N7K-C7009-CMK)
QuantityDescription
1 kitCenter-Mount Kit includes the following parts:
2 per kit• Center-mount rack mounting brackets (right and left
brackets)
2 per kit• Center-mount bottom support rails (right and left rails)
1 per kit• Crossbar
20 per kit• 12-24 x 3/4-in. Phillips screws
20 per kit• M6 x 19-mm Phillips screws
2 per kit• M4 x 8-mm screws
Cisco Nexus 7009 Bottom Support Kit
The Cisco Nexus 7009 Bottom Support Kit is included in the Cisco Nexus 7009 Accessory Kit for use in
mounting the front of the chassis to a two-post or four-post rack. If you need to replace these parts, you can
order this kit by using part number N7K-C7009-BSK. Table 59: Cisco Nexus 7009 Bottom Support Kit
(N7K-C7009-BSK), on page 237 lists and illustrates the contents for this kit.

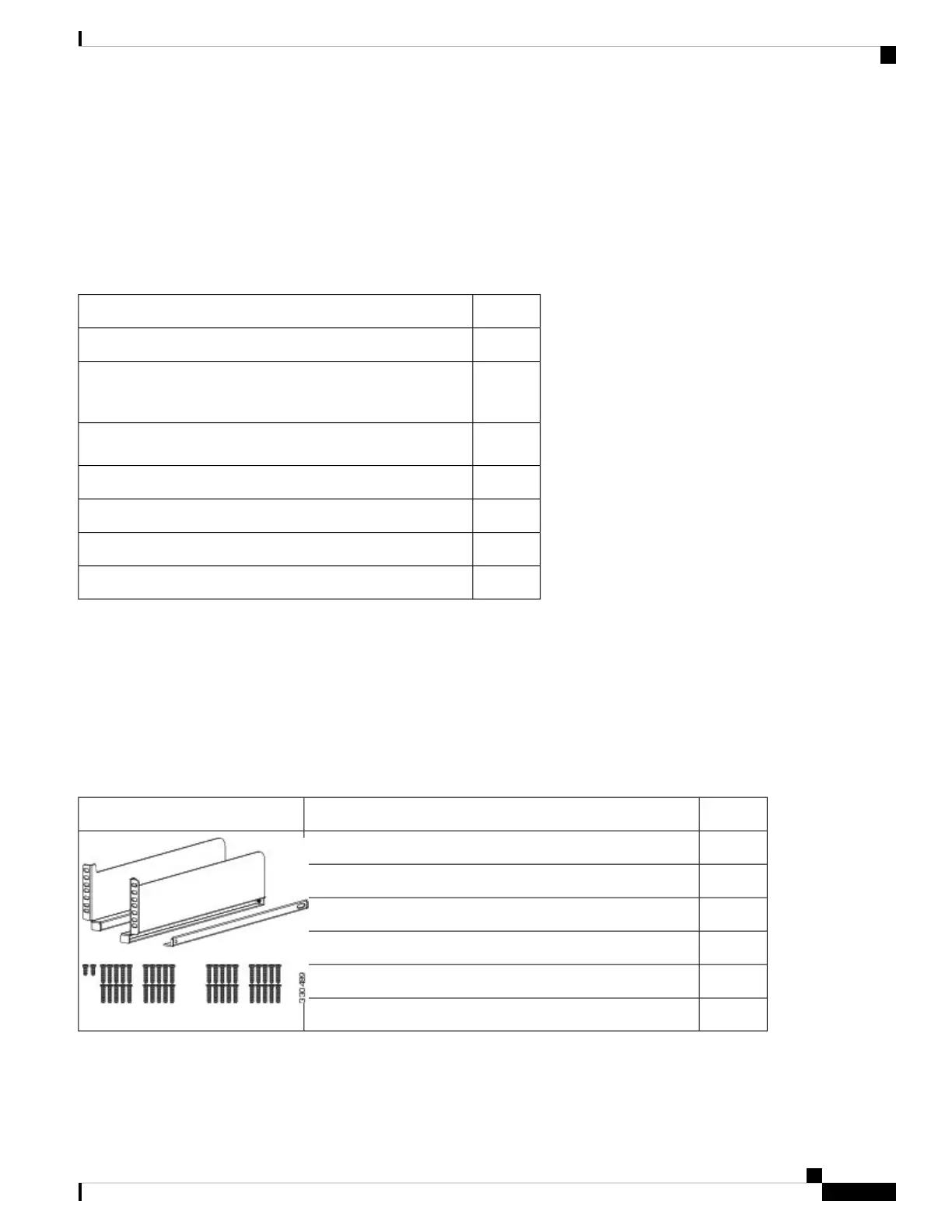

Table 59: Cisco Nexus 7009 Bottom Support Kit (N7K-C7009-BSK)
QuantityDescriptionIllustration
1 kitFront-mount Bottom Support Kit includes the following parts:
2 per kit• Front-mount bottom support rails (right and left rails)
1 per kit• Crossbar
20 per kit• 12-24 x 3/4-in. Phillips screws
20 per kit• M6 x 19-mm Phillips screws
2 per kit• M4 x 8-mm Phillips screws
