1000BASE-T and 1000BASE-X SFP Transceivers
The 1000BASE-T and 1000BASE-X SFPs are hot-swappable transceivers that you plug into SFP-compatible

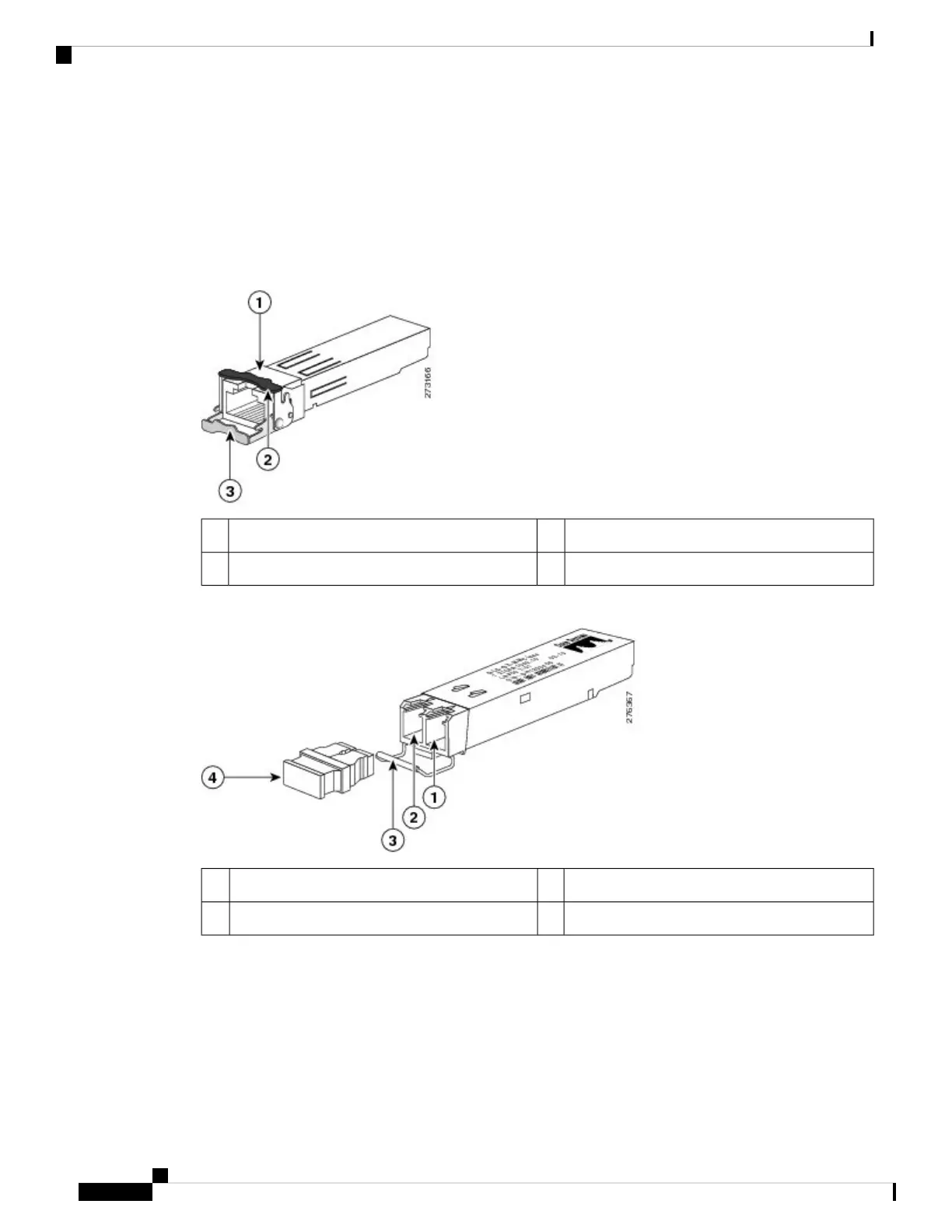

I/O modules. The 1000BASE-T transceiver, shown in Figure 151: 1000BASE-T SFP Transceiver, on page
226, provides an RJ-45 connection for copper cables, and the 1000BASE-X transceiver, shown in Figure 152:
1000BASE-X SFP Transceiver, on page 226, provides an optical connection for fiber-optic cables.
Figure 151: 1000BASE-T SFP Transceiver
Bail clasp shown in the open (unlocked) position3RJ-45 connector1
Bail clasp shown in the closed (locked) position2
Figure 152: 1000BASE-X SFP Transceiver
Bail clasp3Receive optical bore1
Dust plug4Transmit optical bore2
For the 1000BASE-T and 1000BASE-X transceiver cable specifications, see Table 54: Cable Specifications
for 1000BASE-X and 1000BASE-T SFP Transceivers , on page 227.
