Cisco ONS 15454 M6 User Manual

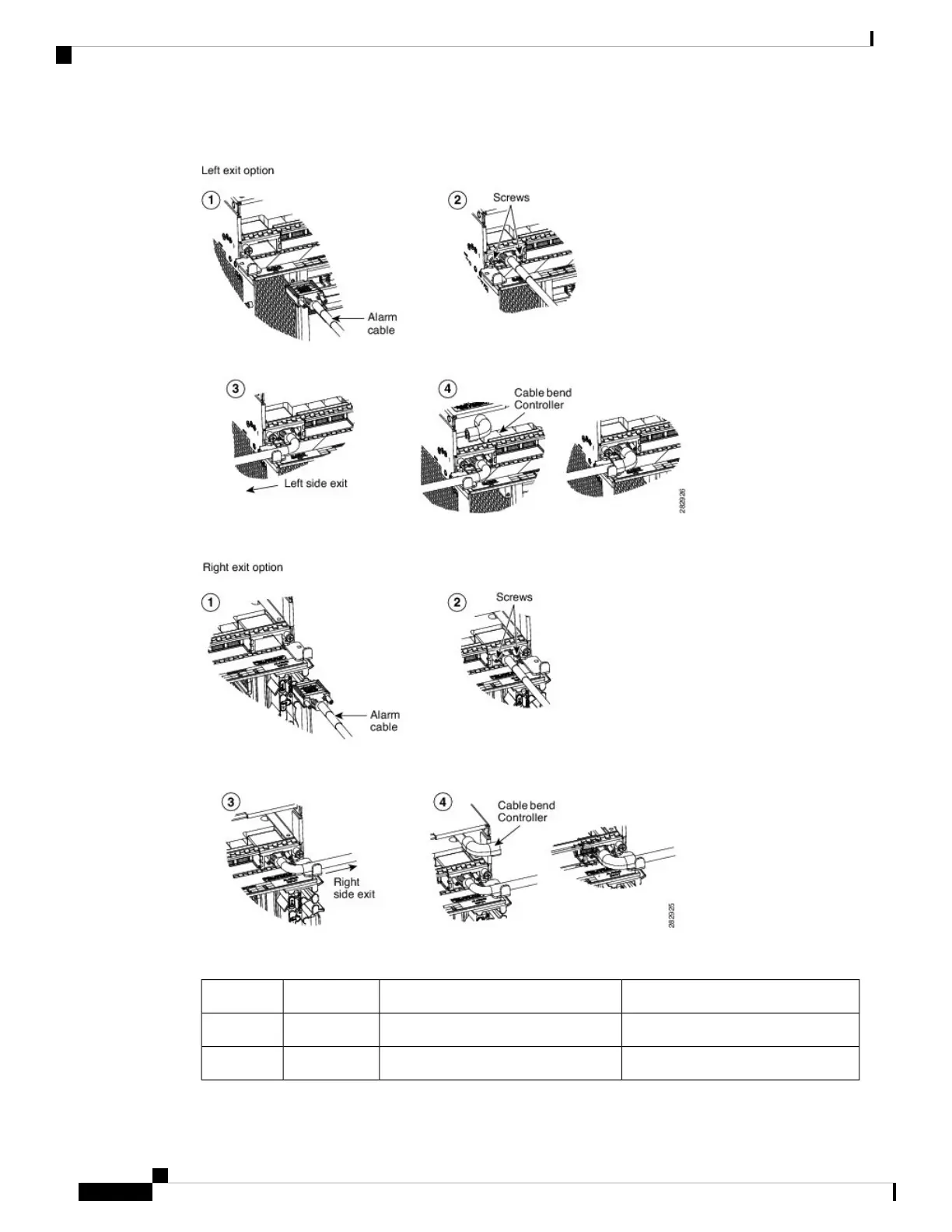

Figure 98: Installing the ECU Alarm Cable—Left Exit Option
Figure 99: Installing the ECU Alarm Cable—Right Exit Option
Table 5: SCSI Alarm Cable (15454-M-ALMCBL) and SCSI Alarm Patch Cable (15454-M-AEXPCBL) Connector Details
Input-Output Alarms - Left ConnectorInput Alarms - Right Alarm ConnectorColor CodePin Number
Minor Audible Alarm +Input Pair #1 +Black/Brown1
Major Audible Alarm +Input Pair #2 +Black/Red2
Installing the ONS 15454 M6 Shelf
130
Installing the ONS 15454 M6 Shelf
DLP-G295 Install Alarm Wires in ONS 15454 M6

Cisco ONS 15454 M6 Specifications

General

Slots	6
Form Factor	Rack-mountable
Management	Cisco Transport Controller (CTC)
Network Interfaces	Ethernet, SONET/SDH, OTN
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Relative Humidity	5% to 95% non-condensing
Supported Services	SONET/SDH, Ethernet, OTN
