Setting up the Interfaces of the Gateway
Setting up the LAN Interface
28 SRP 521 VoIP Gateway Administration Guide
3

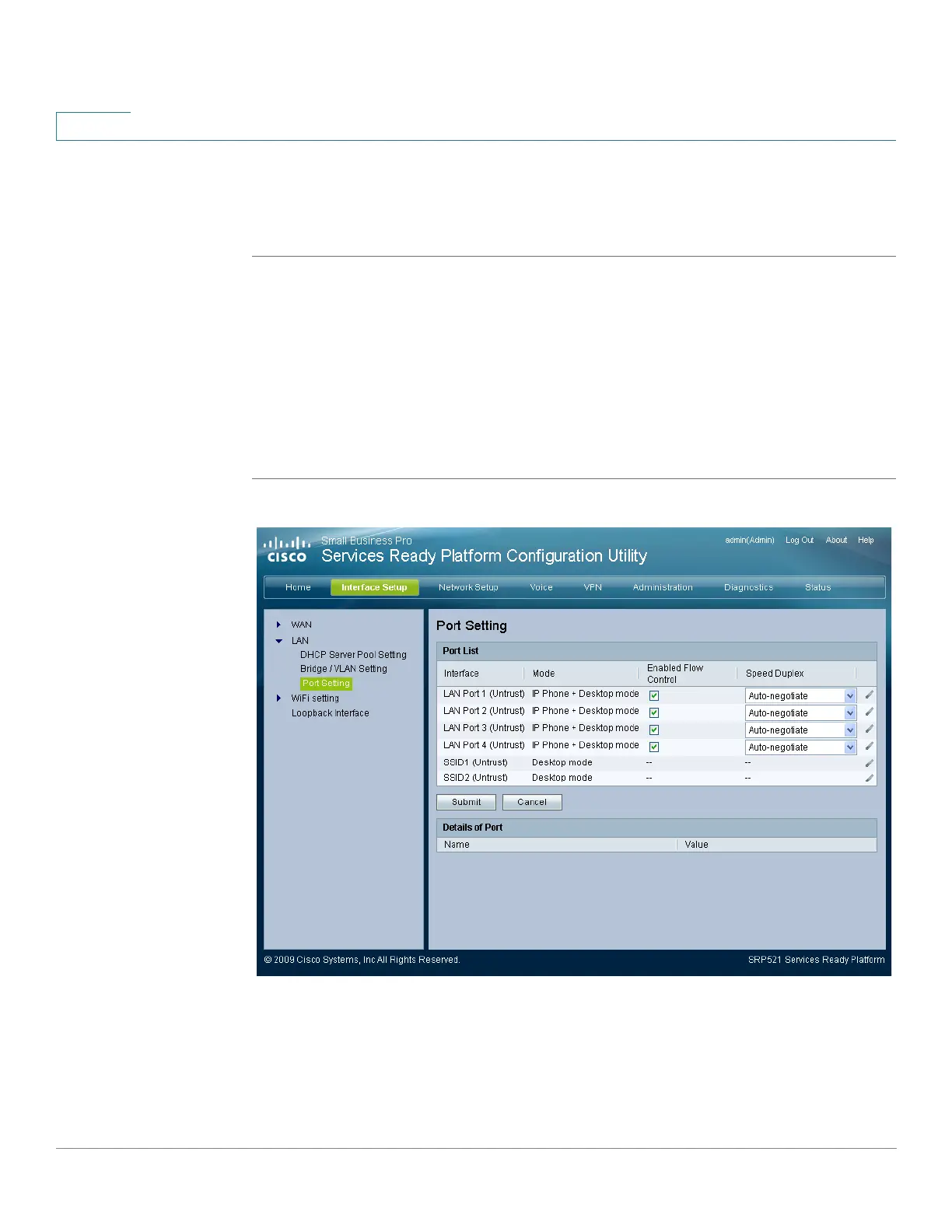

Port Setting
Port settings are configured on this page. You can also see details about the ports.
STEP 1 Click Interface Setup on the tab and then click LAN in the navigation pane. Click
Port Setting. The Port Setting page appears.
STEP 2 You can edit a port entry by clicking the edit icon. After you click the edit icon, the
Port Edit page opens. Make any necessary changes and click Submit to save your
settings.
STEP 3 If necessary, change the flow control or duplex speed settings for each interface.
STEP 4 Click Submit to save your settings.
