Chapter 1 Overview

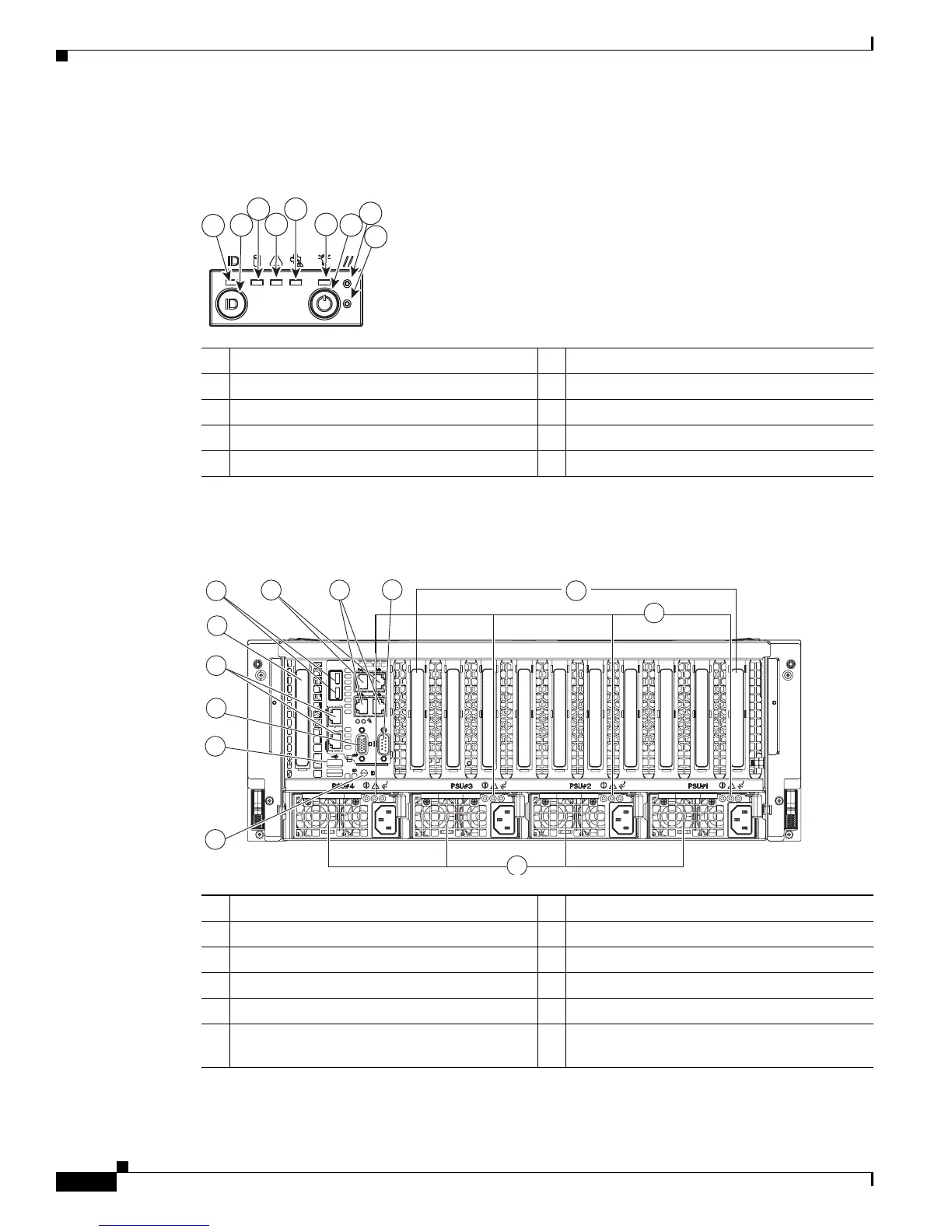

Figure 1-2 shows the operations panel LEDs and buttons.
Figure 1-2 Operations Panel LEDs and Buttons
Figure 1-3 shows the rear panel features.
Figure 1-3 Rear Panel Features
1 ID LED 2 ID button
3 HDD fault LED 4 System health LED
5 Fan fault LED 6 Power status LED
7 Power button 8 Reset button
9 NMI button
12 7
8
9
35
197617
4 6
1 Power supplies, up to four 2 ID button
3 USB ports, two total 4 VGA connector
5 10GBase-T LOM ports, two total 6 SAS riser slot
7 10G SFP+ LOM ports, two total 8 1G LOM ports, two total
9 10/100 Management ports M1 and M2 10 Serial connector
11 PCIe slots 1 through 10 (left to right as
shown)
12 Power supply LEDs
