Replacing the Front Mezzanine Module
The front mezzanine module is a drive cage that contains the compute node's storage devices. The front
mezzanine storage module can contain any of the following storage configurations:

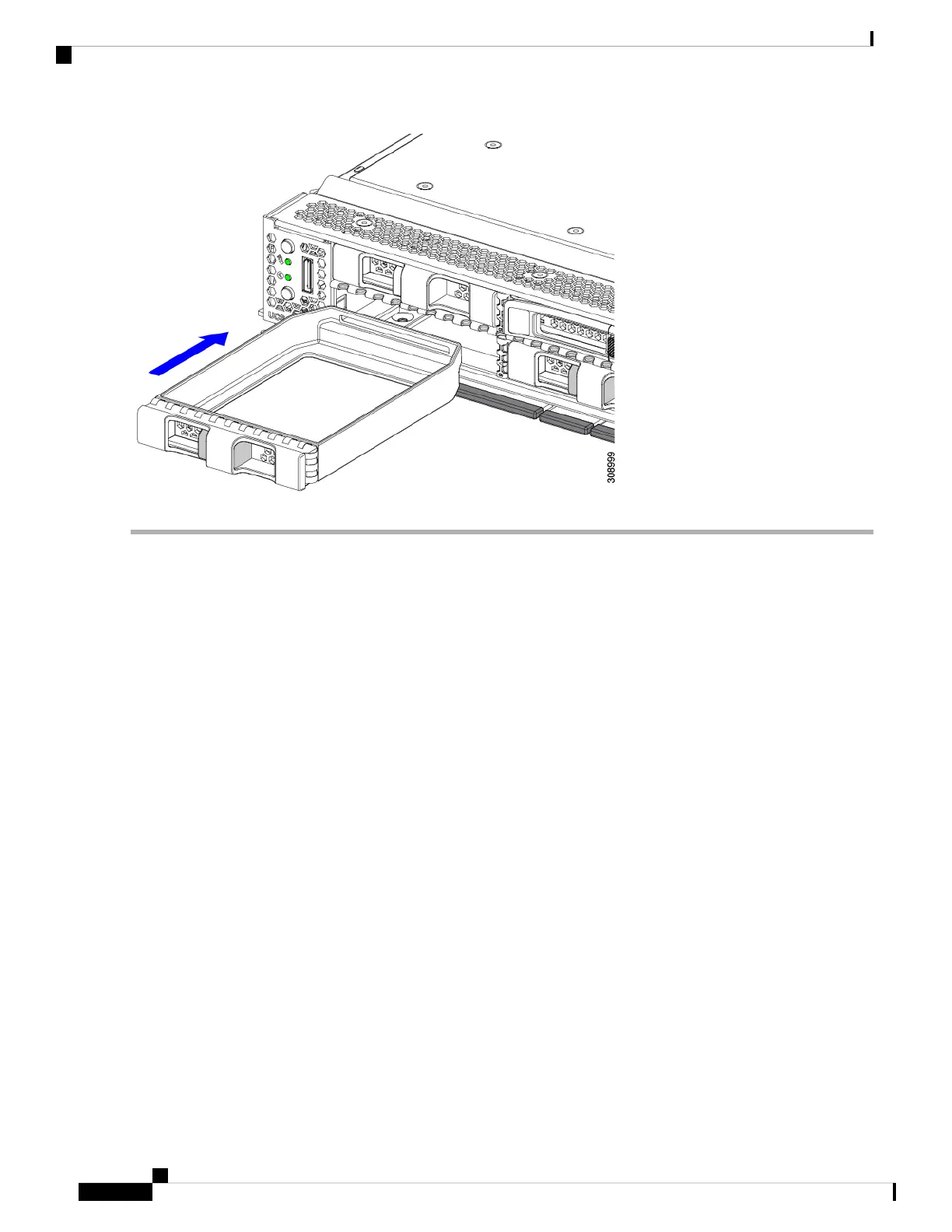

• NVMe drives
• SAS/SATA drives
In the front mezzanine slot, the server can use one of the following front storage module options:
• A front mezzanine blank (UCSX-X10C-FMBK) for systems without local disk requirements.
• Compute Pass Through Controller (UCSX-X10C-PT4F): supports up to six hot pluggable 15mm NVMe
drives directly connected to CPU 1. RAID capability which is supported with Intel Virtual RAID on
CPU (VROC).
• MRAID Storage Controller Module (UCSX-X10C-RAIDF):
• Supports a mixed drive configuration of up to six SAS, SATA, and NVMe (maximum of four)
drives.
• Provides HW RAID support for SAS/SATA drives in multiple RAID groups and levels.
• NVMe drives support RAID with Intel Virtual RAID on CPU (VROC) in slots 1 to 4 with direct
connections to CPU 1.
• The front mezzanine module also contains the SuperCap module. For information about replacing
the SuperCap module, see Replacing the SuperCap Module, on page 27.
Cisco UCS X210c M6 Compute Node Installation and Service Note
22
Servicing a Compute Node
Replacing the Front Mezzanine Module
