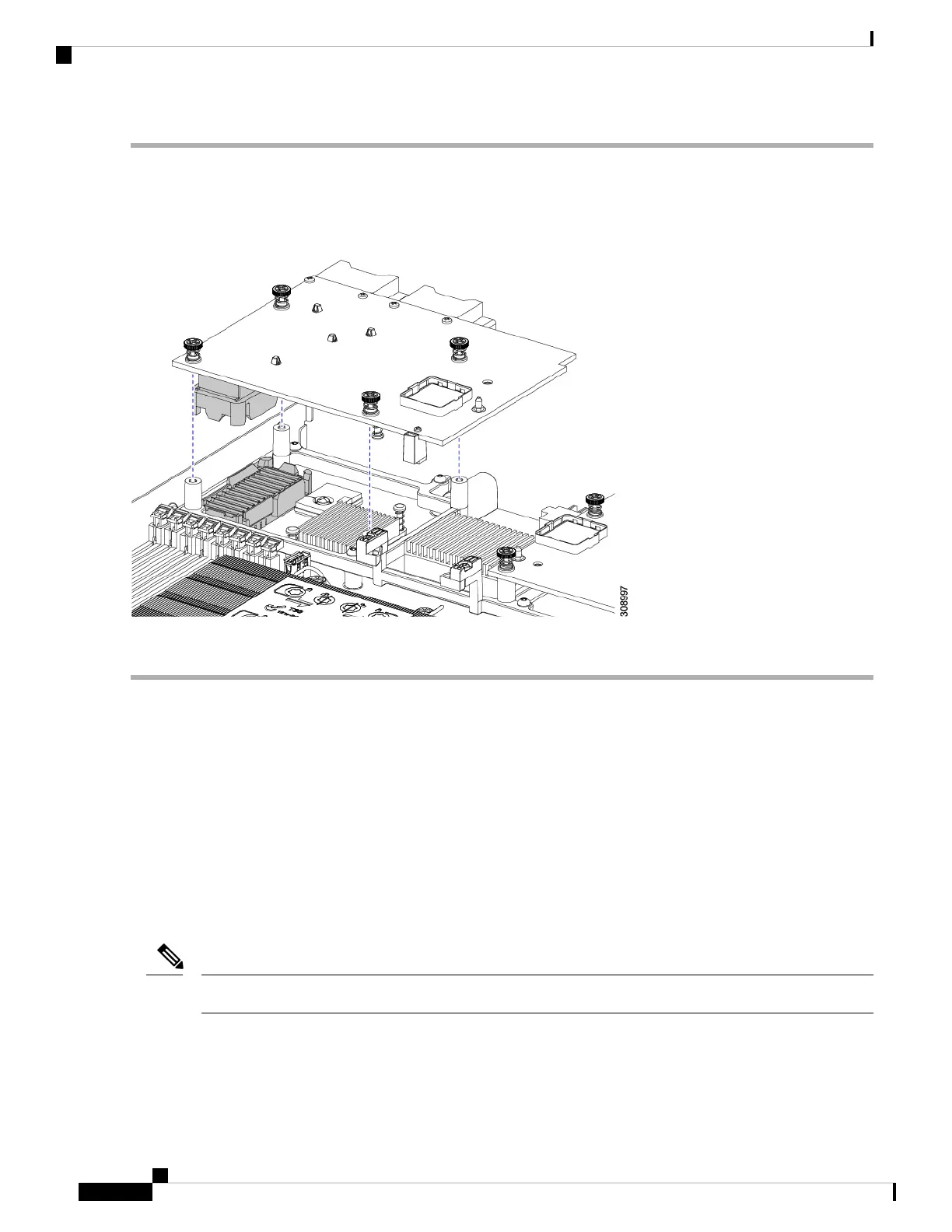

Step 1 Orient the VIC with the captive screws facing up and the connectors facing down.
Step 2 Align the VIC so that the captive screws line up with their threaded standoffs, and the connector for the bridge card is
facing inward.
Step 3 Holding the VIC level, lower it and press firmly to seat the connectors into the sockets.
Step 4 Using a #2 Phillips screwdriver, tighten the captive screws to secure the VIC to the compute node.
What to do next
• If the mLOM card is already installed, install a bridge card. Go to Installing a Bridge Card, on page 58.
• If not, install the mLOM, which must be installed before the bridge card can be attached. Go to Installing
an mLOM Card, on page 55.
Installing a Bridge Card
The Cisco UCS VIC 14000 Series Bridge is a physical card that provides data connection between the mLOM
and VIC. Use this procedure to install the bridge card.
The bridge card installs upside down so that the connectors meet with the sockets on the MLOM and VIC.
Note
Cisco UCS X210c M6 Compute Node Installation and Service Note
58
Servicing a Compute Node
Installing a Bridge Card
