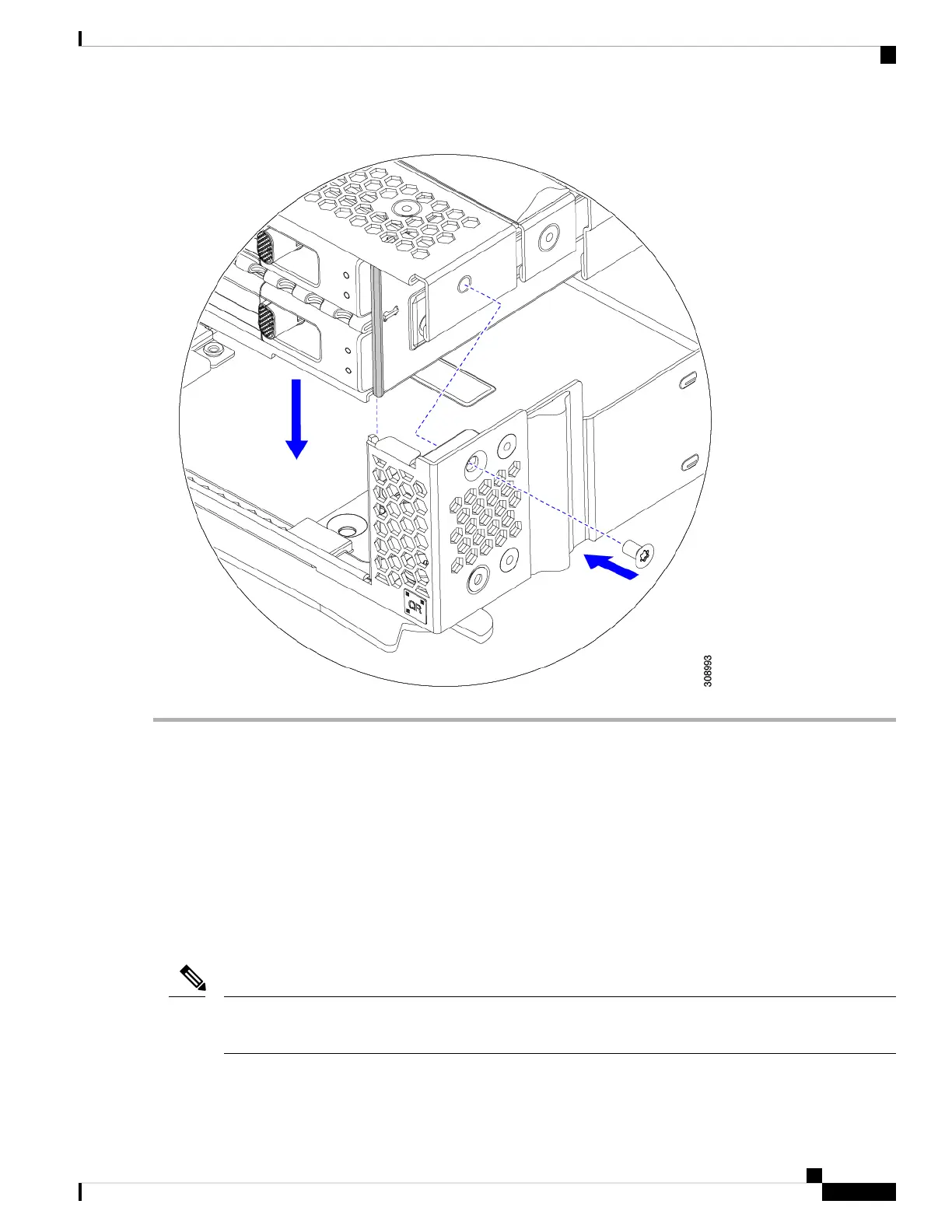

b) Using a T8 screwdriver, insert and tighten the four screws, two on each side of the sever node.
What to do next
If you removed the drives from the front mezzanine module, reinstall them now. See Installing a Drive, on
page 19.
Replacing the SuperCap Module
The SuperCap module (UCSB-MRAID-SC) is a battery bank which connects to the front mezzanine storage
module board and provides power to the RAID controller if facility power is interrupted. The front mezzanine
with the SuperCap module installed is UCSX-X10C-RAIDF.
The SuperCap module is only needed when the MRAID Storage Controller module (UCSX-C10C-RAIDF)
is installed.
Note
Cisco UCS X210c M6 Compute Node Installation and Service Note
27
Servicing a Compute Node
Replacing the SuperCap Module
