Citizen CL-E321 User Manual

69
——
3. Enter your user name and password.
The default authentication credentials for the Operator role are as follows.
 User name: Operator
 Password: Operator
The default authentication credentials for the Administrator role are as follows.
 User name: Admin
 Password: Admin
The user name and password for the Operator and Administrator roles can be changed in the
User Settings menu. User names and passwords can contain up to 20 single-byte, alpha-
numeric characters and symbols.
After successful authentication, the Home screen for the Operator or Administrator role ap-
pears.

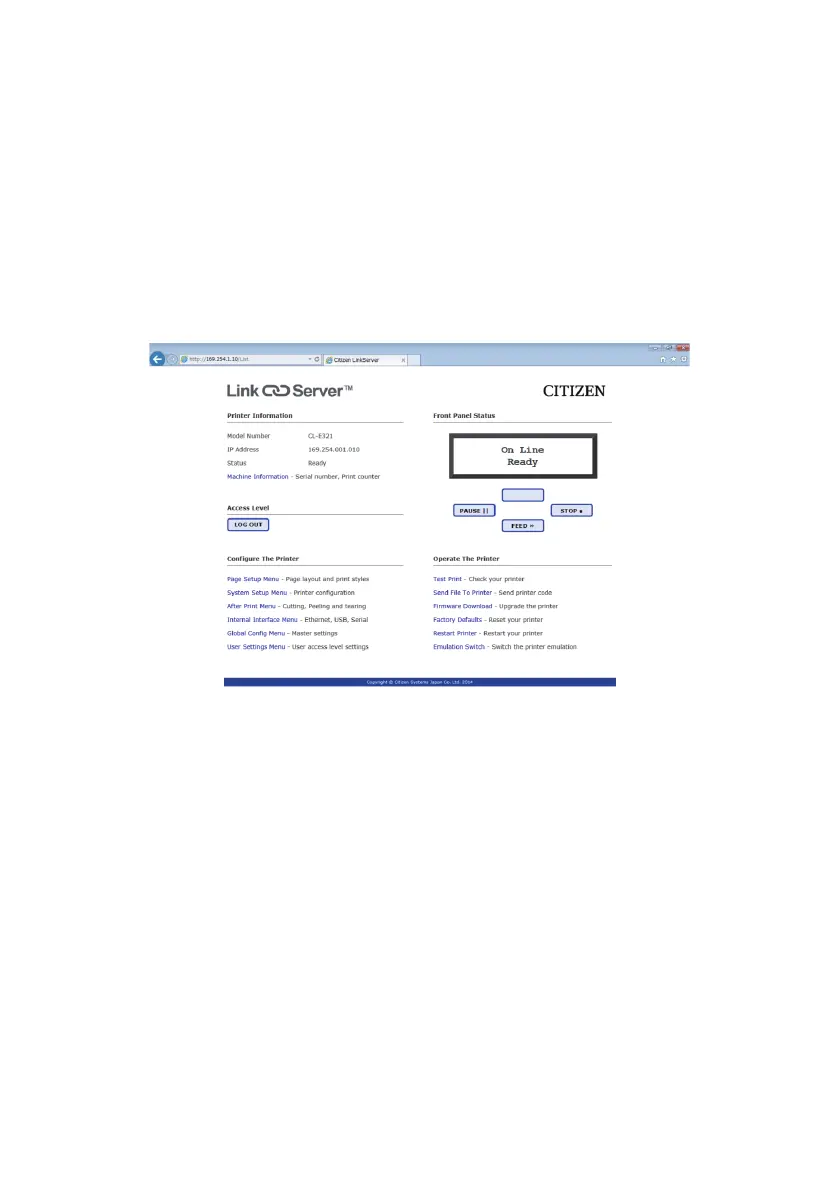

Administrator Home Screen
The menus that appear for the User and Operator roles can be changed from the User Set-
tings menu.
4. Press the Menu button on the Home screen to perform printer operations.
 Printer Information: Displays printer information.
 Congure The Printer: Provides access to the same settings as congured with LabelPrint-
erUtility.
 Operate The Printer: Used to operate the printer.
5. Once you are nished, press the [LOG OUT] button to log out.
The Home screen for the User role appears again after logging out.

Citizen CL-E321 Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Power Supply	100-240V AC, 50/60 Hz
Max Print Width	4.1 inches (104 mm)
Media Sensor	Transmissive and reflective sensor
Interface	USB, Serial (RS-232)
Media Width	1.97 to 4.33 inches (50 to 110 mm)
Supported Barcode Types	Code 39, Code 128, ITF, Codabar, UPC-A, UPC-E, EAN-8, EAN-13, POSTNET
Supported Media Types	Continuous, Die-cut
Media Thickness	0.0635 – 0.254 mm (2.5 - 10 mil)
Print Speed	Up to 8 inches per second
