- 33 -
11.6. Negative
T
his function is designed for changes of displaying.
12. FUNCTIONS IN USING RS 232 PORT
User can set th
e parameters necessary for correct communication balance with computer
or printer.

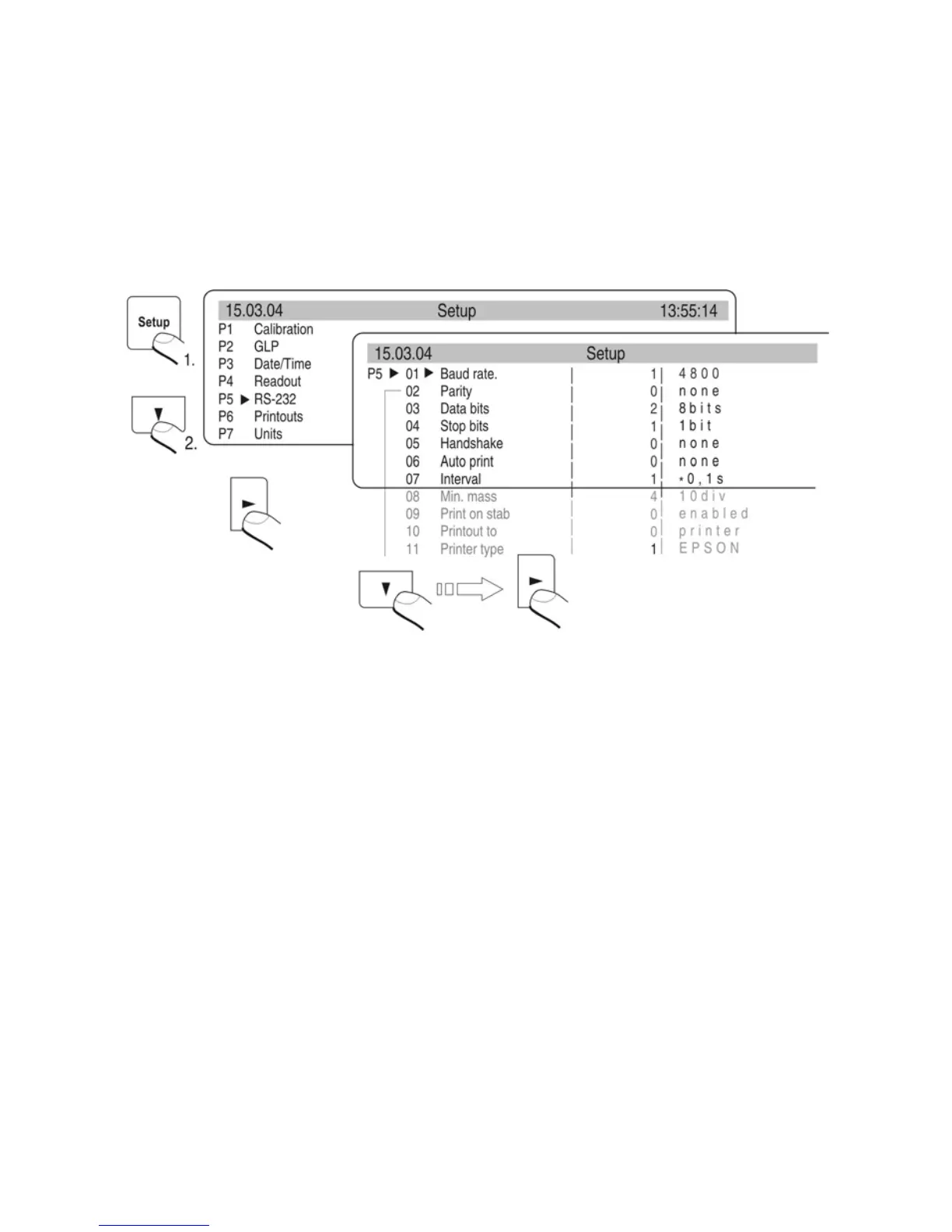

Draw. 23. Submenu RS 232 -setting
01 Baud rate / 0 : 2400 1 : 4800 2 : 9600 3 : 19200
02 Parity / 0 : no 1 : parity 2 : non parity
03 Date bits / 1 : 7 bits 2 : 8 bits
04 Stop bits / 1 : 1 bit 2 : 2 bits
05 Tramsmission control / 0 : no 1 : RTS/CTS 2 : XON/XOFF
06 Automatic printout / 0 : no 1 : continuous 2 : with brake 3 : when stable
07 Interval Interval the balance sends the result from the display. It is
counted on base on form for the parameter x 0.1 s = time
yestu-interval). Value from 1 to 9999 can be written.
08 Min mass Min mass for automatic work. RS 232. Following
measurement is sent when the result is lower than min aftre
taking the load off the pan.
09 Print only stable 0 : no 1 : yes
10 Type of printer Epson or standard
11 Printout cut for EPSON printers only with this function. For YES function
the paper is cut automatically.
After setting correct values return to weighing mode as it is described in p. 6.1.2 of the
manual.
13. PRINTOUTS
T
his function is used to make not standard printouts and select type of printout. Precise
description for printouts is described in p.17.
