17.2. Checkweighing
T
he sample is weighed precisely when the limits of weighing are settled. The process is
shown (side graphs) and controled.
The function activation:

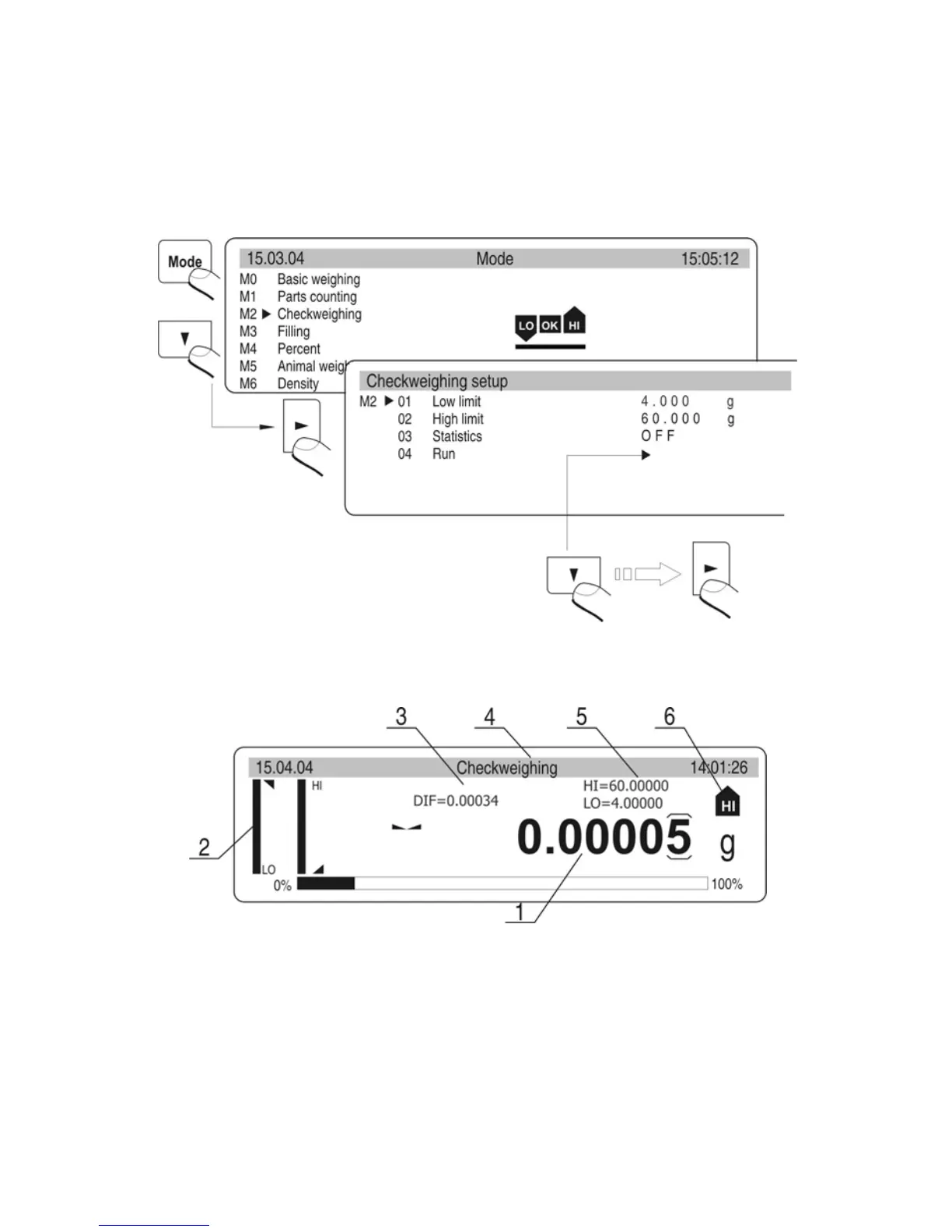

Draw. 33. Checkweighing – the function activation
Display
Draw. 34. Checkweighing –display view
1 – result
2 – bargraphs
3 – function name
4 – difference between mass of weighed load and middle of tolerance field
(HI/LO)
5 – value of low (LO) and (HI) high limit
6 – graphs which presents weighing range
